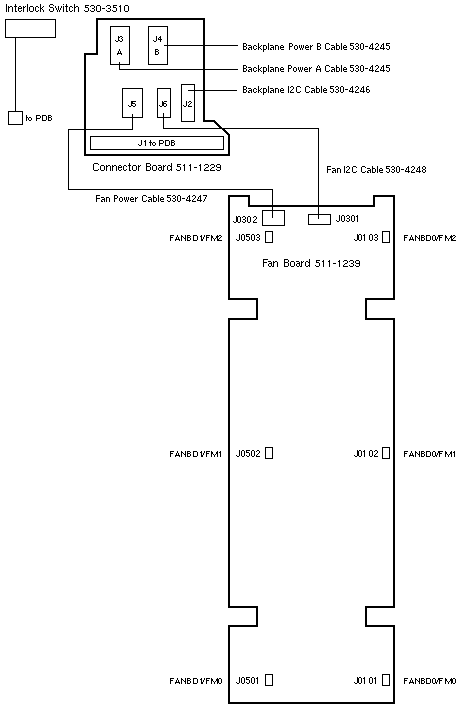

Front Connector Assembly

<a href="../../Systems/SupportHeaders/IO_SunFireX4275_Connector_Assy.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

511-1239 541-3394 511-1229 541-3385

Fan Board Fan Board FRU Connector Board Connector Board FRU
w Interlock Switch

Sun Fire X4275 Codename: Lynx 2U Hyde
Oracle Exadata V2 Codename: Quicksilver

References

Sun Fire X4275 Server Documentation.
