Sun Fire X4140 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
150-4277
[C]
3V Lithium coin battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
6335A
[S]
Single Processor HyperTransport Terminator
310-0128
Opteron Heatsink
n/a
371-2481
HyperTransport Termination Adapter
n/a
X4285A
[S]
540-7602 [F]
HyperTransport Bridge Card & Risers for Quad Core CPU
n/a
Hyper-Transport Bridge Risers (×2) n/a
Hyper-Transport Bridge Card n/a
X5352A
[S]
2.9GHz Quad-Core AMD Opteron 2389
310-0128
Opteron Heatsink
n/a
371-4641
[F]
2.9 GHz CPU, Opteron 2389 Quad Core, C2 Stepping, 75W
n/a
X5380A
[S]
2.1GHz 6-Core AMD Opteron 2425 HE
310-0128
Opteron Heatsink
n/a
371-4678
[F]
2.1GHz CPU, Opteron 2425 HE 6-Core, D0 Stepping, 55W
n/a
X5381A
[S]
2.4GHz 6-Core AMD Opteron 2431
310-0128
Opteron Heatsink
n/a
371-4680
[F]
2.4 GHz CPU, Opteron 2431 6-Core, D0 Stepping, 75W
n/a
X5382A
[S]
2.6GHz 6-Core AMD Opteron 2435
310-0128
Opteron Heatsink
n/a
371-4681
[F]
2.6 GHz CPU, Opteron 2435 6-Core, D0 Stepping, 75W
n/a
X5392A
[S]
2.2GHz 6-Core AMD Opteron 2427
310-0128
Opteron Heatsink
n/a
371-4679
[F]
2.2 GHz CPU, Opteron 2427 6-Core, D0 Stepping, 75W
n/a
X6300A
[S]
2.6GHz Dual-Core AMD Opteron 2218HE
310-0128
Opteron Heatsink
n/a
371-2684
[F]
2.6GHz AMD Dual Core Opteron 2218HE, F3 Stepping, 68W
n/a
X6301A
[S]
3.0GHz Dual-Core AMD Opteron 2222
310-0128
Opteron Heatsink
n/a
371-2502
[F]
3.0 GHz CPU, Opteron 2222 Dual Core, F3 Stepping, 95W
n/a
X6305A
[S]
2.3GHz Quad-Core AMD Opteron 2356
310-0128
Opteron Heatsink
n/a
371-4042
[F]
2.3 GHz CPU, Opteron 2356 Quad Core, B3 Stepping, 75W
n/a
X6307A
[S]
1.9GHz Quad-Core AMD Opteron 2347HE
310-0128
Opteron Heatsink
n/a
371-4095
[F]
1.9 GHz CPU, Opteron 2347HE Quad Core, B3 Stepping, 55W
n/a
X8252A
[S]
2.3 GHz CPU, Opteron 2376HE Quad Core, 55W
310-0128
Opteron Heatsink
n/a
371-4502
[F]
2.3 GHz CPU, Opteron 2376 HE Quad Core, C2 Stepping, 55W
n/a
X8253A
[S]
2.5GHz Quad-Core AMD Opteron 2380
310-0128
Opteron Heatsink
n/a
371-4432
[F]
2.5 GHz CPU, Opteron 2380 Quad Core, C2 Stepping, 75W
n/a
X8254A
[S]
2.7GHz AMD Quad Core Opteron 2384
310-0128
Opteron Heatsink
n/a
371-4438
[F]
2.7 GHz CPU, Opteron 2384 Quad Core, C2 Stepping, 75W
n/a
n/a
310-0180
Opteron Heatsink
n/a
NOTE: Six-Core Opteron requires Motherboard 540-7952 and X4140 Server Software 3.x.NOTE: Single processor systems can be expanded with a second processor of the identical model/speed only.
Mixing with a different processor is not supported.
Cables
Option #
Manufacturing
Description
Previous
4280A
[S]
596-7335
Internal SAS Cable Option
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm n/a
4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm n/a
4281A
[S]
596-7336
Internal SATA Cable Option
n/a
4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm n/a
4x Mini SATA Cable, SFF-8087 to SFF-8087, 600mm n/a
X311L
[S]
Localized Power Cord Kit - North America/Asia
180-1097
[C] Buy
IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black
n/a
X312E
[S]
Localized Power Code Kit - China
180-1982
[C]
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M
n/a
X312F
[S]
Localized Power Cord Kit - Argentina
180-1999
[C]
IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black
n/a
X312G
[S]
Localized Power Cord Kit - Korea
180-1662
[C] Buy
IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black
n/a
X312L
[S]
Localized Power Cord Kit - Continental Europe
180-1993
[C]
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black
n/a
X314L
[S]
Localized Power Cord Kit - Swiss
7049124 [C]
IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black
180-1994
[C]
X317L
[S]
Localized Power Cord Kit - U.K.
180-1997
[C] Buy
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black
n/a
X332A
[S]
Localized Power Cord Kit - Taiwan
180-2121
[C]
IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black
n/a
X383L
[S]
Localized Power Cord Kit - Danish
180-1995
[C]
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black
n/a
X384L
[S]
Localized Power Cord Kit - Italian
180-1996
[C]
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black
n/a
X386L
[S]
Localized Power Cord Kit - Australian
180-1998
[C]
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black
n/a
n/a
180-1994
[C]
IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black
n/a
n/a
F540-7609 [C]
SAS/SATA Cable Kit [SKU]
n/a
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm n/a
4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm n/a
4x Mini SATA Cable, SFF-8087 to SFF-8087, 600mm n/a
Communication
Option #
Manufacturing
Description
Previous
X1236A-Z
[S]
375-3382
[C]
Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile
n/a
X4217A-Z
[S]
375-3549
[C]
Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile
n/a
X6000A 1
[S]
375-3424
[C]
PCI Express Sun Crypto Accelerator 6000
n/a
1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
501-7797
[F]
8-Slot Disk Backplane, PATA DVD
n/a
n/a
542-0355 [F]
Backplane Retainer Clip Kit
n/a
Black 1U Backplane Retainer Clip n/a
n/a
7051678
[F]
8-Slot Disk Backplane, SATA DVD
511-1283
[F]
Disks
Option #
Manufacturing
Description
Previous
XRA-SS2CF-146G10K
[S]
540-7355 [C]
146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Fujitsu MBB2147RC [MBB2147RCSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
n/a
XRA-SS2CF-73G10K
[S]
540-7354 [C]
73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Fujitsu MAY2073RC [MAY2073RCSUN72G] n/a
Seagate ST973402SS [ST973402SSUN72G] n/a
Fujitsu MBB2073RC [MBB2073RCSUN72G] n/a
Hitachi HUC101473CSS300 [H101473SCSUN72G] n/a
n/a
XRA-SS2CF-73G15K
[S]
540-7361 [C]
73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks
n/a
Seagate ST973451SS [ST973451SSUN72G] n/a
n/a
XRA-ST2CF-32G2SSD
[S]
540-7841 [C]
32GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk) n/a
n/a
XRB-SS2CF-146G10K
[S]
540-7868 [C]
146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9146802SS [ST914602SSUN146G] n/a
Hitachi HUC101414CSS300 [H101414SCSUN146G] n/a
Seagate ST9146803SS [ST914603SSUN146G] n/a
Hitachi HUC103014CSS600 [H103014SCSUN146G] n/a
n/a
n/a
540-7869 [C]
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST9300603SS [ST930003SSUN300G] n/a
Hitachi HUC103030CSS600 [H103030SCSUN300G] n/a
n/a
NOTE: If RAID 1 mirroring is going to be used, the drives to be mirrored must be identical in size.
Ethernet
Option #
Manufacturing
Description
Previous
SG-XPCIEFCOE2-Q-SR
[S]
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
SG-XPCIEFCOE2-Q-TA
[S]
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
X1027A-Z
[S]
7054890
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
501-7283
[C]
X1106A-Z
[S]
375-3585
[C]
Intel PRO/10GbE-SR x8 PCI Express
n/a
X1107A-Z
[S]
375-3586
[C]
Intel PRO/Dual Port/10GbE-SR x8 PCI Express Low Profile Bracket
n/a
X4446A-Z
[S]
7054739
[C]
PCI Express Quad Gigabit Ethernet UTP
375-3481
[C]
X4447A-Z 2
[S]
371-2348
Bracket Standard
n/a
7055021
[C]
Quad Port GbE PCI Express, UTP
511-1422
[C]
+
n/a
X5558A
[S]
7058828
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
375-3301
[C]
X5560A-Z
[S]
375-3495
[C]
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)
n/a
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
n/a
375-3301
[C]
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)
n/a
n/a
375-3481
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
375-3681
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
n/a
375-3682
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
501-7283
[C]
PCI Express Dual 10-Gigabit Ethernet Fiber
n/a
n/a
501-7606
[C]
PCI Express Quad Gigabit Ethernet UTP
n/a
n/a
n/a
n/a
511-1422
[C]
Quad Port GbE PCI Express, UTP
501-7606
[C]
n/a
2 X4447A-Z/501-7606 is supported under the Solaris and Linux OS's - but is not supported under Windows or VMware.
Fan
Option #
Manufacturing
Description
Previous
n/a
541-2112
[C]
Fan Power Board
n/a
n/a
n/a
n/a
n/a
541-2802 [C]
Fan Module
n/a
n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
SG-XPCIE1FC-EM4
[S]
375-3396
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053428
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-EM8-Z
[S]
371-4295
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
7053433
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF4
[S]
375-3355
[C]
4Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE1FC-QF8-Z
[S]
371-4324
[C]
8Gigabit/Sec PCI Express Single FC Host Adapter
n/a
SG-XPCIE2FC-EM4
[S]
375-3397
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
7053427
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-EM8-Z
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF4
[S]
375-3356
[C]
4Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
SG-XPCIE2FC-QF8-Z
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
I/O
Option #
Manufacturing
Description
Previous
n/a
541-2128
[C]
x8 PCI Express/XAUI Riser Card Assembly
n/a
n/a
n/a
n/a
541-2298
[C]
1-Slot x16 PCI Express Riser Assembly
n/a
n/a
n/a
Memory
Option #
Manufacturing
Description
Previous
X4287A
[S]
F541-3419 [C]
16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs) [SKU]
n/a
8GB DDR2-667 dual-rank Memory DIMM n/a
X6320A
[S]
F540-7598 [C]
2GB (2 × 1GB) Memory [SKU]
n/a
1 GB Registered ECC DDR2-667 DIMM n/a
X6321A
[S]
F540-7599 [C]
4GB (2 × 2GB) Memory [SKU]
n/a
2GB Registered ECC DDR2-667 DIMM n/a
X6321A-C
[S]
F540-7829 [C]
4GB (2 × 2GB) Memory [SKU]
n/a
2GB Registered ECC Single Rank DDR2-667 DIMM n/a
X6322A
[S]
F540-7600 [C]
8GB (2 × 4GB) Memory [SKU]
n/a
4GB Registered ECC DDR2-667 DIMM n/a
n/a
371-3651
Memory Slot Filler, EBS93011010
n/a
n/a
F541-3367 [C]
Qty 2 - 4GB DDR2-667 Registered ECC DIMMs (8GB Memory Assembly) [SKU]
n/a
4 GB DDR2-667 Memory DIMM n/a
Power
Option #
Manufacturing
Description
Previous
X6327A
[S]
300-2015
[C]
Type A221 658 Watt AC Input Power Supply
n/a
n/a
501-7696
[F]
Power Distribution Board
n/a
Rack
Option #
Manufacturing
Description
Previous
X6324A
[S]
371-2742 [C]
1U/2U Cable Management Arm
n/a
X6325A
[S]
371-2740 [C]
1U/2U Snap-In Slide Rail Rackmount Kit, 730mm
n/a
X6326A
[S]
371-2741 [C]
1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm
n/a
Removable Media
Option #
Manufacturing
Description
Previous
X6323A
[S]
541-2110
[C]
PATA DVD-Writer/CD-Writer - USB Board Assembly
n/a
n/a
8x PATA DVD-Writer/24x CD-Writer n/a
n/a
n/a
n/a
541-2732 [C]
USB Assembly
n/a
n/a
n/a
n/a
SCSI
Option #
Manufacturing
Description
Previous
SG-XPCIE2SCSIU320Z
[S]
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
SG-XPCIE8SAS-E-Z
[S]
7050793
[C]
PCI Express 8-Port Host Adapter
375-3487
[C]
SG-XPCIE8SAS-I-Z
[S]
7064052
[C]
PCI Express 8-Port SAS Controller
371-3255
[C]
SGXPCIESAS-R-EXT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3537
[C]
8-Port SAS RAID External HBA
n/a
SGXPCIESAS-R-INT-Z
[S]
371-3253 [C]
Lithium Ion Battery Module
n/a
375-3536
3
[C]
8-Port SAS Adaptec RAID HBA
n/a
n/a
371-3255
[C]
PCI Express 8-Port SAS Controller
n/a
n/a
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3487
[C]
PCI Express 8-Port Host Adapter
n/a
4 Six-Core Opteron requires Motherboard 540-7952 and X4140 Server Software 3.x.
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

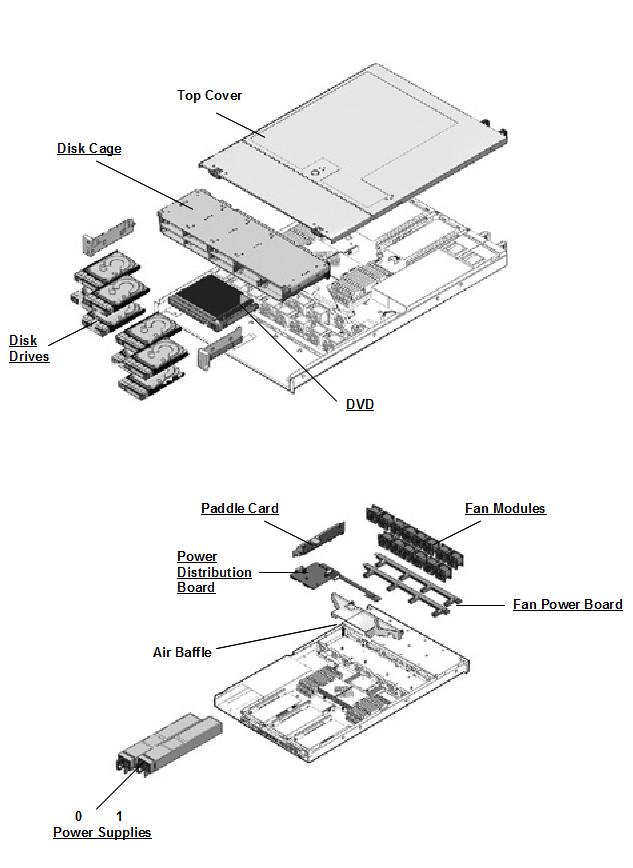

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
341-3559
1U Power Supply Unit Filler Panel
NS
341-4138
PCI Filler Panel
NS
530-3891
4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm
NS
530-3892
4x Mini SAS/SATA Cable, SFF-8087 to SFF-8087, 670mm
NS
530-3893
4x Mini SATA Cable, SFF-8087 to SFF-8087, 600mm
NS
530-3927 [F]
PDB to System Board Ribbon Cable
NS
540-7546
Chassis Subassembly [541-1982 + 541-2802]
NS
541-1982
Enclosure Assembly
NS
NS
NS
NS
NS
Connector Board Assembly, PATA DVD
NS
NS
Connector Board (Paddle Card), PATA DVD
NS
NS
NS
NS
NS
NS
NS
541-2629
2.5" Disk Drive Filler Panel
NS
541-2636 [F]
Lightpipe Assembly
NS
541-2739
PCI Cross Beam
NS
NS
NS
541-2956
Enclosure Subassembly
NS
NS
NS
NS
NS
541-3374 6
Perforated Enclosure Assembly
NS
NS
NS
NS
NS
Connector Board Assembly, PATA DVD
NS
NS
Connector Board (Paddle Card), PATA DVD
NS
NS
NS
NS
NS
NS
5 Chassis 541-7789 production began in August 2008.6 Chassis 541-7789 production began in August 2008.
