Sun Fire X4100 Server - Full Components List

Batteries
CPU Module
Cables
Communication
Disk Backplane
Disks
Ethernet

Fan
Fibre Channel
I/O
Memory
Miscellaneous
Power
Removable Media

SCSI
System Board
System Service Processor

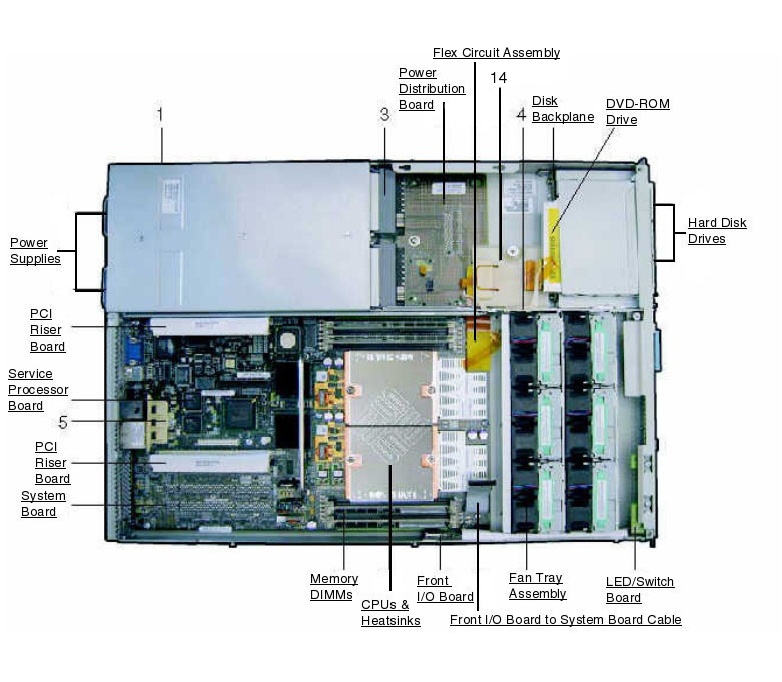

Exploded View
Wiring Diagram

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
X8045A-Z	240-4987	25mm Heatsink Shoulder Screw	n/a
	240-4988	10mm Heatsink Spring	n/a
	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	371-0935 [F]	2.6GHz Dual Core CPU, AMD Opteron 285SE, E6 Stepping, 120W	n/a
X8031A [S]	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	341-1026	10mm Heatsink Spring	n/a
	341-1028	25mm Heatsink Shoulder Screw	n/a
	370-7711 [F]	2.2GHz CPU, AMD Opteron 248, E4 Stepping	n/a
X8031A-Z [S]	240-4987	25mm Heatsink Shoulder Screw	n/a
	240-4988	10mm Heatsink Spring	n/a
	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	370-7711 [F]	2.2GHz CPU, AMD Opteron 248, E4 Stepping	n/a
X8033A [S]	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	341-1026	10mm Heatsink Spring	n/a
	341-1028	25mm Heatsink Shoulder Screw	n/a
	370-7937 [F]	2.6GHz CPU, AMD Opteron 252, E4 Stepping	n/a
X8033A-Z [S]	240-4987	25mm Heatsink Shoulder Screw	n/a
	240-4988	10mm Heatsink Spring	n/a
	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	370-7937 [F]	2.6GHz CPU, AMD Opteron 252, E4 Stepping	n/a
X8034A [S]	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	341-1026	10mm Heatsink Spring	n/a
	341-1028	25mm Heatsink Shoulder Screw	n/a
	370-7962 [F]	2.8GHz CPU, AMD Opteron 254, E4 Stepping	n/a
X8034A-Z [S]	240-4987	25mm Heatsink Shoulder Screw	n/a
	240-4988	10mm Heatsink Spring	n/a
	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	370-7962 [F]	2.8GHz CPU, AMD Opteron 254, E4 Stepping	n/a
X8036A [S]	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	341-1026	10mm Heatsink Spring	n/a
	341-1028	25mm Heatsink Shoulder Screw	n/a
	370-7799 [F]	2.0GHz Dual Core CPU, AMD Opteron 270, E6 Stepping, 95W	n/a
X8037A [S]	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	341-1026	10mm Heatsink Spring	n/a
	341-1028	25mm Heatsink Shoulder Screw	n/a
	370-7800 [F]	2.2GHz Dual Core CPU, AMD Opteron 275, E6 Stepping, 95W	n/a
X8037A-Z [S]	240-4987	25mm Heatsink Shoulder Screw	n/a
	240-4988	10mm Heatsink Spring	n/a
	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	370-7800 [F]	2.2GHz Dual Core CPU, AMD Opteron 275, E6 Stepping, 95W	n/a
X8038A [S]	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	341-1026	10mm Heatsink Spring	n/a
	341-1028	25mm Heatsink Shoulder Screw	n/a
	370-7938 [F]	2.4GHz Dual Core CPU, AMD Opteron 280SE, E6 Stepping, 120W	n/a
X8044A [S]	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	341-1026	10mm Heatsink Spring	n/a
	341-1028	25mm Heatsink Shoulder Screw	n/a
	371-0839 [F]	2.4GHz Dual Core CPU AMD Opteron 280, E6 Stepping, 95W	n/a
X8044A-Z [S]	240-4987	25mm Heatsink Shoulder Screw	n/a
	240-4988	10mm Heatsink Spring	n/a
	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	371-0839 [F]	2.4GHz Dual Core CPU AMD Opteron 280, E6 Stepping, 95W	n/a
X8045A [S]	310-0014	CPU Heatsink Assembly	n/a
	310-0049	G751 Thermal Grease Syringe - 0.5gm (approximately 0.25 - 0.30cc)	n/a
	341-1026	10mm Heatsink Spring	n/a
	341-1028	25mm Heatsink Shoulder Screw	n/a
	371-0935 [F]	2.6GHz Dual Core CPU, AMD Opteron 285SE, E6 Stepping, 120W	n/a

NOTE: Single processor systems can be expanded with a second CPU of the identical model/speed only,
e.g. AMD Opteron 1x248 system can only use another AMD Opteron 248 CPU; mixing with a 252
CPU is not supported.

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
X311L [S]	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
X312E [S]	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
X312L [S]	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
X314L [S]	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
X317L [S]	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
X384L [S]	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
X386L [S]	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
X9280A [S]	530-3387 [C]	4X SFF8470 to 12X SFF8470 InfiniBand Cable, 2 Meter	n/a
X9281A [S]	530-3386 [C]	4X SFF8470 to 12X SFF8470 InfiniBand Cable, 5 Meter	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a
n/a	530-3338 [F]	Front I/O Board to System Board Cable	n/a
n/a	541-0648 [F]	Flex Circuit Assembly	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1235A [S]	375-3260 ¹ [C]	PCI-X Dual Port 4x InfiniBand Host Channel Adapter - Low Profile	n/a

¹ Infiniband Host Channel Adapter includes no cables, so cable option 9280 or 9281 should be ordered with card.

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6919 [F]	2-Slot Disk Backplane	n/a
n/a	501-6976 [F]	4-Slot Disk Backplane	n/a

NOTE: DVD-ROM support requires the 2-Slot Disk Backplane.

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2CD-146G10KZ [S]	540-7151 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2CD-36G10K [S]	540-6358 [C] [S]	36GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0208	Seagate ST936701SS [ST936701LSUN36G] (36GB - 10000 RPM - SAS Disk)	n/a
	390-0210	Fujitsu MAV2036RC [MAV2036RCSUN36G] (36GB - 10000 RPM - SAS Disk)	n/a
	390-0284	Fujitsu MAY2036RC [MAY2036RCSUN36] (36GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
XRA-SS2CD-36G10KZ [S]	540-6610 [C]	36GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0208	Seagate ST936701SS [ST936701LSUN36G] (36GB - 10000 RPM - SAS Disk)	n/a
	390-0284	Fujitsu MAY2036RC [MAY2036RCSUN36] (36GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
XRA-SS2CD-73G10K [S]	541-0323 [C]	73GB 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0211	Fujitsu MAV2073RC [MAV2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
XRA-SS2CD-73G10KZ [S]	540-6611 [C]	73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
n/a	540-7777 [C]	146GB 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks	540-7151 [C]
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a

NOTE: Any combination of two same type drives is supported. If onboard RAID 1 mirroring is going to be used, it requires identically-sized drives.

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X7285A [S]	371-0911 [C]	Low Profile PCI-X Dual Gigabit Ethernet UTP	n/a
X7286A [S]	371-0912 [C]	Low Profile PCI-X Single Gigabit Ethernet MMF	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6917 [C]	Fan Connector Board (A64/A86)	n/a
n/a	541-0266 [C]	Fan Module (Single Fan)	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QLC [S]	375-3253 [C]	Entry-Level 2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QLC-Z [S]	375-3364 [C]	Entry-Level 2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [C]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2 [S]	375-3108 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2 [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF2-Z [S]	375-3363 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [C]	4Gb PCI-X Dual FC Host Adapter	375-3294 [C]
n/a	375-3294 [C]	4Gb PCI-X Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6914 [C]	1-Slot PCI Riser Board	n/a
n/a	501-6918 [F]	Front I/O Board w/Cover Interlock Switch	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X8021A [S]	1GB (2 × 512MB DDR400/PC3200 ECC DIMM) Option
	594-1676	1GB (2 × 512MB DDR400/PC3200 ECC DIMM)	n/a
	371-0071	512MB PC3200 DDR400 ECC registered DIMM	n/a
X8021A-Z [S]	1GB (2 × 512MB DDR400/PC3200 ECC DIMM) Option
	594-1676	1GB (2 × 512MB DDR400/PC3200 ECC DIMM)	n/a
	371-0071	512MB PC3200 DDR400 ECC registered DIMM	n/a
X8022A [S]	2GB (2 × 1GB DDR400/PC3200 ECC DIMM) Option
	594-1677	2GB (2 × 1GB DDR400/PC3200 ECC DIMM)	n/a
	371-0072	1GB PC3200 DDR400 ECC registered DIMM	n/a
X8022A-Z [S]	2GB (2 × 1GB DDR400/PC3200 ECC DIMM) Option
	594-1677	2GB (2 × 1GB DDR400/PC3200 ECC DIMM)	n/a
	371-0072	1GB PC3200 DDR400 ECC registered DIMM	n/a
X8023A [S]	4GB (2 × 2GB DDR400/PC3200 ECC DIMM) Option
	594-1678	4GB (2 × 2GB DDR400/PC3200 ECC DIMM)	n/a
	371-0073	2GB PC3200 DDR400 ECC registered DIMM	n/a
X8023A-Z [S]	4GB (2 × 2GB DDR400/PC3200 ECC DIMM) Option
	594-1678	4GB (2 × 2GB DDR400/PC3200 ECC DIMM)	n/a
	371-0073	2GB PC3200 DDR400 ECC registered DIMM	n/a
X8024A-Z [S]	8GB (2 × 4GB PC3200 DDR400 DIMM) Option
	594-4108	8GB (2 × 4GB DDR1-400/PC3200 ECC DIMM)	n/a
	371-1460	4GB PC3200 DDR1-400 ECC registered DIMM	n/a
n/a	F540-6453 [C]	2GB (2 × 1GB) Memory FRU [SKU]	n/a
n/a	371-0072	1GB PC3200 DDR400 ECC registered DIMM	n/a
n/a	F540-6454 [C]	1GB (2 × 512MB) Memory FRU [SKU]	n/a
n/a	371-0071	512MB PC3200 DDR400 ECC registered DIMM	n/a
n/a	F540-6497 [C]	4GB (2 × 2GB) Memory FRU [SKU]	n/a
n/a	371-0073	2GB PC3200 DDR400 ECC registered DIMM	n/a
n/a	F540-6838 [C]	Qty 2 - 4GB DDR400 DIMMs (8GB Memory Assembly)	n/a
n/a	371-1460	4GB PC3200 DDR1-400 ECC registered DIMM	n/a

NOTE: The entry-level single CPU standard configuration has only 4 memory slots that are usable; the other 4 memory slots only work if a second CPU is installed.
NOTE: 4GB DIMMs (371-1460) require BIOS 36 included in Supplemental ISO Image 1.2.1. and Rear Top Cover EMI Gasket 343-0444-01.
NOTE: Memory must be installed in pairs. Pairs of different densities may be mixed.

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X949A-4 [S]	594-2682	Wago DC Connector Set (10 pack)	n/a
	130-6352	Wago DC Connector	n/a
	230-4652	Wago DC Connector Strain Relief	n/a
	230-4653	Wago DC Connector Opening Lever	n/a
n/a	501-6916 [C]	LED/Switch Board (A64/A86)	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
X8026A	300-1757 [C]	Type A203 550 Watt AC Input Power Supply	n/a
X8026A-Z [S]	300-1945 [C]	Type A203 550 Watt AC Input Power Supply	n/a
X8051A-Z [S]	300-2006 [C]	Type D193 550 Watt DC Input Power Supply	n/a
n/a	501-6920 [F]	Power Distribution Board	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
8030A	540-6368 [F]	Slimline ATAP/IDE DVD-ROM/CD-ROM Drive Assembly	n/a
8030A	390-0218	8x DVD-ROM/24x CD-ROM Drive	n/a

NOTE: DVD-ROM support requires a 2-Slot Disk Backplane.
NOTE: A two-disk Sun Fire X4100 chassis (with or without DVD-ROM) cannot be field converted to a four-disk Sun Fire X4100, or vice versa.

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1SCSI-LM320 [S]	375-3255 [C]	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
SG-XPCI8SAS-E-Z [S]	7050791 [C]	3Gb PCI-X SAS 8-Port Host Adapter	375-3488 [C]
SGXPCI1SCSILM320-Z [S]	375-3366 [C]	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
n/a	375-3488 [C]	3Gb PCI-X SAS 8-Port Host Adapter	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7261 [F]	System Board	n/a
n/a	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	501-7644 [F]	System Board	n/a
n/a	150-3993 [C] Buy	3V Lithium Coin Cell Battery	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-6979 [F]	Service Processor Board	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	541-0250	Chassis Assembly
	501-6916 [C]	LED/Switch Board (A64/A86)
	501-6917 [C]	Fan Connector Board (A64/A86)
	501-6918 [F]	Front I/O Board w/Cover Interlock Switch
-	541-0224	Chassis Subassembly
1	541-0566	Chassis Subassembly with 2-Slot Backplane
	150-3993 [C] Buy	3V Lithium Coin Cell Battery
	300-1757 [C]	Type A203 550 Watt AC Input Power Supply
4	330-4018	DVD Flex Circuit Retaining Bracket
5	330-4032	Service Processor Bracket
	501-6914 [C]	1-Slot PCI Riser Board
	501-6917 [C]	Fan Connector Board (A64/A86)
	501-6920 [F]	Power Distribution Board
	501-6976 [F]	4-Slot Disk Backplane
	501-6979 [F]	Service Processor Board
3	330-3955	Power Supply Air Baffle/Damper
	501-6919 [F]	2-Slot Disk Backplane
	501-7261 [F]	System Board
	150-3993 [C] Buy	3V Lithium Coin Cell Battery
	530-3338 [F]	Front I/O Board to System Board Cable
	541-0266 [C]	Fan Module (Single Fan)
14	541-0621	Flex Circuit Retaining Bracket
NS	541-0225	Empty 4-Slot Disk Drive Bay Assembly
NS	541-0267	Rear Top Cover Assembly
NS	541-0302	Empty 2-Slot Disk Drive/DVD Bay Assembly
NS	541-0620	Front Top Cover Assembly with Door
NS	541-0624	Bus Bar Set
	541-0648 [F]	Flex Circuit Assembly
1	541-0567	Chassis Subassembly with 4-Slot Backplane
	300-1757 [C]	Type A203 550 Watt AC Input Power Supply
4	330-4018	DVD Flex Circuit Retaining Bracket
5	330-4032	Service Processor Bracket
	501-6914 [C]	1-Slot PCI Riser Board
	501-6917 [C]	Fan Connector Board (A64/A86)
	501-6920 [F]	Power Distribution Board
	501-6976 [F]	4-Slot Disk Backplane
	501-6979 [F]	Service Processor Board
3	330-3955	Power Supply Air Baffle/Damper
	501-6919 [F]	2-Slot Disk Backplane
	501-7261 [F]	System Board
	150-3993 [C] Buy	3V Lithium Coin Cell Battery
	530-3338 [F]	Front I/O Board to System Board Cable
	541-0266 [C]	Fan Module (Single Fan)
14	541-0621	Flex Circuit Retaining Bracket
NS	541-0225	Empty 4-Slot Disk Drive Bay Assembly
NS	541-0267	Rear Top Cover Assembly
NS	541-0302	Empty 2-Slot Disk Drive/DVD Bay Assembly
NS	541-0620	Front Top Cover Assembly with Door
NS	541-0624	Bus Bar Set
	541-0648 [F]	Flex Circuit Assembly
1	599-3038	Base Chassis Assembly with 2-Slot Backplane
NS	541-0241	Front Bezel Assembly
NS	541-0504	Power Supply Filler, Option 8048A-Z
NS	541-0509	Blank DVD Filler
NS	541-0605 ² [F]	Blank Disk Drive Filler
NS	541-0717	Dummy DVD Filler, Option 8043A-Z
NS	541-0737	CPU Filler Panel, Option 8053A-Z
1	599-3039	Base Chassis Assembly with 4-Slot Backplane
NS	541-0241	Front Bezel Assembly
NS	541-0504	Power Supply Filler, Option 8048A-Z
NS	541-0509	Blank DVD Filler
NS	541-0605 ³ [F]	Blank Disk Drive Filler
NS	541-0717	Dummy DVD Filler, Option 8043A-Z
NS	541-0737	CPU Filler Panel, Option 8053A-Z

² Option 8042-Z
³ Option 8042-Z
