2-Slot SAS Disk Backplane

501-6919

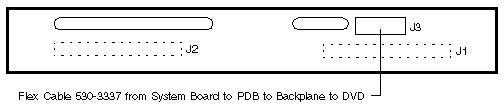

Solder Side View

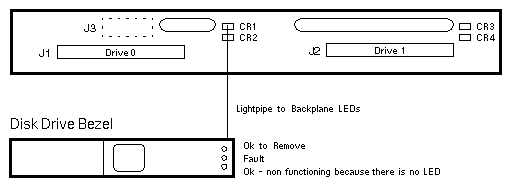

Component Side View (FAB 270-6919-01)

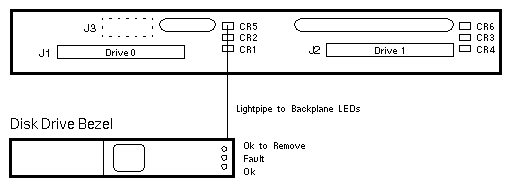

Component Side View (FAB 270-6919-02)

Sun Fire X4100 Codename: Galaxy 1U Sun Fire X4100 M2 Codename: Galaxy 1F StorageTek 5220 NAS Codename: Thunderbird

Notes

1. Disk drives in slot 0 and slot 1 of a 2-Slot X4100 are mapped by the operating system as target 2 and target 3 (c0t2d0 and c0t3d0).
2. 2-Slot X4100 configurations cannot be converted to 4-Slot configurations, or vice versa.

References

1. Sun Fire X4100 Server Documentation.
2. Sun Fire X4100 M2 Server Documentation.
