Options 8021 / 8022 / 8023
Options 8021A-Z / 8022A-Z / 8023A-Z / 8024A-Z

371-0071	371-0072	371-0073	371-1460

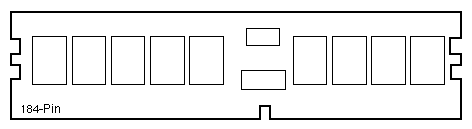

DDR400/PC3200 ECC Registered DIMM 512MB ECC 1GB FRU F540-6454 1GB Option 8021	DDR400/PC3200 ECC Registered DIMM 1GB ECC 2GB FRU F540-6453 2GB Option 8022	DDR400/PC3200 ECC Registered DIMM 2GB ECC 4GB FRU F540-6497 4GB Option 8023	DDR400/PC3200 ECC Registered DIMM 4GB ECC 8GB FRU F540-6838 8GB Option 8024

Sun Fire X4100 Codename: Galaxy 1U Sun Fire X4200 Codename: Galaxy 2U

Notes

1. 4GB DIMMs require BIOS 36 included in Supplemental ISO Image 1.2.1.
2. 4GB DIMMs require Rear Top Cover EMI Gasket 343-0444-01.
3. Option X8024A-Z includes Rear Top Cover EMI Gasket 343-0444-01.
4. Sun Fire X4100 Rear Top Cover 541-0228-03 includes EMI Gasket 343-0444-01.
5. Sun Fire X4200 Rear Top Cover 541-0724-04 includes EMI Gasket 343-0444-01.
6. EMI Gasket 343-0444-01 was added to 541-0228 and 541-0724 in September 2006.
7. Sun Fire X4100 and X4200 used 371-1096 in place of 371-0072, and 371-1097 in place of 371-0073, from 8/1/06 to 10/31/06. (Deviation WO_35026)

References

1. Sun Fire X4100 Server Documentation.
2. Sun Fire X4200 Server Documentation.
