Sun Fire V215 - Full Components List

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-1404 [F]	3V Lithium Battery,N31/N32	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
X311L [S]	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
X312E [S]	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
X312F [S]	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
X312G [S]	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
X312L [S]	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
X314L [S]	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
X317L [S]	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X320A [S]	Localized Power Cord Kit - North America/Asia
X320A [S]	180-2164 [C] Buy	IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black	530-1351 [C]
X332A [S]	Localized Power Cord Kit - Taiwan
X332A [S]	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X340L [S]	Power Kit for North America, L6-20 20A Twist Lock Plug
X340L [S]	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X383L [S]	Localized Power Cord Kit - Danish
X383L [S]	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	530-1819 [C]
X384L [S]	Localized Power Cord Kit - Italian
X384L [S]	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
X386L [S]	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-1351 [C]	IEC 320 C13 to NEMA 6-15 - 10A/250V 2.0M Black	n/a
n/a	530-1819 [C]	Localized Power Cord Kit - Danish	n/a
n/a	530-2961	RJ45 Cat5 Ethernet Cable	n/a
n/a	530-3338 [C]	Front I/O Board to System Board Cable	n/a
n/a	541-0648 [C]	Flex Circuit Assembly	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1355A-2 [S]	371-0982	2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable	n/a
X1355A-2 [S]	375-3296 [C]	Quad Port High Speed Serial Interface PCI-X (HSI/U)	n/a
X2156A-2 [S]	375-3420 ¹ [C]	Serial Asynchronous Interface PCI (SAI/P) 3.0	n/a
X6000A ² [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

¹ Requires X8424A-Z PCI-X Riser Card Assembly (1UXXL).
² Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	375-3402 [C]	2-Slot SAS Disk Backplane (SASBP)	n/a
n/a	375-3524 [C]	2-Slot SAS Disk Backplane (SASBP)	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRB-SS2CD-146G10KZ [S]	540-7151 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks and brackets	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRB-SS2CD-73G10KZ [S]	540-6611 [C]	73GB 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets	n/a
	390-0213	Seagate ST973401SS [ST973401SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X4150A-2 [S]	501-7415 [C]	GigaSwift Ethernet UTP (GCS)	n/a
X4151A-2 [S]	501-7430 [C]	GigaSwift Ethernet MMF (GFS)	n/a
X4445A [S]	501-6738 [C]	Quad GigaSwift PCI-X Ethernet (QGE-X)	n/a
X4447A-Z [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	511-1422 [C] 501-7606 [C]
	371-2207	Bracket Low-Profile	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	501-7606 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
	371-2207	Bracket Low-Profile	n/a
	371-2348	Bracket Standard	n/a
n/a	511-1422 [C]	Quad Port GbE PCI Express, UTP	501-7606 [C]
n/a	371-2207	Bracket Low-Profile	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0983 [C]	Disk Drive Fan Tray	n/a
n/a	371-2260 [C]	System Fan Tray	n/a
n/a	375-3445 [F]	System Fan Tray Connector Board	n/a
n/a	375-3448 [F]	Disk Drive Fan Tray Connector Board	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-EM4-Z [S]	375-3398 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QF4 [S]	375-3354 [C]	4Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI1FC-QL2 [S]	375-3383 [C]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [C]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-EM4-Z [S]	7058528 [C]	4Gb PCI-X Dual FC Host Adapter	375-3399 [C]
SG-XPCI2FC-QF2-Z [S]	375-3363 [C]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [C]	4Gb PCI-X Dual FC Host Adapter	375-3294 [C]
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM4 [S]	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	375-3294 [C]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	375-3399 [C]	4Gb PCI-X Dual FC Host Adapter	n/a

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3000A [S]	375-3545 [C]	XVR-300 x8 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 ³ [C]	DMS-59 to Dual DVI-I Cable, 215mm	530-3459 [C]
X4240A [S]	605-4668	XVR-300X16 Graphics Accelerator	n/a
	375-3458 [C]	XVR-300 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 ⁴ [C]	DMS-59 to Dual DVI-I Cable, 215mm	530-3459 [C]
X7295A [S]	375-3292 ⁵ [C]	XVR-2500 Graphics Accelerator	n/a
X7296A [S]	375-3290 ⁶ [C]	XVR-100 Graphics Accelerator (64MB)	n/a

³ Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
⁴ Sun custom overmold to fit systems using the Jake and Elwood chassis.
Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.
⁵ Requires X8426A-Z PCI Express Riser Card Assembly (1UEEL).
⁶ Refer to FAB article 1001156.1 fuzzy or blurry video with the XVR-100 Graphics Accelerator.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
X8424A-Z [S]	375-3516 ⁷ [C]	PCI-X Riser Card (1UXXL)	n/a
X8426A-Z [S]	375-3519 ⁸ [C]	PCI Express Riser Card (1UEEL)	n/a
n/a	375-3326 [C]	PCI Express Riser Card Assembly (1UEER)	n/a
n/a	375-3328 [C]	PCI-X Riser Card Assembly (1UXXL)	n/a
n/a	375-3446 [C]	Front I/O Board Assembly	n/a

⁷ Changes PCI-X I/O slot to accommodate X2156A-2 serial asynchronous (SAI/P) adapter,
⁸ Changes PCI-X 133 MHz full height/short I/O slot to PCI Express x8.

IDPROM
Socket	Manufacturing Part #	Component Type	Host ID
n/a	525-2180	SEEPROM 10x MAC	83xxxxxx

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X8703A [S]	540-6466 [C]	Qty 2 - 512MB DIMMs (1GB Memory Assembly)	n/a
X8703A [S]	370-7972	512MB PC2700 DIMM	n/a
X8704A [S]	540-6467 [C]	Qty 2 - 1GB DIMMs (2GB Memory Assembly)	n/a
X8704A [S]	370-7973	1GB PC2700 DIMM	n/a
X8711A [S]	540-6468 [C]	Qty 2 - 2GB DIMMs (4GB Memory Assembly)	n/a
X8711A [S]	370-7974	2GB PC2700 DIMM	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2881 ⁹ [F]	Top Cover Latch Tape Kit	n/a
n/a	375-3444 [F]	Indicator Board Assembly	n/a

⁹ Refer to FAB article1000273.1 for further information.

Power
Option #	Manufacturing Part #	Description	Previous Part #
X8428A-Z ¹⁰ [S]	300-1852 [C]	Type A214 550 Watt AC Input Power Supply	n/a
X8428A-Z ¹⁰ [S]	300-1945 [C]	Type A203 550 Watt AC Input Power Supply	n/a
n/a	375-3401 [F]	Power Distribution Board (PDB) Assembly	n/a

¹⁰ 300-1945 replaced 300-1852 in May 2007, and 300-1852 became the manufacturing substitute. (WO_36947)

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-0066 [C]	Rack Mount/Cable Management Kit	n/a
	370-7668 [F]	Cable Management Arm	n/a
	370-7669 [F]	Slide Rail Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X8410A-Z [S]	371-1106	8x DVD-Writer / 24x CD-Writer	n/a
	371-2261	DVD-ROM / CD-ROM Drive Bezel	n/a
	371-2549	8x DVD-Writer / 24x CD-Writer	n/a
	390-0403 [C]	8x PATA DVD-Writer / 24x CD-Writer	n/a
	390-0439	8x DVD-Writer / 24x CD-Writer	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIESAS-E-Z	375-3488 [C]	3Gb PCI-X SAS 8-Port Host Adapter	n/a
SG-XPCI8SAS-E-Z [S]	7050791 [C]	3Gb PCI-X SAS 8-Port Host Adapter	375-3488 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SGXPCI1SCSILM320-Z [S]	375-3366 [C]	PCI/PCI-X Single Ultra320 SCSI Adapter	n/a
SGXPCI2SCSILM320-Z [S]	7050788 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	375-3365 ¹² [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
SGXPCIESAS-R-EXT-Z [S]	375-3537 [C]	8-Port SAS RAID External HBA	n/a
X4422A-2 [S]	501-7490 [C]	Dual GigabitEthernet / Dual SCSI PCI Adapter	n/a
n/a	375-3365 ¹¹ [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a

¹¹ Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
¹² Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	375-3463 [F]	Motherboard w/ 2 × US IIIi 1.5GHz, 0MB	n/a
	371-0820	CPU Heatsink	n/a
	371-2609	CPU Heatsink	n/a
	375-3462	0MB Motherboard	n/a
n/a	375-3464 [F]	Motherboard w/ 1 × US IIIi 1.5GHz, 0MB	n/a
	371-0820	CPU Heatsink	n/a
	371-2609	CPU Heatsink	n/a
	375-3462	0MB Motherboard	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

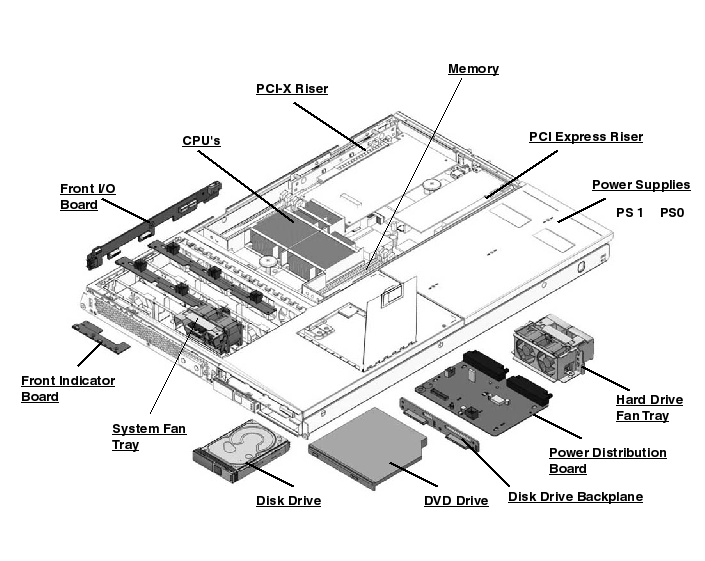

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	371-1903	Chassis Assembly
NS	371-0814	Front Bezel
NS	371-0952	Chassis
NS	530-3459 [C]	DMS-59 to Dual DVI-I Cable, 215mm
NS	541-2411 [C]	Bus Bar Replacement Kit
NS	599-3235	Sun Fire V215 Base Chassis Assembly
	375-3326 [C]	PCI Express Riser Card Assembly (1UEER)
	375-3328 [C]	PCI-X Riser Card Assembly (1UXXL)
	530-2961	RJ45 Cat5 Ethernet Cable
