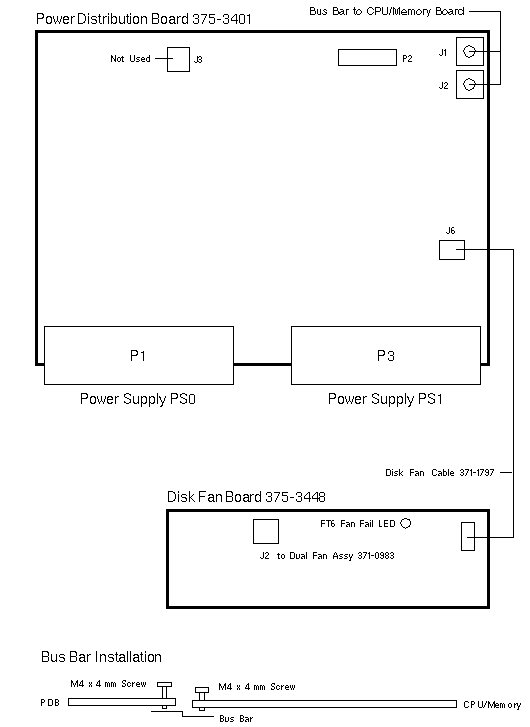

DC Power Distribution Board

375-3401 375-3448
Power Distribution Board
411743100049		 Disk Fan Board
411743100074

Sun Fire V215 Codename: Seattle 1U
Sun Fire V245 Codename: Seattle 2U

Notes

  1. Use two black M4 × 4 Screws on the PDB side of the Bus Bar.
  2. Use two M4 × 4 Screws on the CPU/Memory Board side of the Bus Bar.
  3. Replacement Bus Bars and Screws are included with Kit 541-2412.
