Sun SPARC Enterprise T5140 Server - Full Components List

Batteries Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel Graphics I/O IDPROM Memory Power Rack Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X332A [S]	Localized Power Cord Kit - Taiwan
	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X332T [S]	International Power Cord Kit
	180-2071 [C]	Blue 16A IEC 309 to IEC 320 C13 International 4.0M	n/a
X333A-25-10-IL [S]	Localized Power Cord Kit Israel
	180-2130 [C] Buy	IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black	n/a
X333A-25-15-JP [S]	Localized Power Cord Kit Japan
	180-2243 [C] Buy	IEC 320 C13 to PSE 5-15P, 10A/125V, 2.5M, Black	n/a
X333F-25-15-JP [S]	Localized Power Cord Kit Japan
	180-2244 [C] Buy	IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black	n/a
X340L [S]	Power Kit for North America, L6-20 20A Twist Lock Plug
	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
X9237-1-A [S]	Power Cord Jumper X-Option 1.0M
	180-2082 [C] Buy	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 1.0M	n/a
X9238-1-A [S]	Power Cord Jumper X-Option 2.5M
	180-2085 [C] Buy	IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 2.5M	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a
n/a	541-3370 [F]	PDB to System Board Ribbon Cable w/ insulator	n/a
	343-0786	Kapton Tape	n/a
	530-3956 [F]	PDB to System Board Ribbon Cable	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1236A-Z [S]	375-3382 [C]	Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile	n/a
X4237A [S]	375-3606 [C]	Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express	n/a
X6000A 1 [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a

1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration NOTE: X-Option X4237A (Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter) is not supported in PCI Express slot 0.

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	501-7699 [F]	4-Slot Disk Backplane, PATA DVD	n/a
n/a	501-7797 [F]	8-Slot Disk Backplane, PATA DVD	n/a
n/a	511-1282 [F]	4-Slot Disk Backplane, SATA DVD	n/a
n/a	511-1283 [F]	8-Slot Disk Backplane, SATA DVD	n/a
n/a	542-0355 [F]	Backplane Retainer Clip Kit	n/a
	330-5316	Black 1U Backplane Retainer Clip	n/a
n/a	7051678 [F]	8-Slot Disk Backplane, SATA DVD	511-1283 [F]

NOTE: Reference PATA/SATA DVD Drive Compatibility.

Disks
Option #	Manufacturing Part #	Description	Previous Part #
SESX3A11Z [S]	540-7354 [C]	73GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0285	Fujitsu MAY2073RC [MAY2073RCSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0323	Seagate ST973402SS [ST973402SSUN72G] (73GB - 10000 RPM - SAS Disk)	n/a
	390-0374	Fujitsu MBB2073RC [MBB2073RCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	390-0376	Hitachi HUC101473CSS300 [H101473SCSUN72G] (73.4GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
SESX3A21Z [S]	540-7361 [C]	73GB - 15000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks	n/a
	390-0382	Seagate ST973451SS [ST973451SSUN72G] (73GB - 15000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
SESX3C11Z 2 [S]	540-7355 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0375	Fujitsu MBB2147RC [MBB2147RCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
	540-7868 [C]	146GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0450	Hitachi HUC103014CSS600 [H103014SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
SESX3G11Z [S]	540-7869 [C]	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0449	Seagate ST9300603SS [ST930003SSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0451	Hitachi HUC103030CSS600 [H103030SCSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
SESX3G12Z [S]	542-0388 [C] Buy	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0487	Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0490	Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
SESX3Y11Z [S]	540-7841 [C]	32GB Solid State SATA Drive Assembly	n/a
	371-4196	Intel SSDSA2SH032G1SB [Inquiry Unknown] (32GB - 2.5" Solid State - SATA Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

2 Assembly 540-7868 became the primary component in option SESX3C11Z, and 540-7355 became the secondary component, in April 2009. (WO_41247) (WO_40981)

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
SE3X7XA1Z [S]	501-7489 3 [C]	10GbE XAUI Card	n/a
SE3X7XT1Z [S]	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
SE3X7XT2Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
SESX7XA1Z [S]	501-7489 4 [C]	10GbE XAUI Card	n/a
SESX7XT1Z [S]	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
SESX7XT2Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
X1027A-Z [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X4447A-Z [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	511-1422 [C]  + 501-7606 [C]
	371-2207	Bracket Low-Profile	n/a
X5558A [S]	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
X5560A-Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a
n/a	501-7606 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
	371-2207	Bracket Low-Profile	n/a
	371-2348	Bracket Standard	n/a
n/a	511-1422 [C]	Quad Port GbE PCI Express, UTP	501-7606 [C]
	371-2207	Bracket Low-Profile	n/a

3 Requires one XFP Transceiver 4 Requires one XFP Transceiver

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	330-4683	Fan Connector Cover	n/a
n/a	541-2112 [F]	Fan Power Board	n/a
	330-4442	Top Bracket	n/a
	330-4443	Bottom Bracket	n/a
	501-7694	Fan Board	n/a
n/a	541-2802 [C]	Fan Module	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE1FC-EM4 [S]	375-3396 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053428 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-EM8-Z [S]	371-4295 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
	7053433 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF4 [S]	375-3355 [C]	4Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE1FC-QF8-Z [S]	371-4324 [C]	8Gigabit/Sec PCI Express Single FC Host Adapter	n/a
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3000A [S]	375-3545 [C]	XVR-300 x8 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 5 [C]	DMS-59 to Dual DVI-I Cable, 215mm	n/a
X4240A [S]	605-4668	XVR-300X16 Graphics Accelerator	n/a
	375-3458 [C]	XVR-300 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 6 [C]	DMS-59 to Dual DVI-I Cable, 215mm	n/a

5 Sun custom overmold to fit systems using the Jake and Elwood chassis. Cable 530-3998 replaced 530-3459 in option X4240A in December 2007. 6 Sun custom overmold to fit systems using the Jake and Elwood chassis. Cable 530-3998 replaced 530-3459 in option X4240A in December 2007.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
SELX8LK1Z [S]	Copper Link Card Kit w/ 2 × Cards & 4M Cable
	501-7041 [C]	Copper Link Card	n/a
	7060403 [C]	Copper Link Cable, 4M	n/a
n/a	541-2127 [F]	x16 PCI Express Riser Card Assembly	n/a
	501-7717	PCI Express Riser Card	n/a
	541-2737	Riser Bracket	n/a
n/a	541-2128 [F]	x8 PCI Express/XAUI Riser Card Assembly	n/a
	501-7721	XAUI Riser Card	n/a
	541-2737	Riser Bracket	n/a

NOTE: External I/O Expansion Unit

IDPROM
Socket	Manufacturing Part #	Component Type	Host ID
J11501	525-2344 [F]	System Configuration PROM	84xxxxxx

Memory
Option #	Manufacturing Part #	Description	Previous Part #
SESX2A1Z [S]	2GB Memory Expansion (2 × 1GB) X-Option
	501-7952 [C]	1GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a
SESX2A3Z [S]	2GB Memory Expansion (2 × 1GB) X-Option
	511-1150 [C]	1 GB DDR2-667/PC2-5300 1.5V DIMM	n/a
SESX2B1Z [S]	4GB Memory Expansion (2 × 2GB) X-Option
	501-7953 [C]	2GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a
SESX2B3Z [S]	4GB Memory Expansion (2 × 2GB) X-Option
	511-1151 9 [C]	2GB DDR2-667/PC2-5300 1.5V DIMM	n/a
SESX2C1Z [S]	8GB Memory Expansion (2 × 4GB) X-Option
	501-7954 [C]	4GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a
SESX2C3Z [S]	8GB Memory Expansion (2 × 4GB) X-Option
	511-1152 10 [C]	4GB DDR2-667/PC2-5300 1.5V DIMM	n/a
SESX2D3Z [S]	16GB Memory Expansion (2 × 8GB) X-Option
	511-1228 [C]	8GB DDR2-667/PC2-5300 1.5V DIMM	n/a
n/a	7052193 7 [C]	2GB DDR2-667/PC2-5300 1.5V DIMM	n/a
n/a	7052205 8 [C]	4GB DDR2-667/PC2-5300 1.5V DIMM	n/a
n/a	7059410 [C]	4GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a

7 DIMMs 511-1151 and 7052193 can be mixed. 8 DIMMs 511-1152 and 7052205 can be mixed. 9 DIMMs 511-1151 and 7052193 can be mixed. 10 DIMMs 511-1152 and 7052205 can be mixed. NOTE: Systems shipped with 1.5V DIMMs cannot support 1.8V DIMMs NOTE: Mixing of 1.8 V and 1.5 V FB-DIMMs is not supported.

Power
Option #	Manufacturing Part #	Description	Previous Part #
SETX9PS41Z [S]	300-2137 [C]	Type A236 720 Watt AC Input Power Supply	n/a
SETX9PS81Z [S]	300-2143 [C]	Type A237 760 Watt AC Input Power Supply	n/a
n/a	300-2186 [C]	Type D218 660 Watt DC Input Power Supply	n/a
n/a	300-2233 [C]	Type A247 760 Watt AC Input Power Supply	300-2143 [C]
n/a	501-7696 [F]	Power Distribution Board	n/a
n/a	511-1604 11 [F]	Power Distribution Board	n/a
n/a	7048340 [C]	Type D218 660 Watt DC Input Power Supply	n/a

11 ILOM incorrectly identifies the PSU slot. Reference Problem document 1309810.1. Corrected in Patch 145673: FIRMWARE: SPARC Enterprise T5120 + T5220 - Sun System Firmware 7.3.1.a.

Rack
Option #	Manufacturing Part #	Description	Previous Part #
SESX9CA1Z [S]	371-2742 [C]	1U/2U Cable Management Arm	n/a
SESX9RK1Z [S]	371-2741 [C]	1U/2U Screw-Mount Slide Rail Rackmount Kit, 730mm	n/a
SESX9RK2Z [S]	371-2740 [C]	1U/2U Snap-In Slide Rail Rackmount Kit, 730mm	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
SESX9DV2Z	541-3493 [F]	Slot-Load SATA DVD-Writer/CD-Writer - USB Board Assembly	n/a
	330-5056	DVD Tray	n/a
	390-0442	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	390-0443	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a
	390-0454	8x SATA DVD Writer/24x CD-Writer	n/a
	390-0486	8x Slot-Load SATA DVD-Writer/24x CD-Writer	390-0443
	501-7698	USB Board	n/a
SESX9DV1Z [S]	541-2110 [F]	PATA DVD-Writer/CD-Writer - USB Board Assembly	n/a
	330-4418	DVD Tray	n/a
	390-0337	8x PATA DVD-Writer/24x CD-Writer	n/a
	501-7698	USB Board	n/a
	541-2111	DVD Bezel	n/a
n/a	541-2732 [F]	USB Assembly	n/a
	330-4418	DVD Tray	n/a
	341-4072	DVD Filler Panel	n/a
	501-7698	USB Board	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SETX9SA1Z [S]	560-2916 [F]	Mini SAS Cable Kit	n/a
	530-4077	4x Mini SAS Cable, SFF-8087 to SFF-8087, 400mm	n/a
	530-3891	4x Mini SAS Cable, SFF-8087 to SFF-8087, 450mm	n/a
	530-3893	4x Mini SATA Cable, SFF-8087 to SFF-8087, 600mm	n/a
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3537 [C]	8-Port SAS RAID External HBA	n/a
SGXPCIESAS-R-INT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3536 12 [C]	8-Port SAS Adaptec RAID HBA	n/a
XTA-FAS-S3IE96GB [S]	541-3731	96GB PCI Express Flash Accelerator F20 SAS HBA	n/a
	371-4650 [C]	Energy Storage Module (ESM)	n/a
	511-1500 [C]	PCI Express Flash Board	511-1275 [C]
	7061269 [C]	24GB Solid State Flash Memory Module, FW D21Y	371-4415 [C]
n/a	371-4415 [C]	24GB Solid State Flash Memory Module	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a

12 Reference Alert article
System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-7934 [F]	8-Core 1.4GHz Motherboard Assembly	n/a
	330-4793	Memory Mezzanine Slot Filler	n/a
	511-1378	8-Core 1.4GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2344 [F]	System Configuration PROM	n/a
	541-2523	System Board Tray	n/a
n/a	540-7938 [F]	4-Core 1.2GHz Motherboard Assembly	n/a
	330-4793	Memory Mezzanine Slot Filler	n/a
	511-1391	4-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2344 [F]	System Configuration PROM	n/a
	541-2523	System Board Tray	n/a
n/a	540-7939 [F]	6-Core 1.2GHz Motherboard Assembly	n/a
	330-4793	Memory Mezzanine Slot Filler	n/a
	511-1392	6-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2344 [F]	System Configuration PROM	n/a
	541-2523	System Board Tray	n/a
n/a	540-7940 [F]	8-Core 1.2GHz Motherboard Assembly	n/a
	330-4793	Memory Mezzanine Slot Filler	n/a
	511-1393	8-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2344 [F]	System Configuration PROM	n/a
	541-2523	System Board Tray	n/a
n/a	541-2528 [F]	6-Core 1.2GHz Motherboard Assembly	n/a
	330-4793	Memory Mezzanine Slot Filler	n/a
	501-7846	6-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2344 [F]	System Configuration PROM	n/a
	541-2523	System Board Tray	n/a
n/a	541-2529 [F]	8-Core 1.2GHz Motherboard Assembly	n/a
	330-4793	Memory Mezzanine Slot Filler	n/a
	501-7847	8-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2344 [F]	System Configuration PROM	n/a
	541-2523	System Board Tray	n/a
n/a	541-2530 [F]	8-Core 1.4GHz Motherboard Assembly	n/a
	330-4793	Memory Mezzanine Slot Filler	n/a
	501-7848	8-Core 1.4GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2344 [F]	System Configuration PROM	n/a
	541-2523	System Board Tray	n/a
n/a	541-2931 [F]	4-Core 1.2GHz Motherboard Assembly	n/a
	330-4793	Memory Mezzanine Slot Filler	n/a
	511-1035	4-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2344 [F]	System Configuration PROM	n/a
	541-2523	System Board Tray	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

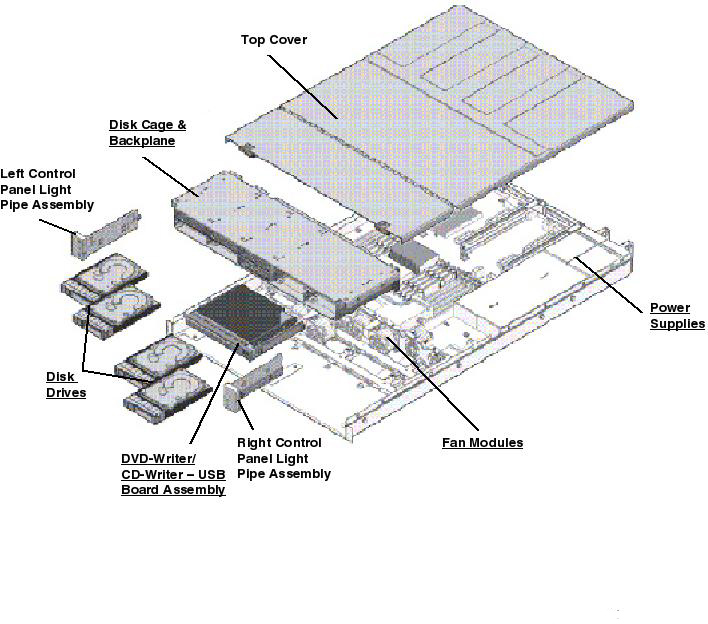

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	599-3463	T5140 Base Chassis Assembly
	541-3370 [F]	PDB to System Board Ribbon Cable w/ insulator
	343-0786	Kapton Tape
NS	530-3956 [F]	PDB to System Board Ribbon Cable
NS	330-4548	Air Duct
NS	341-4138	PCI Filler Panel
NS	541-1982	Enclosure Assembly
1	541-2497	Chassis Subassembly
NS	541-1986	Base Chassis Assembly
NS	541-1988	Top Cover
NS	150-4065	Interlock Switch Magnet
NS	541-2115	Disk Cage
NS	541-2075 [F]	Bus Bar Set
NS	341-3096	Long Red Bus Bar
NS	341-3104	Short Blue Bus Bar
NS	541-2115	Disk Cage
NS	541-2183 [F]	Connector Board Assembly, PATA DVD
NS	341-3168	Bracket
NS	501-7725	Connector Board (Paddle Card), PATA DVD
NS	530-3510	Interlock Switch Cable
	541-2127 [F]	x16 PCI Express Riser Card Assembly
	501-7717	PCI Express Riser Card
	541-2737	Riser Bracket
	541-2128 [F]	x8 PCI Express/XAUI Riser Card Assembly
	501-7721	XAUI Riser Card
	541-2737	Riser Bracket
NS	541-2739	PCI Cross Beam
NS	341-3050	PCI Bar
NS	341-3572	Ventilated 4-Disk Filler Panel
NS	511-1281	Connector Board (Paddle Card), SATA DVD
NS	530-2889	RJ45 to DB25 Serial Port Adapter
NS	530-3623 [F]	Shielded RJ45 to RJ45 Cable, 4M
NS	530-3956 [F]	PDB to System Board Ribbon Cable
NS	541-2629	2.5" Disk Drive Filler Panel
NS	541-2636 [F]	Lightpipe Assembly
NS	541-3512 [F]	Connector Board Assembly, SATA DVD
NS	341-3168	Bracket
NS	530-3510	Interlock Switch Cable
NS	560-2911 [F]	SAS Cable Kit
NS	530-3855	Mini SAS Cable, 560mm
NS	530-3862	Mini SAS Cable, 390mm
NS	530-3904	Mini SAS Cable, 460mm
