Oracle Server X5-2 - Full Components List

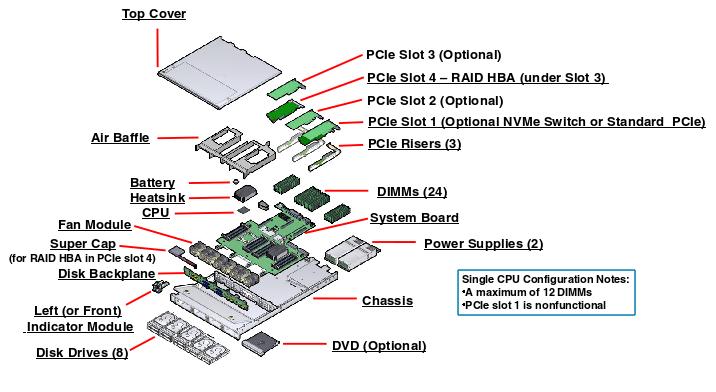

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
370-5621
3V Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
n/a
7067728 [F]
Pre-Greased 1U CPU Heatsink
n/a
n/a
7080240
CPU Installation/Removal Tool
n/a
n/a
7082521
CPU Installation/Removal Tool
n/a
n/a
7095102
[F]
8-Core 2.4GHz Intel E5-2630 v3, 85W
n/a
n/a
7095104
[F]
10-Core 2.6GHz Intel E5-2660 v3, 105W
n/a
n/a
7095105
[F]
12-Core 2.6GHz Intel E5-2690 v3, 135W
n/a
n/a
7095106
[F]
18-Core 2.3GHz Intel E5-2699 v3, 145W
n/a
Cables
Option #
Manufacturing
Description
Previous
7102869 Buy
7039990 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 10M
n/a
7102870 Buy
7039999 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 20M
n/a
7102871 Buy
7040001 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 50M
n/a
7105199 Buy
7063849 [C]
InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M
n/a
7105206 Buy
7063852 [C]
InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M
n/a
X2121A-1M-N Buy
530-4444 [C]
10Gbps QSFP to QSFP Cable, 1m
n/a
X2121A-2M Buy
530-4567 [C]
10Gbps QSFP to QSFP Cable, 2m
n/a
X2121A-3M-N Buy
530-4445 [C]
10Gbps QSFP to QSFP Cable, 3m
n/a
X2121A-5M-N Buy
530-4446 [C]
10Gbps QSFP to QSFP Cable, 5m
n/a
X2130A-1M-N Buy
530-4441 [C]
10Gbps SFP+ TwinX Cable, 1m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
X333V-20-15-C14-N Buy
7040692 [C]
IEC 320 Sheet E to IEC 320 C13, 10A/250V, 2M
n/a
X333V-30-15-C14-N Buy
7040693 [C]
IEC 320 Sheet E to IEC 320 C13, 10A/250V, 3M
n/a
X9237-1-A-N Buy
180-2082 [C]
IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 1.0M
n/a
X9238-1-A-N Buy
180-2085 [C]
IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 2.5M
n/a
n/a
7014226 [C]
Interlock Cable, 125mm
n/a
n/a
7089783 [C]
Two Cable Bundle, 8-Slot NVMe, PCI Express, 2xHD8i to 2x68P
n/a
72-Pin SFF-8643 to 90° SFF-8087 Cable, 2 and 3 to A, 465mm n/a
72-Pin SFF-8643 to 90° SFF-8087 Cable, 0 and 1 to B, 500mm n/a
n/a
7094264 [F]
Cable Kit
n/a
Left Indicator Module Ribbon Cable, 368mm n/a
8-Pin Dc Power Cable, 394mm n/a
26-Pin Ribbon Data Cable, 280mm n/a
DVD Data and Power Cable, 600mm/75mm n/a
SFF-8643 to SFF-8087 to 90° SFF-8087 Cable, 550mm/770mm n/a
Chassis
Option #
Manufacturing
Description
Previous
n/a
7066885
Chassis Assembly
n/a
n/a
Bottom Chassis Subassembly n/a
n/a
n/a
Bottom Chassis Subassembly n/a
n/a
7090250
1U Air Baffle
n/a
Communication
Option #
Manufacturing
Description
Previous
7104074 Buy
7092757
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
7046442
[C]
n/a
7046442
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
7066909
8-Slot 2.5" Disk Cage Assembly
n/a
Left Indicator Module Ribbon Cable, 368mm n/a
n/a
n/a
Fan Door Cover with Spacer 7300151 n/a
n/a
n/a
Left Indicator w/o Button or Lightpipe n/a
n/a
n/a
7323221
8-Slot 2.5" Disk Cage Assembly
n/a
Left Indicator Module Ribbon Cable, 368mm n/a
n/a
n/a
n/a
n/a
Left Indicator w/o Button or Lightpipe n/a
Fan Door Cover without Spacer 7300151 n/a
1 Spacer 7300151 was removed by D0003778, D0003825, D0003866, D0003922 and FAB 2097594.1 .
Disks
Option #
Manufacturing
Description
Previous
7110933 Buy
7094132 [C]
400GB Solid State SAS Drive Assembly
n/a
400GB SAS Solid State Drive [HSCAC2DA4SUN400G] n/a
n/a
7111103 Buy
7093015 [C]
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk) n/a
n/a
7111108 Buy
7093037 [C]
1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK) n/a
n/a
7105214
[S]
7064135 [C]
600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
7106617
[S]
7045850 [C]
1.2TB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk) n/a
Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk) n/a
n/a
7110927
[S]
7302552 [C]
1.6TB Solid State NVMe Drive Assembly
7093931
[C]
Intel SSDPE2ME016T4SP [SSDPE2ME016T4S] (1.6TB - 2.5" eMLC NVMe Solid State Drive) n/a
n/a
n/a
7093931
[C]
1.6TB Solid State NVMe Drive Assembly
n/a
Intel SSDPE2ME016T4SP [SSDPE2ME016T4S] (1.6TB - 2.5" eMLC NVMe Solid State Drive) n/a
n/a
n/a
7350766 [C]
1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below) n/a
n/a
n/a
7330686 [C]
[A]
800GB SAS3 Solid State Drive Assembly
n/a
HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk) n/a
n/a
n/a
7350749 [C]
[A]
800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below) n/a
n/a
n/a
7352257 [C]
[A]
600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
7100488 Buy
7070006
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
n/a
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
X5562A-Z Buy
135-1205
[C]
10Gb/Sec Long Wave SFP+ Transceiver
n/a
7111185
[S]
7096437
[C]
Quad 10-Gigabit Ethernet QSFP+
n/a
X2124A
[S]
7326504
[C]
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
135-1204
[C]
n/a
135-1204
[C]
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
7089073 [C]
Fan Module
n/a
40×56mm Dual Counter Rotating Fan n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
7101674 Buy
7023303
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
n/a
7101676 Buy
7023325
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101678 Buy
7023315
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101680 Buy
7023066
[C]
Pair of 16Gbps Long Wave SFP+
n/a
16Gb/Sec Long Wave SFP+ Transceiver, QLogic n/a
7101684 Buy
7023036
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
n/a
7101686 Buy
7023059
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
7101688
[S]
7023057
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
I/O
Option #
Manufacturing
Description
Previous
n/a
7064634 [C]
8-Port PCI Express Switch
n/a
PCI Express Switch w/o Bracket or Heatsink n/a
n/a
7083430
[C]
1-Slot PCI Express Riser Assembly
n/a
n/a
n/a
n/a
7083433
[C]
2-Slot PCI Express Riser Assembly
n/a
n/a
n/a
Memory
Option #
Manufacturing
Description
Previous
7110354
[S]
7078070
[C]
8GB DDR4-2133 Registered DIMM
n/a
7110356
[S]
7078072
[C]
32GB DDR4-2133 Load Reduced DIMM
n/a
7110361
[S]
7078071
[C]
16GB DDR4-2133 Registered DIMM
n/a
n/a
7090170
[C]
8GB USB Stick
n/a
n/a
7318217
[C]
8GB USB Stick
7090170
[C]
Power
Option #
Manufacturing
Description
Previous
n/a
7079395
[C]
Type A256 600 Watt AC Input Power Supply
n/a
n/a
7335841
[C]
Type A256 600 Watt AC Input Power Supply
7079395
[C]
n/a
7352197
[C]
[A]
Type A256 600 Watt AC Input Power Supply
n/a
Rack
Option #
Manufacturing
Description
Previous
XSR-JUMP-1MC13-N Buy
7015399 [C]
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
n/a
XSR-JUMP-2MC13-N Buy
7015400 [C]
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
n/a
n/a
350-1719 [C]
1U/2U Snap-In Slide Rail Rackmount Kit
n/a
n/a
7042273 [C]
1U/2U Cable Management Arm (Snap-in)
n/a
n/a
7098533
Cable Tray Shipping Bracket
n/a
Removable Media
Option #
Manufacturing
Description
Previous
n/a
7096422
DVD Filler Panel
n/a
n/a
7096965
[F]
Tray-Load DVD Assembly
n/a
n/a
8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5) n/a
n/a
n/a
n/a
7319315
[F]
Tray-Load DVD Assembly
n/a
n/a
8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6) n/a
n/a
8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7) n/a
SCSI
Option #
Manufacturing
Description
Previous
7110119 Buy
7085208
[C]
8-Port 12Gbps SAS-3 HBA (External)
n/a
7110865
[S]
7307468
[C]
1.6TB Flash Accelerator F160 NVMe Card w/ LP Bracket (B1 Silicon)
n/a
n/a
7085211
Internal RAID HBA Assembly
n/a
Double Sided Fastener, 1"x5" n/a
8-Port 12Gbps SAS3 Internal RAID HBA n/a
13.5V 6.4F Super Capacitor n/a
n/a
System Board
Option #
Manufacturing
Description
Previous
n/a
7098505
[F]
System Board Assembly
n/a
n/a
n/a
n/a
n/a
n/a
7317947
[F]
System Board Assembly
7098505
[F]
n/a
n/a
n/a
n/a
n/a
7345179
[F]
System Board Assembly
7317947
[F]
+
n/a
n/a
n/a
n/a
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
-
240-4674
PCI Express Filler Panel
NS
150-4065
Interlock Switch Magnet
NS
541-2629
2.5" Disk Drive Filler Panel
