8-Port 12Gbps SAS-3 RAID HBA (Internal)

Codename: Aspen-INT

Option 7110117

7085209	7085211

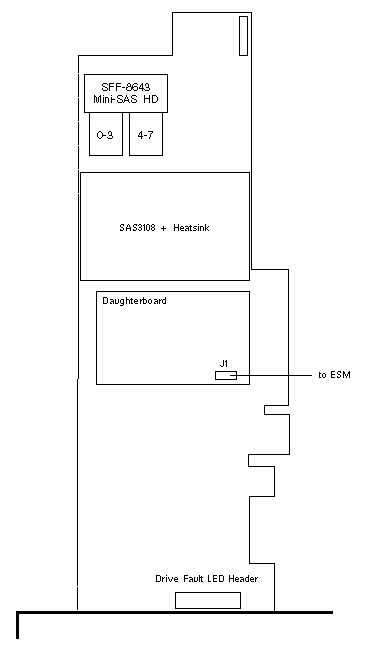

Avago/LSI Logic MegaRAID SAS 9361-8i PCI Express x8 Gen3	HBA 7085209 Cable 7086346 Fastener 7070402 Super Cap 7086345
7086345	7086346
Super Capacitor 13.5V, 6.4F Tecate TPL-34/12X46F	620mm SuperCap Cable Tecate 11-0010-4483

Notes

1. The minimum Solaris Operating System is Solaris 11.2 with SRU5.
2. Low Profile Bracket 240-7514 is included.
3. PCI Identifiers are Vendor ID 0x1000, Device ID 0x005d, and Subsystem ID 0x1000.
4. Vital Product Data VPD=PN is 7085209.

References

1. Oracle Storage 12 Gb/s SAS RAID HBA, Internal Documentation
