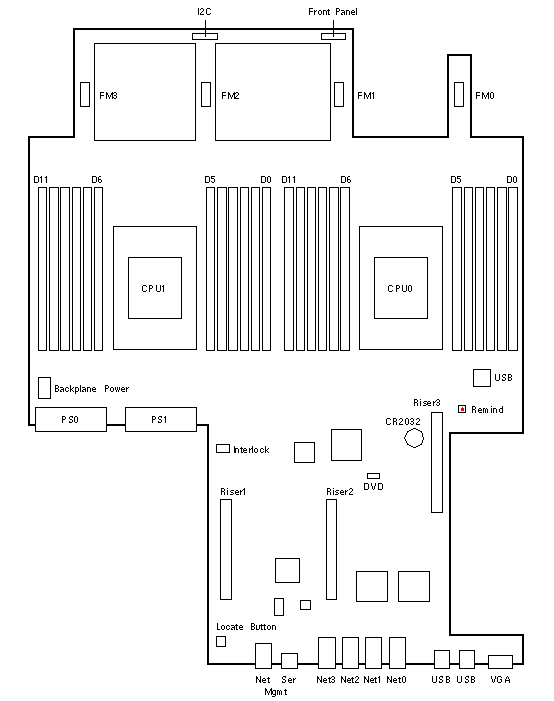

Oracle Server X5-2
| 7098505 |
7317947 |
7345179 |
Assembly/FRU
System Board 7092031
FRUID 7092031
Cable 7014226
Tray 7077529 |
Assembly/FRU
System Board 7317945
FRUID 7317945
Cable 7014226
Tray 7077529 |
Assembly/FRU
System Board 7345178
FRUID 7345178
Cable 7014226
Tray 7077529 |
Notes
- The System Board FRU includes CPU Tools 7080240 and 7082521,
two 250-1802 Cleaning Wipes,
and two 310-0065 Shin-Etsu X23-7783D Thermal Grease Syringes.
- Heatsink 7067728 is pre-greased with Shin-Etsu X23-7783D Thermal Grease.
- System Board 7098505 was inactivated in November 2015.
[E0027185]
- System Board 7098505 was used under D0003659, D0003722, D0003760,
D0003817, D0003851, and D0003900 until April 2016.
- For component installation guidelines, refer to the Service Manual and CAPs.
|
