Netra Server X5-2 - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|

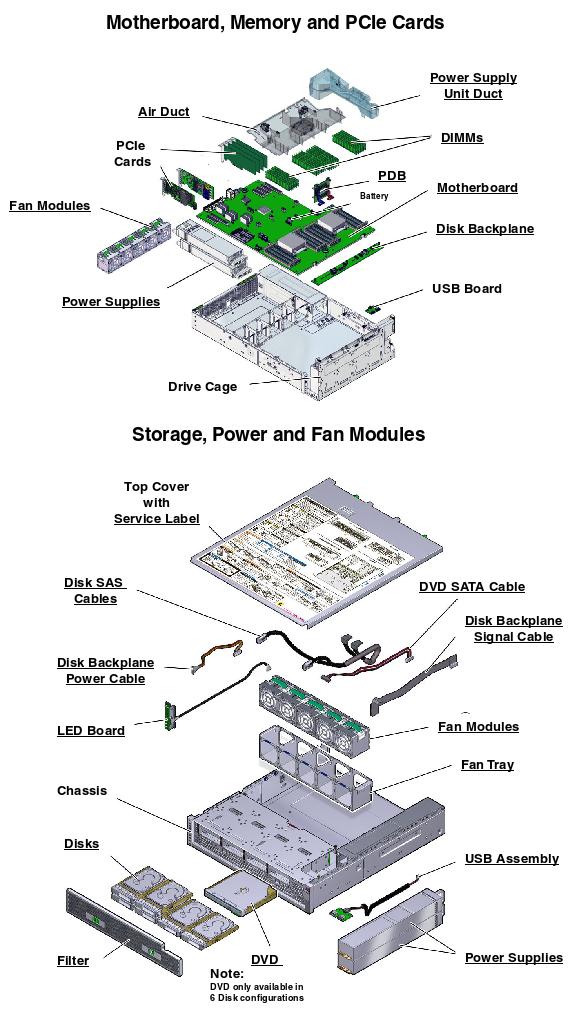

Batteries
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
150-4277
[C]
|
3V Lithium coin battery |
n/a |
|
CPU Module
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7026486 [F]
|
CPU Heatsink |
n/a |
| n/a |
7095102
[F]
|
8-Core 2.4GHz Intel E5-2630 v3, 85W |
n/a |
| n/a |
7095106 1
[F]
|
18-Core 2.3GHz Intel E5-2699 v3, 145W |
n/a |
1 In the Netra Server X5-2, CPU power is capped at 120W to meet NEBS standards.
|
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
7102869  Buy
|
7039990 [C]
|
MPO to MPO High Bandwidth QSFP Optical Cable, 10M |
n/a |
| 7102870 Buy
|
7039999 [C]
|
MPO to MPO High Bandwidth QSFP Optical Cable, 20M |
n/a |
| 7102871 Buy
|
7040001 [C]
|
MPO to MPO High Bandwidth QSFP Optical Cable, 50M |
n/a |
| 7105199 Buy
|
7063849 [C]
|
InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M |
n/a |
| 7105206 Buy
|
7063852 [C]
|
InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M |
n/a |
| 7111045 |
7097692 |
SAS Cable Kit |
n/a |
|
- 36-Pin SFF-8643 to 68-Pin SFF-8087 Cable, 0-3, 460mm
|
n/a |
|
- 36-Pin SFF-8643 to 68-Pin SFF-8087 Cable 4-7, 615mm
|
n/a |
| 7114369 Buy
|
7308821 [C]
|
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M |
n/a |
| 7114370 Buy
|
7308822 [C]
|
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M |
n/a |
| 7114371 Buy
|
7308823 [C]
|
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M |
n/a |
| X2121A-1M-N Buy
|
530-4444 [C]
|
10Gbps QSFP to QSFP Cable, 1m |
n/a |
| X2121A-2M Buy
|
530-4567 [C]
|
10Gbps QSFP to QSFP Cable, 2m |
n/a |
| X2121A-3M-N Buy
|
530-4445 [C]
|
10Gbps QSFP to QSFP Cable, 3m |
n/a |
| X2121A-5M-N Buy
|
530-4446 [C]
|
10Gbps QSFP to QSFP Cable, 5m |
n/a |
| X2130A-1M-N Buy
|
530-4441 [C]
|
10Gbps SFP+ TwinX Cable, 1m |
n/a |
| X2130A-3M-N Buy
|
530-4442 [C]
|
10Gbps SFP+ TwinX Cable, 3m |
n/a |
| X2130A-5M-N Buy
|
530-4443 [C]
|
10Gbps SFP+ TwinX Cable, 5m |
n/a |
| X333V-30-15-C14-N Buy
|
7040693 [C]
|
IEC 320 Sheet E to IEC 320 C13, 10A/250V, 3M |
n/a |
| n/a |
530-3100
|
RJ45F to DB9F Adapter |
n/a |
| n/a |
530-3623 |
Shielded RJ45 to RJ45 Cable, 4M |
n/a |
| n/a |
7040692 [C]
|
IEC 320 Sheet E to IEC 320 C13, 10A/250V, 2M |
n/a |
| n/a |
7082455 |
10-Pin USB to System Board Cable, 385mm |
n/a |
| n/a |
7087613 |
34-Pin PDB to System Board Cable, 80mm |
n/a |
| n/a |
7087614 [F]
|
2x 36-Pin SFF-8643 to 68-Pin SFF-8643 Cable, NVMe A, 410/420mm |
n/a |
| n/a |
7087615 [F]
|
2x 36-Pin SFF-8643 to 68-Pin SFF-8087 Cable, NVMe B, 470/480mm |
n/a |
| n/a |
7089783 [F]
|
Two Cable Bundle, 8-Slot NVMe, PCI Express, 2xHD8i to 2x68P |
n/a |
|
- 72-Pin SFF-8643 to 90° SFF-8087 Cable, 2 and 3 to A, 465mm
|
n/a |
|
- 72-Pin SFF-8643 to 90° SFF-8087 Cable, 0 and 1 to B, 500mm
|
n/a |
|
Chassis
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7082761
[F]
|
LED Alarm Assembly |
n/a |
|
- 14-Pin LED Alarm to System Board Cable, 280mm
|
n/a |
| n/a |
7097723 |
Power Supply Air Duct |
n/a |
| n/a |
7301504 |
System Air Duct |
n/a |
|
Communication
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7046442
[C]
|
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3 |
n/a |
NOTE: Oracle Dual Port EDR InfiniBand Adapter PN#7111714 and QDR InfiniBand Adapter PN#7112197 are
supported when server is used under commercial operating conditions only.
|
|
Disk Backplane
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7082063 |
6-Slot Disk Backplane Assembly |
n/a |
|
|
n/a |
|
- 6-Disk Backplane Air Filter Assembly
|
n/a |
|
- 6-Disk Backplane Air Filter Frame
|
n/a |
|
- 6-Disk Backplane Air Filter
|
n/a |
| n/a |
7082453 [F]
|
26-Pin System Board to Disk Backplane Signal Cable, 286mm |
n/a |
| n/a |
7082456 [F]
|
System Board to Disk Backplane SAS 0-3 Cable, 320mm |
n/a |
| n/a |
7082457 [F]
|
System Board to Disk Backplane SAS 4-7 Cable, 500mm |
n/a |
| n/a |
7082793
|
8-Slot Disk Cage Assembly |
n/a |
|
|
n/a |
|
- 8-Disk Backplane Air Filter Assembly
|
n/a |
|
- 8-Disk Backplane Air Filter Frame
|
n/a |
|
- 8-Disk Backplane Air Filter
|
n/a |
| n/a |
7087610 [F]
|
8-Pin System Board to Disk Backplane Power Cable, 230mm |
n/a |
|
Disks
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7110933 Buy
|
7094132 [C]
|
400GB Solid State SAS Drive Assembly |
n/a |
|
- 400GB SAS Solid State Drive [HSCAC2DA4SUN400G]
|
n/a |
|
|
n/a |
| 7111103 Buy
|
7093015 [C]
|
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)
|
n/a |
|
|
n/a |
| 7111108 Buy
|
7093037 [C]
|
1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)
|
n/a |
|
|
n/a |
| 7115079 Buy
|
7330686 [C]
|
800GB SAS3 Solid State Drive Assembly |
n/a |
|
- HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)
|
n/a |
|
|
n/a |
| 7118670 |
7350766 [C]
|
1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
| 7118672 |
7352257 [C]
|
600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
| 7118709 |
7350749 [C]
|
800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below) |
n/a |
|
- HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)
|
n/a |
|
|
n/a |
|
7110927
[S]
|
7302552 [C]
|
1.6TB Solid State NVMe Drive Assembly |
n/a |
|
- Intel SSDPE2ME016T4SP [SSDPE2ME016T4S] (1.6TB - 2.5" eMLC NVMe Solid State Drive)
|
n/a |
|
|
n/a |
| n/a |
7045850 [C]
|
1.2TB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HUC101212CSS600 [H101212SESUN1.2T] (1.2TB - 10000 RPM - SAS Disk)
|
n/a |
|
|
n/a |
| n/a |
7064135 [C]
|
600GB - 10000 RPM SAS SFF Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
|
n/a |
|
- Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)
|
n/a |
|
|
n/a |
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7100477 Buy
|
7070195
[C]
|
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP |
n/a |
| 7100481 Buy
|
7070202
[C]
|
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF |
n/a |
| 7100488 Buy
|
7070006
[C]
|
Dual 10-Gigabit Base-T PCI Express Gen2 |
n/a |
| 7114134 Buy
|
7319817
[C]
|
Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+ |
n/a |
| X1109A-Z Buy
|
7051223
[C]
|
Dual 10-Gigabit PCI Express Ethernet SFP+ LP |
n/a |
| X2129A-N Buy
|
530-4449
[C]
|
10Gb/Sec Short Wave SFP+ Transceiver |
n/a |
| X5562A-Z Buy
|
135-1205
[C]
|
10Gb/Sec Long Wave SFP+ Transceiver |
n/a |
|
X2124A
[S]
|
7326504
[C]
|
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver |
135-1204
[C]
|
| n/a |
135-1204
[C]
|
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver |
n/a |
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7019706 [C]
|
Single Fan Module |
n/a |
|
Fibre Channel
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7101674 Buy
|
7023303
[C]
|
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic |
n/a |
| 7101676 Buy
|
7023325
[C]
|
Pair of 16Gbps Short Wave SFP+ |
n/a |
|
- 16Gb/Sec Short Wave SFP+ Transceiver, QLogic
|
n/a |
| 7101678 Buy
|
7023315
[C]
|
Pair of 10Gbps Short Wave SFP+ |
n/a |
|
- 10Gb/Sec Short Wave SFP+ Transceiver, QLogic
|
n/a |
| 7101680 Buy
|
7023066
[C]
|
Pair of 16Gbps Long Wave SFP+ |
n/a |
| 7101684 Buy
|
7023036
[C]
|
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex |
n/a |
| 7101686 Buy
|
7023059
[C]
|
Pair of 16Gbps Short Wave SFP+ |
n/a |
|
- 16Gb/Sec Short Wave SFP+ Transceiver, Emulex
|
n/a |
|
7101688
[S]
|
7023057
[C]
|
Pair of 10Gbps Short Wave SFP+ |
n/a |
|
I/O
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7082759
[F]
|
USB Assembly |
n/a |
|
- 10-Pin USB to System Board Cable, 385mm
|
n/a |
|
Memory
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7111037 |
7097801
[C]
|
16GB DDR4-2133 Registered DIMM |
n/a |
| 7111039 |
7097802
[C]
|
32GB DDR4-2133 Registered DIMM |
n/a |
| n/a |
7090170
[C]
|
8GB USB Stick |
n/a |
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
565-1962 [F]
|
Wago DC Connector Set |
n/a |
|
|
n/a |
|
- Wago DC Connector Clamp Tool
|
n/a |
| n/a |
7081590
[C]
|
Type A249A 1100/1200 Watt AC Input Power Supply |
n/a |
| n/a |
7082760
[F]
|
Power Distribution Assembly |
n/a |
|
|
n/a |
|
- 34-Pin PDB to System Board Cable, 80mm
|
n/a |
| n/a |
7087767
[C]
|
Type D204A 1200 Watt DC Input Power Supply |
n/a |
| n/a |
7093598
[C]
|
Type A249B 1200 Watt AC Input Power Supply |
n/a |
| n/a |
7307199
[C]
|
D204A 1200 Watt DC Input Power Supply |
n/a |
| n/a |
7335755
[C]
|
D204A 1200 Watt DC Input Power Supply |
n/a |
| n/a |
7336327
[C]
|
Type A249B 1200 Watt AC Input Power Supply |
n/a |
| n/a |
7350539 [C]
|
Type A249B 1200 Watt AC Input Power Supply (Taiwan) |
n/a |
|
Rack
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7111050 |
7308030 |
19" 4 Post Slide Mount Kit and Cable Management Arm |
n/a |
| X7901A-4-N Buy
|
371-1478 |
19" 2-post Rackmount Kit |
n/a |
| XSR-JUMP-1MC13-N Buy
|
7015399 [C]
|
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M |
n/a |
| XSR-JUMP-2MC13-N Buy
|
7015400 [C]
|
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M |
n/a |
|
Removable Media
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7082458 [F]
|
DVD Cable |
n/a |
| n/a |
7309375
[C]
|
Tray-Load DVD Assembly |
n/a |
|
|
n/a |
|
|
n/a |
|
- 8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5)
|
n/a |
|
- 8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)
|
n/a |
|
|
n/a |
|
- 8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7)
|
n/a |
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| 7110117 |
7085209
[F]
|
8-Port 12Gbps SAS3 Internal RAID HBA |
n/a |
|
7086345
[F]
|
13.5V 6.4F Super Capacitor |
n/a |
|
7086346
[F]
|
Super Capacitor Cable |
n/a |
| 7110119 Buy
|
7085208
[C]
|
8-Port 12Gbps SAS-3 HBA (External) |
n/a |
|
7110865
[S]
|
7307468
[C]
|
1.6TB Flash Accelerator F160 NVMe Card w/ LP Bracket (B1 Silicon) |
7090698
[C]
|
|
System Board
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
7316666
[F]
|
Motherboard Assembly |
n/a |
|
|
n/a |
|
|
n/a |
| n/a |
7082502
[F]
[S]
|
Motherboard Assembly |
n/a |
|
|
n/a |
|
|
n/a |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|
| Code |
Manufacturing Part# |
Description |
| NS |
341-2610 |
PCI Filler Panel |
| NS |
530-4001 |
RJ45M to RJ45F Extender, 30mm |
| NS |
541-2629 |
2.5" Disk Drive Filler Panel |
| NS |
7079618 |
DDR4 Memory Filler Panel |
|
