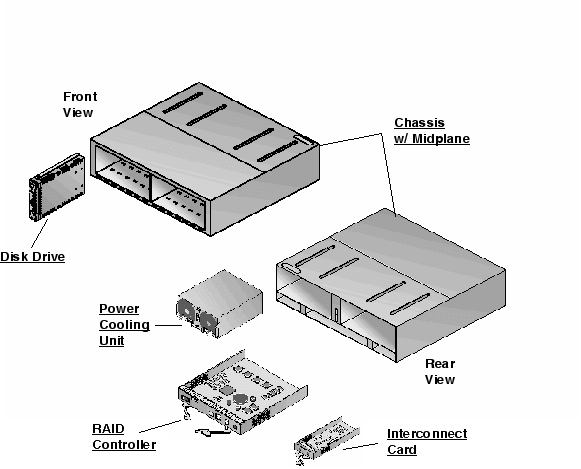

Sun StorEdge 6020/6120 Array - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Array Controller
Option # Manufacturing
Part #		 Description Previous
Part #
X6888A [S] 540-5559 [F] Sun StorEdge 6120/6920 RAID Controller Assembly n/a
n/a 540-5384 [F] Array Interconnect Card (loop card) Assembly n/a
NOTE: SFPs plug into the array controller
Backplane/Centerplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 540-5318 [F] Array Chassis and Midplane n/a
  • 340-7490
  • Front Chassis
 n/a
  • 340-7494
  • Rear Chassis
 n/a
  • 501-6338
  • Midplane
 n/a
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
X9715A 537-1020 [F] Fibre Optical Cable SC/SC, 5M n/a
X9721A 537-1036 [F] Fibre Channel Optical Cable LC/SC, 0.4M n/a
X973A 537-1004 [F] Fibre Channel Optical Cable 50/125 Multimode, 2M n/a
X978A 537-1006 [F] Fibre Channel Optical Cable 50/125 Multimode, 15M n/a
X311L [S] Localized Power Cord Kit - North America/Asia
180-1097 [C] Buy IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black n/a
X317L [S] Localized Power Cord Kit - U.K.
180-1997 [C] Buy IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black n/a
X9720A [S] 130-4723 [F] Fibre Channel Cable Coupler SC/SC n/a
X9722A [S] 537-1035 [F] Fibre Channel Optical Cable LC/SC, 2M n/a
X9723A [S] 537-1033 [F] Fibre Channel Optical Cable LC/SC, 5M n/a
X9724A [S] 537-1034 [F] Fibre Channel Optical Cable LC/SC, 15M n/a
X9730A [S] 537-1057 [F] Fibre Channel Optical Cable LC/LC, 0.8M n/a
X9732A [S] 537-1041 [F] Fibre Channel Optical Cable LC/LC, 2M, 2.0M n/a
X9733A [S] 537-1042 [F] Fibre Channel Optical Cable LC/LC, 5M n/a
X9734A [S] 537-1043 [F] Fibre Channel Optical Cable LC/LC, 15M n/a
n/a 530-3211 [F] HSSDC2 to HSSDC2 Array Interconnect Cable (loop), 0.5M n/a
NOTE: SFPs plug into the array controller
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
X6815A 540-5330 [F] 73.4GB - 10000 RPM FC-AL, Disk assembly with 1 SPUD bracket and 1 of the following disks: n/a
  • Seagate ST373307FC [ST373307FSUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAP3735FC [MAP3735F SUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi DK32EJ-72FC [DK32EJ72FSUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373207FC [ST373207FSUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAT3073FC [MAT3073F SUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS1073FA [HUS1073FASUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAW3073FC [MAW3073FCSUN73G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS1073FA [HUS1073FASUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373207FC [ST373207FSUN72G]
    (73.4GB - 10000 RPM - FC-AL Disk)
 n/a
  • Spud3 Bracket Assembly
 n/a
X6817A 540-5471 [F] 146GB - 10000 RPM FC-AL, Disk assembly with 1 SPUD bracket and 1 of the following disks: n/a
  • Seagate ST3146807FC [ST314680FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAP3147FC [MAP3147F SUN146G]
    (146.8GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi DK32EJ-14FC [DK32EJ14FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3146707FC [ST314670FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAT3147FC [MAT3147F SUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS1014FA [HUS1014FASUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAW3147FC [MAW3147FCSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Hitachi HUS1014FA [HUS1014FASUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3146707FC [ST314670FSUN146G]
    (146GB - 10000 RPM - FC-AL Disk)
 n/a
  • Spud3 Bracket Assembly
 n/a
X6867A 540-5322 [F] 36.4GB - 15000 RPM FC-AL, Disk assembly with 1 SPUD bracket and 1 of the following disks: n/a
  • Seagate ST336752FC [ST336752FSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST336753FC [ST336753FSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAS3367FC [MAS3367F SUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST336754FC [ST336754FSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAU3036FC [MAU3036FCSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAX3036FC [MAX3036FCSUN36G]
    (36.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Spud3 Bracket Assembly
 n/a
X6893A [S] 540-5922 [F] 73.4GB - 15000 RPM FC-AL, Disk Assembly with Bracket and 1 disk: n/a
  • Seagate ST373453FC [ST373453FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAS3735FC [MAS3735F SUN36G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373454FC [ST373454FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAU3073FC [MAU3073FCSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAX3073FC [MAX3073FCSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Seagate ST373455FC [ST373455FSUN72G]
    (73.4GB - 15000 RPM - FC-AL Disk)
 n/a
  • Spud3 Bracket Assembly
 n/a
XTA-FC1CE-300G10K [S] 540-6344 [F] 300GB - 10000 RPM FC-AL, Disk assembly FRU with 1 Spud bracket and 1 of the following disks: n/a
  • Seagate ST3300007FC [ST330000FSUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAT3300FC [MAT3300F SUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
  • Fujitsu MAW3300FC [MAW3300FCSUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
  • Seagate ST3300007FC [ST330000FSUN300G]
    (300GB - 10000 RPM - FC-AL Disk)
 n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
X6748A 375-0118 Compact PCI (cPCI) Dual Channel FC n/a
SG-XPCI1FC-EM2 [S] 375-3304 2Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-JF2 [S] 375-3156 JNI 2Gb PCI Single FC Host Adapter n/a
SG-XPCI1FC-QF2 [S] 375-3102 2Gb PCI Single FC Host Adapter n/a
SG-XPCI1FC-QF4 [S] 375-3354 4Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-QL2 [S] 375-3383 2Gb PCI-X Single FC Host Adapter n/a
SG-XPCI2FC-EM2 [S] 375-3305 2Gb PCI-X Dual FC Host Adapter n/a
SG-XPCI2FC-JF2 [S] 375-3157 JNI 2Gb PCI Dual FC Host Adapter n/a
SG-XPCI2FC-QF2 [S] 375-3108 2Gb PCI/PCI-X Dual FC Host Adapter n/a
  • 240-4839
  • Low Profile Bracket
 n/a
SG-XPCI2FC-QF2-Z [S] 375-3363 2Gb PCI/PCI-X Dual FC Host Adapter n/a
  • 240-4839
  • Low Profile Bracket
 n/a
SG-XPCI2FC-QF4 [S] 7060890 4Gb PCI-X Dual FC Host Adapter 375-3294
SG-XPCIE1FC-QF4 [S] 375-3355 4Gigabit/Sec PCI Express Single FC Host Adapter n/a
SG-XPCIE2FC-QF4 [S] 375-3356 4Gigabit/Sec PCI Express Dual FC Host Adapter n/a
SG-XPCIE2FCGBE-E-Z [S] 371-4018 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex n/a
SG-XPCIE2FCGBE-Q-Z [S] 371-4017 4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic n/a
X6727A [S] 375-3030 PCI Dual FC Host Adapter+ n/a
X6757A [S] 375-3048 SBus Dual FC Network Adapter n/a
X6767A 1 [S] 375-3102 2Gb PCI Single FC Host Adapter n/a
X6768A 2 [S] 375-3108 2Gb PCI/PCI-X Dual FC Host Adapter n/a
  • 240-4839
  • Low Profile Bracket
 n/a
X6799A [S] 375-3019 3 PCI Single FC Host Adapter n/a
n/a 370-5211 [F] 2Gb/Sec Short Wave SFP Transceiver n/a
n/a 371-0099 [F] 2Gb/Sec Short Wave SFP Transceiver n/a
n/a 375-3294 4Gb PCI-X Dual FC Host Adapter n/a
1 X6767A changed to SG-XPCI1FC-QF2 in July 2003
2 X6768A changed to SG-XPCI2FC-QF2 in July 2003
3 375-3019 with SC connector is no longer available. The substitute adapter uses a smaller LC connector.
NOTE: For FRU/CRU status, see host system's Full Components List.
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 300-1562 4 [F] Type A176 410 Watt AC Input Power/Cooling Module, 410W n/a
n/a 370-4861 [F] NiMH Battery Pack (install on 300-1562) n/a
4 The power supply uses NiMH Battery 370-4861 (Battery is not included with power supply FRU, it must be ordered separately).
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
SR9-XKL038A-IP 595-6712 Sun Rack 900, Empty X-Option Rack without Power n/a
X6889A 340-7488 Sun StorEdge 6120 Deskside - Rack Ready Upgrade Kit n/a
SG-XARY030A [S] 595-4706 72 inch Sun StorEdge Expansion Cabinet n/a
TA-EXPCAB-060 [S] n/a Sun StorEdge 6000 Expansion Cabinet n/a
X6876A [S] 540-5895 Sun StorEdge 6120 3U Rack Kit for Sun Rack 900 n/a
X6886A [S] n/a Sun StorEdge 6120 3U Rack Kit n/a
  • 340-7489
  • Rack Mount Bracket
 n/a
Switch/Hub
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XSWM6140-64P 5 595-7135 McData Intrepid 6140 140-port Switch with 64 Ports active, option comes with rack mount kit n/a
  • 64-Port 6140 Switch
 n/a
SG-XSW16-2GB [S] 540-5404 [F] Sun StorEdge Network 2GB FC Switch-16 n/a
SG-XSW16-32P [S] 540-4751 [F] Sun StorEdge Network FC Switch-16 n/a
SG-XSW64-BASE [S] 370-5790 64 Port Base Unit 2Gb FC Switch (32 ports included with base unit) n/a
SG-XSW64-BLADE-8P [S] 370-5847 [F] 8 Port 2Gb FC Blade (Add up to 4 to SG-XSW64-BASE to achieve 64 ports) n/a
SG-XSW8-2GB [S] 540-5554 [F] Sun StorEdge Network 2GB FC Switch-8 n/a
SG-XSWBRO24K-32P [S] 370-6820 [F] 16-Port Switch Module n/a
370-7046 Brocade 24000 Director 32-Port Switch n/a
SG-XSWBRO24K-MOD [S] Brocade 24000 Director 16-port FC Switching Blade
370-6820 [F] 16-Port Switch Module n/a
SG-XSWBRO3200 [S] 370-5769 [F] Brocade Silkworm 3200 8-Port FC Switch n/a
SG-XSWBRO3250 [S] 370-6824 [F] Brocade 3252 Value Line 8-Port FC Switch n/a
370-7047 Brocade 3250 8-Port FC Switch n/a
SG-XSWBRO3250VL2 [S] 370-6824 [F] Brocade 3252 Value Line 8-Port FC Switch n/a
SG-XSWBRO3800 [S] 370-4949 [F] [S] Brocade Silkworm 3800 16-Port FC Switch n/a
SG-XSWBRO3850 [S] 370-6826 [F] Brocade 3852 Value Line 16-Port FC Switch n/a
370-7048 Brocade 3850 16-Port FC Switch n/a
SG-XSWBRO3850VL2 [S] 370-6826 [F] Brocade 3852 Value Line 16-Port FC Switch n/a
SG-XSWBRO3900 [S] 370-6078 [F] Brocade Silkworm 3900 32-Port FC Switch n/a
SG-XSWBRO4100-16P [S] 370-7756 [F] Brocade Silkworm 4100 FC Switch (16 Ports) n/a
SG-XSWBRO4100-32P [S] 370-7770 Brocade Silkworm 4100 FC Switch (32 Ports) n/a
SG-XSWM6140-RK64I 6 [S] 595-7137 McData Intrepid 6140 140-port Switch with 64 ports active in a McData Fabricenter Rack (International power) n/a
  • International Fabricenter Rack with 64-Port 6140 Switch
 n/a
SG-XSWM6140-RK64P 7 [S] 595-7136 McData Intrepid 6140 140-port Switch with 64 ports active in a McData Fabricenter Rack (US power) n/a
  • Domestic Fabricenter Rack with 64-Port 6140 Switch
 n/a
SG-XSWMD4300-12P 8 [S] 595-6748 2GB Short Wave SFP GBIC 4-Pack (×3) n/a
  • 2Gb/Sec Short Wave SFP Transceiver
 n/a
595-7161 12-Port Sphereon 4300 Switch Assembly n/a
  • McData Sphereon 4300 12-port Switch
 n/a
SG-XSWMD4500-8P 9 [S] 370-6085 McData Sphereon 4500 24-port Switch with 8 ports activated n/a
SG-XSWMD4500-UPG [S] 595-7116 McData Sphereon 4500 8 port activation license key, activates 8 additional ports n/a
SG-XSWQLG5200-20P [S] 370-7694 10 QLogic 5200 Switch (20 ports active) n/a
SG-XSWQLG5200-8P [S] 370-7664 [F] QLogic 5200 Switch (8 ports active) n/a
X6746A [S] Redundant FC 8-port Switch Option (two 8-port switches)
540-4372 [F] StorEdge Network FC Switch-8 n/a
5 Not qualified with the Sun StorEdge 6120 in a Non Solaris configuration due to bug ID 4737352.
6 Not qualified with the Sun StorEdge 6120 in a Non Solaris configuration due to bug ID 4737352.
7 Not qualified with the Sun StorEdge 6120 in a Non Solaris configuration due to bug ID 4737352.
8 Not qualified with the Sun StorEdge 6120 in a Non Solaris configuration due to bug ID 4737352.
9 Not qualified with the Sun StorEdge 6120 in a Non Solaris configuration due to bug ID 4737352.
10 Sixteen 2-Gb ports and four 10-Gb ports activated.
NOTE: SFPs are used in connecting these switches to this array. The SFPs plug into the switch and the array controller

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

Sun StorEdge 6020/6120 Array Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
NS 530-2991 [F] Ethernet Cable, 6 Meter
NS 540-5278 Disk Drive Slot Filler
NS 540-5482 RAID Controller Slot Filler
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
