Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition | ||
|
|||
 |
|||||||||||||||||
Delta DPS-410BB
| |||||||||||||||||
| 300-1562 |
|---|
|
Type A176 AC Input Power Supply w/o NiMH Battery 370-4861 |

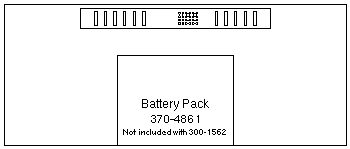

Front View |

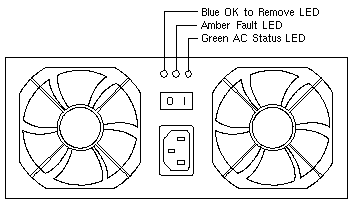

Rear View |
| 100-240V | 47-63Hz | 7 Amps Max |
| +3.3V | +5V | +12V | -12V | +12VSB |
| 15.0A | 22.2A | 14.0A | 0.416A | 6.6A |
* Specifications printed on the Power Supply
| | | |
|
