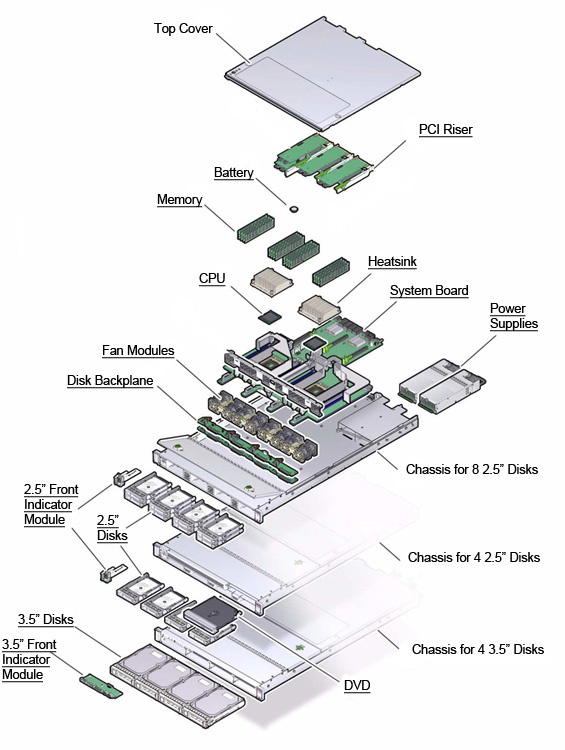

Sun Server X3-2 / Sun Fire X4170 M3 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
150-3993
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
n/a
7020774 [F]
Pre-Greased CPU Heatsink
n/a
n/a
7026168
CPU Installation/Removal Tool
n/a
n/a
7026878
[F]
2.9GHz Intel 8-core Xeon E5-2690, 135W
n/a
n/a
7026881
[F]
2.2GHz Intel 8-core Xeon E5-2660, 95W
n/a
n/a
7026882
[F]
2.5GHz Intel 6-core Xeon E5-2640, 95W
n/a
n/a
7026883
[F]
2.4GHz Intel 4-Core Xeon E5-2609, 80W
n/a
NOTE: CPU Installation/Removal Tool ships with each CPU FRU
Cables
Option #
Manufacturing
Description
Previous
7102869 Buy
7039990 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 10M
n/a
7102870 Buy
7039999 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 20M
n/a
7102871 Buy
7040001 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 50M
n/a
X2121A-1M-N Buy
530-4444 [C]
10Gbps QSFP to QSFP Cable, 1m
n/a
X2121A-2M Buy
530-4567 [C]
10Gbps QSFP to QSFP Cable, 2m
n/a
X2121A-3M-N Buy
530-4445 [C]
10Gbps QSFP to QSFP Cable, 3m
n/a
X2121A-5M-N Buy
530-4446 [C]
10Gbps QSFP to QSFP Cable, 5m
n/a
X2130A-1M-N Buy
530-4441 [C]
10Gbps SFP+ TwinX Cable, 1m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
n/a
7019614 [F]
Cable Kit
n/a
n/a
Dual Backplane Power Cable n/a
Single Backplane Power Cable n/a
n/a
Disk Data Cable, SFF-8087 to SFF-8643, 620mm n/a
Front Indicator Module Cable n/a
Disk Data Cable, SFF-8087 to SFF-8643, 650mm n/a
n/a
Communication
Option #
Manufacturing
Description
Previous
X4242A
[S]
7092767
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
375-3696
[C]
n/a
375-3696
[C]
Dual 40Gbps InfiniBand 4x QDR PCI Express Low Profile Host Channel Adapter
n/a
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
7014619
2.5" Lightpipe Assembly
n/a
n/a
7039833
8-Slot 2.5" Disk Cage Assembly
n/a
n/a
n/a
n/a
Dual Backplane Power Cable n/a
Front Indicator Module Cable n/a
4-Slot 2.5" Disk Backplane Assembly n/a
4-Slot 3.5" Disk Backplane n/a
7014619
350-1693
7045703 +
350-1693
7047794 +
7045703
2.5" Disk Cage Front Indicator Module 7039841 [F]
n/a
n/a
7039834
4-Slot 2.5" Disk Cage Assembly
n/a
n/a
n/a
n/a
Single Backplane Power Cable n/a
Front Indicator Module Cable n/a
4-Slot 2.5" Disk Backplane Assembly n/a
4-Slot 3.5" Disk Backplane n/a
7014619
2.5" Disk Cage Front Indicator Module n/a
n/a
n/a
7043563
4-Slot 3.5" Disk Cage Assembly
n/a
n/a
Single Backplane Power Cable n/a
Front Indicator Module Cable n/a
4-Slot 3.5" Disk Backplane Assembly n/a
n/a
4-Slot 3.5" Disk Backplane n/a
7014384
3.5" Disk Cage Front Indicator Module n/a
n/a
Disks
Option #
Manufacturing
Description
Previous
7101423
[S]
7017183 [C]
100GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ100G3 [Inquiry Unknown] (100GB - 2.5" Solid State - SATA Disk) n/a
n/a
7101469
[S]
7017184 [C]
300GB Solid State SATA Drive Assembly
n/a
Intel SSDSA2BZ300G3 [Inquiry Unknown] (300GB - 2.5" Solid State - SATA Disk) n/a
n/a
7102760
[S]
7010036 [C]
3TB - 7200 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST33000650SS [ST33000SSSUN3.0T] (3TB - 7200 RPM - SAS Disk) n/a
Hitachi HUS723030ALS640 [H7230AS60SUN3.0T] (3TB - 7200 RPM - SAS Disk) n/a
Coral 3.5" Disk Drive Bracket n/a
XRA-SS1CR600G15K-N
[S]
542-0166 [C]
600GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST3600057SS [ST360057SSUN600G] n/a
Coral 3.5" Disk Drive Bracket n/a
542-0428 [C]
600GB - 15000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST3600057SS [ST360057SSUN600G] n/a
Hitachi HUS156060VLS600 [HUS1560SCSUN600G] n/a
Coral 3.5" Disk Drive Bracket n/a
XRA-SS2CF-600G10K2
[S]
542-0287 [C] Buy
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks;
n/a
Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk) n/a
Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk) n/a
Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk) n/a
n/a
XRB-SS2CF-300G10K2
[S]
542-0388 [C] Buy
300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk) n/a
Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk) n/a
Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7048474
[C]
+
7100481 Buy
7070202
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
7014747
[C]
7100488 Buy
7070006
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
7014776
[C]
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
375-3617
[C]
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
X5562A-Z Buy
135-1205
[C]
10Gb/Sec Long Wave SFP+ Transceiver
n/a
7105381
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
7105382
[S]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
SG-XPCIEFCOE2-Q-SR
[S]
7053422
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
375-3681
[C]
SG-XPCIEFCOE2-Q-TA
[S]
7053423
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
375-3682
[C]
X2124A
[S]
7326504
[C]
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
135-1204
[C]
n/a
135-1204
[C]
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a
n/a
375-3617
[C]
Dual 10-Gigabit Ethernet SFP+ LP
n/a
n/a
375-3681
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - SR
n/a
n/a
375-3682
[C]
Dual 10-Gigabit Ethernet PCI Express LP SFP+ FCoE CNA - Direct Attach
n/a
n/a
7014741
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
n/a
7014747
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a
n/a
7014776
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
n/a
7048474
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
7014741
[C]
Fan
Option #
Manufacturing
Description
Previous
n/a
7013526 [C]
Dual Counter Rotating Fan Module
n/a
40×56mm Dual Counter Rotating Fan n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
SG-XPCIE2FC-EM8-N
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
371-4306
[C]
SG-XPCIE2FC-QF8-N
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
n/a
371-4306
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
I/O
Option #
Manufacturing
Description
Previous
n/a
7039838 [C]
1-Slot PCI Express Riser Assembly
n/a
n/a
n/a
n/a
7039839 [C]
2-Slot PCI Express Riser Assembly
n/a
n/a
n/a
n/a
7048707 [C]
2-Slot PCI Express Riser Assembly
7039839 [C]
n/a
n/a
n/a
7048710 [C]
1-Slot PCI Express Riser Assembly
7039838 [C]
n/a
n/a
Memory
Option #
Manufacturing
Description
Previous
7100790
[S]
7020486
[C]
8GB DDR3-1600 DIMM, 1.35V
n/a
7100792
[S]
7038750
[C]
32GB DDR3-1066/DDR3-1333 DIMM, 1.35V
n/a
7100794
[S]
7018701
[C]
16GB DDR3-1600 DIMM, 1.35V
n/a
n/a
7038488
[C]
4GB USB 2.0 Flash Drive
n/a
Power
Option #
Manufacturing
Description
Previous
n/a
7060951 6
[C]
A256 600 Watt AC Input Power Supply
7047410
4
[S]
+
n/a
7079395
[C]
Type A256 600 Watt AC Input Power Supply
7060951 7
[C]
+
n/a
7038476
10
[S]
Type A256 600 Watt AC Input Power Supply
n/a
n/a
7047410
12
[S]
Type A256 600 Watt AC Input Power Supply
7038476
11
[S]
4 No longer available. Purged from inventory by GSAP 6239 in March 2014.5 No longer available. Purged from inventory by GSAP 6239 in March 2014.6 No longer available. Purged from inventory by GSAP 6239 in March 2014.7 No longer available. Purged from inventory by GSAP 6239 in March 2014.8 No longer available. Purged from inventory by GSAP 6239 in March 2014.9 No longer available. Purged from inventory by GSAP 6239 in March 2014.10 No longer available. Purged from inventory by GSAP 6239 in March 2014.11 No longer available. Purged from inventory by GSAP 6239 in March 2014.12 No longer available. Purged from inventory by GSAP 6239 in March 2014.
Rack
Option #
Manufacturing
Description
Previous
n/a
350-1287 [C]
1U/2U Cable Management Arm
n/a
n/a
350-1719 [C]
1U/2U Snap-In Slide Rail Rackmount Kit
n/a
n/a
7042273 [C]
1U/2U Cable Management Arm (Snap-in)
350-1287 [C]
Removable Media
Option #
Manufacturing
Description
Previous
n/a
541-4688 [C]
Slot-Load DVD Assembly
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
n/a
8x Slot-Load SATA DVD-Writer/24x CD-Writer n/a
n/a
7081551
[C]
Tray-Load DVD Assembly
n/a
n/a
8x Tray-Load SATA DVD-ROM Writer / 24x CD-ROM Writer n/a
n/a
SCSI
Option #
Manufacturing
Description
Previous
7105387
[S]
8-Port 6Gbps SAS-2 PCI Express HBA
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
SGX-SAS6-EXT-Z
[S]
7047853
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3641
[C]
SGX-SAS6-INT-Z
[S]
7047852
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
375-3640
[C]
SGX-SAS6-R-INT-Z
[S]
7047503
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
375-3701
[C]
7050794
[C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
371-4982 [C]
n/a
371-4982 [C]
6Gbps SAS-2 RAID PCI Battery Module, BBU08
n/a
n/a
375-3640
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3641
[C]
8-Port 6Gbps SAS-2 PCI Express HBA (LSI)
n/a
n/a
375-3701
[C]
8-Port 6Gbps SAS-2 RAID PCI Express HBA, B4 ASIC
n/a
System Board
Option #
Manufacturing
Description
Previous
n/a
7039829
[F]
X3-2 System Board Assembly
n/a
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
7048712
[F]
X3-2 System Board Assembly
7039829
[F]
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
NOTE: CPU Installation/Removal Tool ships with each System Board FRU
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
-
240-4674
PCI Express Filler Panel
-
350-1288
DIMM Slot Filler
-
541-2629
2.5" Disk Drive Filler Panel
-
NS
541-3066
3.5" Disk Filler Panel
NS
541-4595
X4170 M3 Base Chassis Assembly
NS
NS
NS
NS
NS
NS
7051125 14
X4170 M3 Base Chassis Assembly
NS
X4170 M3 Base Chassis Assembly
NS
NS
NS
NS
13 7051124 supercedes 540-4446.14 7051125 supercedes 541-4595.
