Sun Blade 6000 - Full Components List

Backplane/Centerplane Blade Cables Communication Ethernet Fan Fibre Channel Power SCSI System Service Processor Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

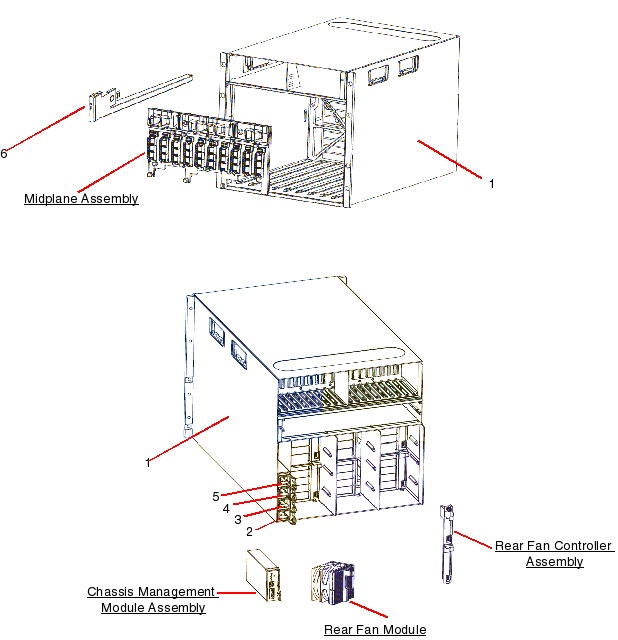

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
A90-B-MP-UPGKIT 4 [S]	541-3789 [F]	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	511-1298	PCI Express 2.0 Midplane	n/a
n/a	541-1983 1 [F]	PCI Express 1.1 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	501-7376	PCI Express 1.1 Midplane	n/a
n/a	541-4239 2 [F]	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	511-1487	PCI Express 2.0 Midplane	n/a
n/a	7045529 3 [F]	PCI Express 2.0 Midplane Assembly	n/a
	330-4398	Busbar Bolt Cover	n/a
	330-4399	Busbar Cover	n/a
	341-2337	Busbar	n/a
	341-3592	Busbar Spacer	n/a
	7045532	PCI Express 2.0 Midplane	n/a

1 541-1983 shipped in the Sun Blade 6000 A90-A chassis. 2 541-4239 shipped in the Sun Blade 6000 A90-D chassis. 3 7045529 shipped in the Sun Blade 6000 7105379 chassis which is functionally equivalent to A90-D and meet the requirements for EU Directive 2011/65/EU. 4 Last Order Date (LOD) was March 2011.

Blade
Option #	Manufacturing Part #	Description	Previous Part #

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869 Buy	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870 Buy	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871 Buy	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
X2121A-1M-N Buy	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-3M-N Buy	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N Buy	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2127A-10M Buy	530-4480 [C]	MPO to 4x LC Duplex Splitter Cable, 10m	n/a
X2127A-20M Buy	530-4481 [C]	MPO to 4x LC Duplex Splitter Cable, 20m	n/a
X2127A-50M Buy	530-4482 [C]	MPO to 4x LC Duplex Splitter Cable, 50m	n/a
X2130A-1M-N Buy	530-4441 [C]	10Gbps SFP+ TwinX Cable, 1m	n/a
X2130A-3M-N Buy	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N Buy	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
XSR-JUMP-1MC19-N Buy	7015420 [C]	16A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M	180-2382 [C]
XSR-JUMP-2MC19-N Buy	7015419 [C]	16A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M	180-2381 [C]
X2130A-10M-N [S]	530-4454 [C]	10Gbps SFP+ TwinX Cable, 10m	n/a
X4621A [S]	Dongle Cable Assembly for Universal Connector Port (UCP) with four connectors: 1 VGA HD15, 1 RJ45, 2USB, 1 DB9 Serial and 1 DB9 to RJ45 Adapter
	530-3813	DB9F to RJ45F, DCE Adapter	n/a
	530-3934 [C]	USB/VGA/DB-9/RJ45 Dongle Cable Adapter	n/a
X4622A [S]	Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
	530-3100	RJ45F to DB9F Adapter	n/a
	7046680 [C]	USB/VGA/RJ45 Dongle Cable Adapter	530-3936 [C]
X4622A-N [S]	Dongle II Cable Assembly for Universal Connector Port (UCP) with three connectors: 1 VGA HD15, 1 RJ45, 2×USB, and 1 DB9 to RJ45 Adapter
	530-3100	RJ45F to DB9F Adapter	n/a
	7046680 [C]	USB/VGA/RJ45 Dongle Cable Adapter	530-3936 [C]
X5074A-Z [S]	4 AC Input Power Cords, 20A, Americas Domestic, NEMA L6-20P to IEC320
	180-2005 [C] Buy	AC Input Power Cord, 16A, Americas, NEMA L6-20P to IEC320-C19, 4M	n/a
X5075A-Z [S]	4 AC Input Power Cords, 16A, International, IEC309 to IEC320-C19, 4m
	180-2004 [C]	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4M	n/a
X5076A-Z [S]	4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 1.5 M)
	180-2095	Power Cord, 16A, (IEC 320-C19 to IEC 320, 1.5 M)	n/a
X5077A-Z [S]	4 Power Cords, 20A, (IEC 320-C19 to IEC 320, 2.0 M)
	180-2096 [C]	Power Cord, 20A, (IEC 320-C19 to IEC 320, 2.0 M)	n/a
X5915A [S]	2 AC Power Cords and Adapters, 30A, NEMA L6-20R to L6-30P, 4M
	7055057 [C]	Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M	375-3493 [C]
n/a	180-2381 [C]	20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 2M	n/a
n/a	180-2382 [C]	20A/250V 90° IEC 320 Sheet I to IEC 320 C19 Cord, 1M	n/a
n/a	375-3493 [C]	Cable Assembly, Americas, NEMA L6-20R to L6-30P, 4M	n/a
n/a	530-3936 [C]	USB/VGA/RJ45 Dongle Cable Adapter	n/a
n/a	7040686 [C]	Power Cord, 16A, (IEC 320-C19 to IEC 320, 1.5 M)	180-2095
n/a	7040688 [C]	Power Cord, 16A, (IEC 320-C19 to IEC 320, 2.0 M)	180-2096 [C]
n/a	7040702 [C]	AC Input Power Cord, 16A, International, IEC309 to IEC320-C19, 4m	180-2004 [C]

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1288A-Z [S]	375-3439 [C]	Dual Port 20Gb/sec 4x InfiniBand Host Channel Adapter PCI Express ExpressModule	n/a
X4216A-Z [S]	375-3548 [C]	Dual Port 20Gb/sec 4x InfiniBand Host Channel Adapter PCI Express ExpressModule	n/a
X4219A-Z [S]	375-3605 [C]	Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express ExpressModule	n/a
X4243A [S]	375-3697 [C]	Dual 40Gbps InfiniBand 4x QDR PCI Express ExpressModule Host Channel Adapter	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100090	7052308 [C]	Virtualized 40-Gigabit Ethernet Network Express Module	7020536 [C]
	7052307	NEM Board	n/a
X2124A-N Buy	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	135-1204 [C]
X2129A-N Buy	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	135-1196 [C]
X5562A-Z Buy	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
7100483 [S]	7070211 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, UTP	7048479 [C]  + 7014759 [C]
7100486 [S]	7048478 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, MMF	7014763 [C]
7100490 [S]	7014780 [C]	Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule	n/a
7105397 [S]	10-port, GbE, Pass-Thru Network Express (NEM) Module
	7051003 [C]	10-port, GbE, Pass-Thru Network Express (NEM) Module	n/a
	7068169 [C]	10-port, GbE, Pass-Thru Network Express (NEM) Module	n/a
SG-XEMFCOE2-Q-SR [S]	7053425 [C]	Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR	375-3684 [C]
SG-XEMFCOE2-Q-TA [S]	7053426 [C]	Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA	375-3685 [C]
X1028A-Z [S]	541-2400 [C]	x8 PCI Express Dual 10-Gigabit Ethernet ExpressModule	n/a
X1108A-Z [S]	375-3591 [C]	x8 PCI Express Dual 10-Gigabit SFP+ Ethernet ExpressModule	n/a
X1110A-Z [S]	7051227 [C]	Dual 10-Gigabit SFP+ Ethernet ExpressModule	375-3616 [C]
X2073A [S]	7092924 [C]	24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM)	7078195 [C]  + 7053929 [C] 541-3770 [C]
X2123A [S]	135-1203 [C]	1.25Gb/Sec Copper SFP Transceiver	n/a
X2124A [S]	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	135-1204 [C]
X4212A 8 [S]	540-7589 [C]	14-Port Multi-Fabric Network Express Module (NEM)	n/a
	501-7845	NEM+ Board	n/a
X4236A [S]	541-2760 [C]	24-Port Multi-Fabric Network Express Module (NEM)	n/a
X4238 9 [S]	540-7695 [C]	16-Port Virtualized Multi-Fabric Network Express Module (NEM), Assembly	n/a
	501-7995	NEM Board	n/a
X4250A [S]	371-1451 [C]	10-port, GbE, Pass-Thru Network Express (NEM) Module	n/a
	7068165 [C]	10-port, GbE, Pass-Thru Network Express (NEM) Module	n/a
X4338A 10 [S]	542-0406 [C]	16-Port Virtualized Multi-Fabric 10GbE M2 Network Express Module (NEM), Assembly	540-7961 [C]
	511-1676	NEM Board	n/a
X5561A-Z [S]	530-4449 [C] Buy	10Gb/Sec Short Wave SFP+ Transceiver	135-1196 [C]
X5561A-Z-N [S]	530-4449 [C] Buy	10Gb/Sec Short Wave SFP+ Transceiver	135-1196 [C]
X7282A-Z [S]	541-0924 [C]	x4 PCI Express Dual Gigabit Ethernet UTP ExpressModule	n/a
X7283A-Z [S]	541-1206 [C]	x4 PCI Express Dual Gigabit Ethernet MMF ExpressModule	n/a
X7284A-Z [S]	7055026 [C]	x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule	375-3498 [C]
X7287A-Z [S]	541-2487 [C]	x8 PCI Express Quad Gigabit Ethernet UTP ExpressModule	n/a
n/a	135-1196 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
n/a	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a
n/a	375-3498 [C]	x4 PCI Express Quad Gigabit Ethernet UTP ExpressModule	n/a
n/a	375-3616 [C]	Dual 10-Gigabit SFP+ Ethernet ExpressModule	n/a
n/a	375-3684 [C]	Dual 10-Gigabit Ethernet PCI Express ExpressModule SFP+ FCoE CNA - SR	n/a
n/a	375-3685 [C]	Dual 10-Gigabit Ethernet PCI Express ExpressModule FCoE CNA - TA	n/a
n/a	540-7961 [C]	16-Port Virtualized Multi-Fabric 10GbE M2 Network Express Module (NEM), Assembly	n/a
	511-1399	NEM Board	n/a
n/a	541-3770 [C]	24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM)	n/a
n/a	7014759 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, UTP	n/a
n/a	7020536 [C]	Virtualized 40-Gigabit Ethernet Network Express Module	n/a
	7020535	NEM Board	n/a
n/a	7048479 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, UTP	7014759 [C]
n/a	7053929 [C]	24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM)	541-3770 [C]
n/a	7069995 [C]	Dual 10-Gigabit Base-T PCIe 2.0 ExpressModule	n/a
n/a	7070206 [C]	Quad Port GbE PCI Express 2.0 ExpressModule, MMF	n/a
n/a	7078195 [C]	24-Port 10-Gigabit Ethernet Switched Network Express Module (NEM)	7053929 [C]  + 541-3770 [C]

8 Compatible in A90-B chassis. 9 Compatible in A90-A and A90-B chassis. 10 Compatible in A90-B and A90-D chassis.

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-1446 [C]	Rear Fan Controller Assembly	n/a
	501-7377	Rear Fan Controller Board	n/a
n/a	371-1450 [C]	Rear Fan Module (RFM)	n/a
n/a	371-4753 11 [C]	Rear Fan Module (RFM)	n/a
n/a	7068168 [C]	Rear Fan Controller Assembly	371-1446 [C]
	501-7377	Rear Fan Controller Board	n/a

11 Shipped in the Sun Blade 6000 A90-D chassis.

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101676 Buy	7023325 [F]	Pair of 16Gbps Short Wave SFP+	n/a
	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678 Buy	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101680 Buy	7023066 [C]	Pair of 16Gbps Long Wave SFP+	n/a
	7023064	16Gb/Sec Long Wave SFP+ Transceiver, QLogic	n/a
7101686 Buy	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
	7023053	16Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
7101682 [S]	7023304 12 [C]	Dual 16Gbps Fibre Channel / 10Gbps FCoE HBA Module, QLogic	n/a
7101688 [S]	7023057 [C]	Pair of 10Gbps Short Wave SFP+	n/a
	7023046	10Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
7101690 [S]	7023043 [C]	Sun Storage Dual 16 Gb Fibre Channel ExpressModule Universal HBA, Emulex	n/a
7105393 [S]	7053435 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex	n/a
SG-XPCIE2FC-EB4-Z [S]	375-3386 [C]	4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, Emulex	n/a
SG-XPCIE2FC-QB4-Z [S]	375-3384 [C]	4Gb/sec PCI Express Dual Fibre Channel ExpressModule Host Adapter, QLogic	n/a
SG-XPCIE2FCGBE-E-Z [S]	371-4018 [C]	4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, Emulex	n/a
SG-XPCIE2FCGBE-Q-Z [S]	371-4017 [C]	4Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet ExpressModule Host Adapter, QLogic	n/a
SG-XPCIEFCGBE-E8-N [S]	371-4666 13 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex	n/a
SG-XPCIEFCGBE-E8-Z [S]	371-4666 14 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, Emulex	n/a
SG-XPCIEFCGBE-Q8-N [S]	371-4522 15 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic	n/a
SG-XPCIEFCGBE-Q8-Z [S]	371-4522 16 [C]	8Gb/sec PCI Express Dual FC / Dual Gigabit Ethernet Host Adapter ExpressModule, QLogic	n/a

12 See component page for more information regarding SFPs. 13 Two SFPs are included, see component page for more information. 14 Two SFPs are included, see component page for more information. 15 Two SFPs are included, see component page for more information. 16 Two SFPs are included, see component page for more information.

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1802 [C]	Type A206 5600 Watt AC Input Power Supply	n/a
	371-2138 [C]	Power Supply Fan Tray	n/a
n/a	300-2190 [C]	Type A206 5600 Watt AC Input Power Supply	n/a
	371-4208 [C]	Power Supply Fan Tray	n/a
n/a	300-2259 17 [C]	Type A251 5740 Watt AC Input Power Supply	n/a
	371-4653 [C]	Power Supply Fan Tray	n/a
n/a	7060590 [C]	Type A251 5740 Watt AC Input Power Supply	300-2259 18 [C]
	371-4653 [C]	Power Supply Fan Tray	n/a
n/a	7081582 [C]	Type A251 5740 Watt AC Input Power Supply	n/a
	371-4653 [C]	Power Supply Fan Tray	n/a

17 Shipped in the Sun Blade 6000 A90-D. 18 Shipped in the Sun Blade 6000 A90-D. NOTE: Fan Trays 371-2138, 371-4208 and 371-4653 are not mechanically interchangeable.

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7105388 [S]	Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule
	7047854 [C]	Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule	n/a
SG-XPCIE8SAS-EB-Z [S]	375-3486 [C]	Sun StorageTek SAS Host Bus Adapter PCI Express ExpressModule	n/a
SGX-SAS6-EM-Z [S]	7047854 [C]	Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule	n/a
n/a	375-3642 [C]	Sun Storage 8-Port 6Gbps SAS HBA PCI Express ExpressModule	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
X4626A [S]	371-1447 21 [C]	Chassis Management Module (CMM) Assembly	n/a
	501-7379	Chassis Management Module (CMM) Board	n/a
	501-7985 [F]	Chassis Management Module (CMM) Assembly	501-7516
n/a	7019286 [C]	Chassis Management Module (CMM) Assembly	541-4340 19 [F] [S]
	511-1531	Chassis Management Module (CMM) Board	n/a
n/a	7045545 20 [C]	Chassis Management Module (CMM) Assembly	n/a
	7045547	Chassis Management Module (CMM) Board	n/a
n/a	7068170 [C]	Chassis Management Module (CMM) Assembly	n/a
	7045547	Chassis Management Module (CMM) Board	n/a

19 Shipped in the Sun Blade 6000 A90-D. 20 7045545 shipped in the Sun Blade 6000 7105379 chassis which is functionally equivalent to A90-D and meet the requirements for EU Directive 2011/65/EU. 21 Shipped in A90-A and A90-B chassis. Do not install in A90-D chassis. Do not install ILOM 4.0. NOTE: Shipped in the Sun Blade 6000 A90-D. CMM 7019286 or 7045545 are required to support NEM Option 7100090.

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
-	n/a	AC Input Line Filter, Schurter C20F
1	541-1487	Chassis Assembly
-	371-1444	Chassis Subassembly
1	541-2665	541-2665 Chassis Assembly (replaced 541-1487 July 2007)
-	330-4342	Midplane Air Baffle
-	371-3244	Chassis Subassembly
2	371-1449	AC1/PS0-AC0 Internal Power Cord, 802mm
3	371-1610	AC2/PS0-AC1 Internal Power Cord, 665mm
4	371-1611	AC3/PS1-AC0 Internal Power Cord, 584mm
5	371-1612	AC4/PS1-AC1 Internal Power Cord, 498mm
6	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
1	541-3800	541-3800 Chassis Assembly (replaced 541-2665 April 2009)
-	330-4342	Midplane Air Baffle
-	350-1689 22	Chassis Subassembly
2	371-1449	AC1/PS0-AC0 Internal Power Cord, 802mm
3	371-1610	AC2/PS0-AC1 Internal Power Cord, 665mm
4	371-1611	AC3/PS1-AC0 Internal Power Cord, 584mm
5	371-1612	AC4/PS1-AC1 Internal Power Cord, 498mm
6	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
1	541-4388	A90-D (PCI 2.0) Chassis Assembly
-	330-4342	Midplane Air Baffle
-	350-1689 23	Chassis Subassembly
2	371-1449	AC1/PS0-AC0 Internal Power Cord, 802mm
3	371-1610	AC2/PS0-AC1 Internal Power Cord, 665mm
4	371-1611	AC3/PS1-AC0 Internal Power Cord, 584mm
5	371-1612	AC4/PS1-AC1 Internal Power Cord, 498mm
6	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
1	7052318	A90-D (PCI 2.0) Chassis Assembly (Nov 2012)
-	330-4342	Midplane Air Baffle
-	371-3244	Chassis Subassembly
2	371-1449	AC1/PS0-AC0 Internal Power Cord, 802mm
3	371-1610	AC2/PS0-AC1 Internal Power Cord, 665mm
4	371-1611	AC3/PS1-AC0 Internal Power Cord, 584mm
5	371-1612	AC4/PS1-AC1 Internal Power Cord, 498mm
6	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
6	7068166 [C]	Front Indicator Module
6	371-1448 [C]	Front Indicator Module
-	501-7378	LED Board Assembly
NS	371-1737	Network Express Module (NEM) Filler Panel
NS	371-1738	Blade Filler Panel, [X4460A] [S]
NS	371-3245	Mounting Rail Kit
NS	371-3610	Shipping Bracket Kit
NS	541-0729	PCI Express Express Module Filler Panel
NS	341-1810	PCI Express Filler
NS	371-2986 24 [S]	Mounting Rail Kit

22 350-1689 replaced 371-3244 in the 541-3800 and 541-4388 chassis assemblies in January 2011. 23 350-1689 replaced 371-3244 in the 541-3800 and 541-4388 chassis assemblies in January 2011. 24 Kit 371-2986 is compatible with Chassis 371-1444 (Chassis Assembly 541-1487). NOTE: Chassis Subassembly 371-1444 was replaced by 371-3244 in July 2007.
