24-Port Multi-Fabric
Network Express Module
Option X4236A
| 501-7935 |
541-2760 |
|
NEM Board |
NEM Assy/FRU |

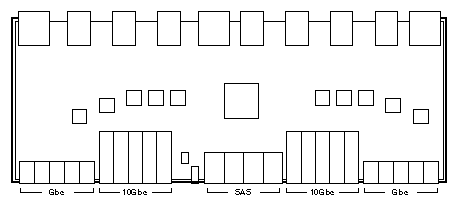

| Top View with cover removed |
 |
|
| Front View |
 |
|
Sun Blade 6000 Codename: Constellation 10 |
Notes
- Port numbering is unknown.
- The four SAS ports are not supported.
- NEM X4236A is supported with Sun Blade T6300, T6320, T6340, X6250,
X6275-GbE, and X6450 in the Sun Blade 6000 chassis.
- The minimum Sun Blade 6000 CMM Firmware is 2.0.3.3 (Supplement 1.3).
- The minimum T6300 System Firmware is 6.6.1.a (Patch
 136931-01).
- The minimum T6320 System Firmware is 7.0.9.c (Patch
127581-01).
Sun Blade X6250 Notes
- The minimum version of the Sun Blade X6250 is 540-7254-04 (375-3501-05).
- About 180 Sun Blade X6250 boards built on 06/09/08 were relabeled to the
new part numbers but were not reworked.
The changes required to support the Dual 10GbE Fabric Expansion Module
Option X1029A-Z are on
540-7254-05 (375-3501-06).
SAS Connectivity Matrix
| System
| Requires REM
| for SAS
Connectivity
to NEM
|
| Sun Blade T6320 |
X4601A or
X4607A |
X4236A |
| Sun Blade T6340 |
X4607A |
X4236A |
| Sun Blade X6450 |
X4607A or
X4620A |
X4236A |
| Sun Blade X6250 |
X4620A |
X4236A |
| SPARC T3-1B |
SGX-SAS6-REM-Z |
X4236A |
10Gigabit Ethernet (10GbE) Connectivity Matrix
| System
| Requires FEM
| for 10GbE
Connectivity
to NEM
|
| Sun Blade T6320 |
X4822A |
X4236A |
| Sun Blade T6340 |
X1029A-Z |
X4236A |
| Sun Blade X6250 |
X1029A-Z |
X4236A |
| Sun Blade X6450 |
X1029A-Z |
X4236A |
| SPARC T3-1B |
X5735A or
X4871A-Z |
X4236A |
References
- Sun Blade 6000 10GbE Multi-Fabric Network Express Module Documentation.
|
