16-Port Virtualized Multi-Fabric M2
Network Express Module

Codename: Hydra2

Option X4338A

511-1399 540-7961
NEM Board NEM Assy/FRU
511-1676 542-0406
NEM Board NEM Assy/FRU

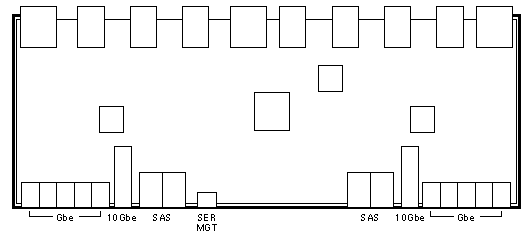

Top View with cover removed

Front View

Sun Blade 6000 Codename: Constellation 10

Notes

  1. The minimum Solaris operating system is Solaris 10 10/08.
  2. The four external SAS Ports are not supported.
  3. NEM 542-0406 1Gbps ports support cable lengths up to 100 Meters.
  4. Sun Blade 6000 PCI Express 2.0 Midplane 541-3789 or 541-4239 is required.
  5. NEM X4338A is supported in the Sun Blade 6000 A90-A, A90-B, and A90-D.
  6. NEM X4338A is supported with Sun Blade T6320, T6340, X6270 M2, X6275 M2 GbE, and SPARC T3-1B and T4-1B.

SAS Connectivity Matrix

System Requires REM for SAS
Connectivity
to NEM
Sun Blade T6320 SGX-SAS6-REM-Z X4338A
Sun Blade T6340 SGX-SAS6-REM-Z X4338A
Sun Blade X6270 M2 SGX-SAS6-REM-Z or
SGX-SAS6-R-REM-Z		 X4338A
SPARC T3-1B SGX-SAS6-REM-Z X4338A
SPARC T4-1B SGX-SAS6-REM-Z X4338A
Sun Blade X3-2B
(Sun Blade X6270 M3)		 SGX-SAS6-REM-Z or
SGX-SAS6-R-REM-Z		 X4338A

10Gigabit Ethernet (10GbE) Connectivity Matrix

System Requires FEM for 10GbE
Connectivity
to NEM
Sun Blade T6320 X4835A X4338A
Sun Blade T6340 X4835A X4338A
Sun Blade X6270 M2 X4263A X4338A
SPARC T3-1B X4263A X4338A
SPARC T4-1B 7011177 or
7041170		 X4338A
Sun Blade X3-2B
(Sun Blade X6270 M3)		 X4263A X4338A
Sun Blade X4-2B see footnote below

Sun Blade X4-2B Notes

  • Only 1GbE pass-thru ports are supported.

References

  1. Sun Blade 6000 Virtualized Multi-Fabric 10GbE M2 Network Express Module Documentation.
