Delta A251
5740 Watt Power Supply

300-2259 7060590 7081582 7336465
A251 AC Input Power Supply
Fan Tray 371-4653
Specification 950-5900
Drawing 386-5358
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition		 A251A AC Input Power Supply
Fan Tray 371-4653
Specification 950-5900
Drawing 386-5358
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition		 A251A AC Input Power Supply
Fan Tray 371-4653
Specification 7084313
Drawing 386-5358
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition		 A251A AC Input Power Supply
Fan Tray 371-4653
Specification 7084313
Drawing 386-5358
UL 60950-1 2nd Edition
EN 60950-1 2nd Edition
w/out CE or GB Mark
w/out EAC or KC Mark

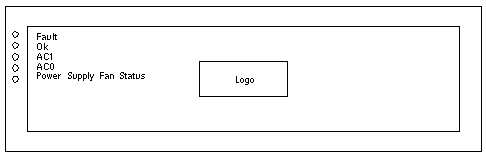

Front View

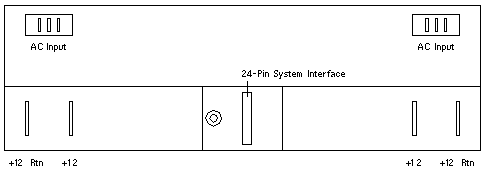

Rear View

AC Input

AC Input 1 200-240Vac 50-60Hz 16.0A
AC Input 2 200-240Vac 50-60Hz 16.0A

DC Output

A B C
+12.3V +12.3V +3.3V
240A 240A 12.0A

Notes

  1. The Power Supply weighs 9.5 Kilograms (21 Pounds).
  2. Power Supply Fan Tray 371-4653 is installed in the front of 300-2259.
  3. Fan Trays 371-2138, 371-4208, and 371-4653 are not mechanically interchangeable.
  4. Maximum continuous output is 5740 Watts.
  5. PSU 7336465 does not include the CE, BG, EAC, or KC Compliance Marks and will not be structured to any system build.
    Compliance Marks expired in June 2016.
  6. PSU 7336465 can not be used in the European Union, Germany, Russia, Belarus, Kazakhstan, or South Korea.
  7. PSU 7336465 was not added to Engineering Specification 7084313.
  8. PSU 7336465 was not released for use in the Sun Blade 6000.
