16-Port Virtualized Multi-Fabric
Network Express Module

Codename: Hydra

Option X4238

501-7995 540-7695
NEM Board NEM Assy/FRU

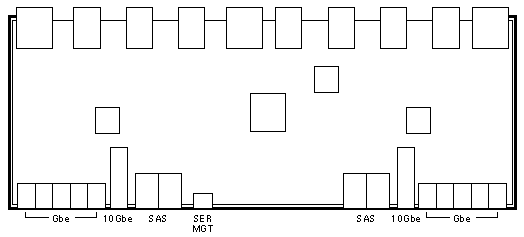

Top View with cover removed

Front View

Sun Blade 6000 Codename: Constellation 10

Notes

  1. The minimum Solaris operating system is Solaris 10 10/08.
  2. The hxge driver is required.
    The hxge driver is not in Solaris 10 10/08.
  3. The Tools and Drivers CD includes the hxge driver for Linux, Solaris, and Windows.
  4. The four external SAS Ports are not supported.
  5. Documentation is not included.
  6. NEM X4238 is supported with Sun Blade T6300, T6320, T6340, X6240, X6440,
    X6220, X6250, X6270, X6270 M2, X6275-GbE, and X6450 in the Sun Blade 6000 chassis.

SAS Connectivity Matrix

System Requires REM for SAS
Connectivity
to NEM
Sun Blade T6320 X4601A or
X4607A or
SGX-SAS6-REM-Z		 X4238
Sun Blade T6340 X4607A or
SGX-SAS6-REM-Z		 X4238
Sun Blade X6240 X4607A or
X4620A		 X4238
Sun Blade X6440 X4607A or
X4620A		 X4238
Sun Blade X6250 X4620A X4238
Sun Blade X6270 X4607A or
X4620A		 X4238
Sun Blade X6270 M2 SGX-SAS6-R-REM-Z X4238
Sun Blade X6450 X4607A or
X4620A		 X4238
SPARC T3-1B SGX-SAS6-REM-Z X4238

SAS Notes

  1. Sun Blade T6300 has a built-in controller for SAS connectivity to NEM X4238.
  2. Sun Blade X6220 uses the onboard LSI controller for SAS connectivity to NEM X4238.

10Gigabit Ethernet (10GbE) Connectivity Matrix

System Requires FEM for 10GbE
Connectivity
to NEM
Sun Blade T6320 X4835A X4238
Sun Blade T6340 X4835A X4238
Sun Blade X6240 X4263A X4238
Sun Blade X6440 X4263A X4238
Sun Blade X6250 X4681A X4238
Sun Blade X6270 X4263A X4238
Sun Blade X6270 M2 X4263A X4238
Sun Blade X6450 X4681A X4238
SPARC T3-1B X4263A X4238

10Gigabit/Sec Ethernet Notes

  1. Sun Blade T6300 does not support 10GbE connectivity to NEM X4238.
  2. Sun Blade X6220 does not support 10GbE connectivity.

References

  1. Sun Blade 6000 Virtualized Multi-Fabric 10GbE Network Express Module Documentation.
