24-Port 10-Gigabit Ethernet
Switched Network Express Module

Codename: Opus

<a href="../../Systems/SupportHeaders/ETHER_24Pt_10GbE_Switched_Network_Express.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Option X2073A

541-3770	7053929	7078195	7092924
NEM Assembly NEM Board 511-1288 Samsung NAND Flash	NEM Assembly NEM Board 7053930 Samsung NAND Flash	NEM Assembly NEM Board 7078194 Toshiba NAND Flash	NEM Assembly NEM Board 7078194 Toshiba NAND Flash

Top View with cover removed

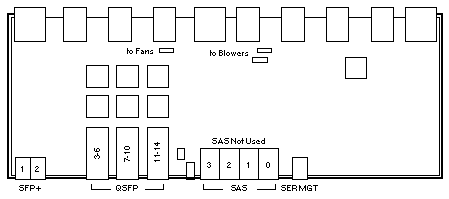

Front View

Additional Information & Views

Notes

The four external SAS ports are not supported.
Mixing NEM X2073A with any other NEM is not supported.
NEM X2073A is supported with Sun Blade T6320, T6340, and X6270.
Use SFP 135-1203, SW SFP 135-1204, LW SFP+ 135-1205, or SW SFP+ 530-4449.
The minimum Sun Blade 6000 CMM Firmware is 3.0.6.11 (Software 3.1).
The minimum Sun Blade X6270 Firmware is 3.0.6.10 (Software 2.1).

SAS Connectivity Matrix

System	Requires REM	for SAS Connectivity to NEM
Sun Blade T6320	SGX-SAS6-REM-Z	X2073A
Sun Blade T6340	SGX-SAS6-REM-Z	X2073A
Sun Blade X6270 M2	SGX-SAS6-REM-Z or SGX-SAS6-R-REM-Z	X2073A
SPARC T3-1B	SGX-SAS6-REM-Z	X2073A
SPARC T4-1B	SGX-SAS6-REM-Z	X2073A
Netra X6270 M2	SGX-SAS6-REM-Z or SGX-SAS6-R-REM-Z	X2073A
Netra SPARC T3-1B	SGX-SAS6-REM-Z	X2073A
Netra SPARC T4-1B	SGX-SAS6-REM-Z	X2073A
Sun Blade X3-2B (Sun Blade X6270 M3)	SGX-SAS6-REM-Z or SGX-SAS6-R-REM-Z	X2073A
Netra Blade X3-2B (Netra X6270 M3)	SGX-SAS6-REM-Z	X2073A

10Gigabit Ethernet (10GbE) Connectivity Matrix

System	Requires FEM	for 10GbE Connectivity to NEM
Sun Blade T6320	X4822A or X4871A-Z	X2073A
Sun Blade T6340	X4871A-Z	X2073A
Sun Blade X4-2B	X4871A-Z	X2073A
Sun Blade X6270	X4871A-Z	X2073A
Sun Blade X6270 M2	X4871A-Z	X2073A
SPARC T3-1B	X4871A-Z or X5735A	X2073A
SPARC T4-1B	X4871A-Z	X2073A
SPARC T5-1B	X4871A-Z	X2073A
Netra X6270 M2	X4871A-Z	X2073A
Netra SPARC T3-1B	X4871A-Z or X5735A	X2073A
Netra SPARC T4-1B	X4871A-Z	X2073A
Netra SPARC T5-1B	X4871A-Z	X2073A
Sun Blade X3-2B (Sun Blade X6270 M3)	X4871A-Z	X2073A
Sun Blade X4-2B	X4871A-Z	X2073A
Netra Blade X3-2B (Netra X6270 M3)	X4871A-Z	X2073A
Sun Blade X6275 10GbE M2	Uses onboard Mellanox Connect X-2 controller	X2073A

References

Sun Blade 6000 Ethernet Switched Network Express Module 24p 10GbE Documentation.
