14-Port Multi-Fabric
Network Express Module

Codename: NEM+

Option X4212A

501-7845 540-7589

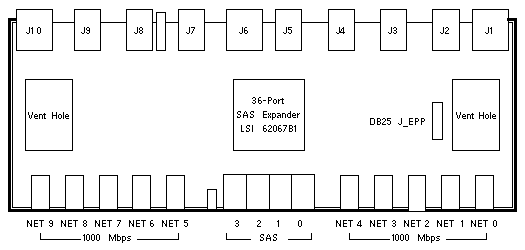

NEM+ Board NEM Assy/FRU

Top View with cover removed

Front View

Sun Blade 6000 Codename: Constellation 10

Notes

  1. Documentation and patches may refer to this product as NEMPLUS or NEM+.
  2. The four SAS Ports are not supported.
  3. NEM X4212A is supported with the following systems in the Sun Blade 6000 chassis:
    Sun Blade T6300, T6320, T6340, X6220, X6240, X6250, X6270, X6270 M2,
      X6275-GbE, X6275 M2-GbE, X6440, and X6450.
    SPARC T3-1B and T4-1B.

SAS Connectivity Matrix

System Requires REM for SAS
Connectivity
to NEM
Sun Blade T6320 X4601A or
X4607A		 X4212A
Sun Blade T6320+ (G2) X4607A X4212A
Sun Blade T6340 X4607A X4212A
Sun Blade X6240 X4607A or
X4620A		 X4212A
Sun Blade X6250 X4620A X4212A
Sun Blade X6270 X4607A or
X4620A		 X4212A
Sun Blade X6440 X4607A or
X4620A		 X4212A
Sun Blade X6450 X4607A or
X4620A		 X4212A

SAS Notes

  1. On Sun Blade T6300 and X6220, SAS connectivity is supported via the onboard LSI controller.
  2. Sun Blade X6270 M2, X6275-GbE, and X6275 M2-GbE do not support SAS.
  3. SPARC T3-1B and T4-1B do not support SAS.

References

  1. Sun Blade 6000 Modular System Documentation.
  2. Sun Blade 6000 Disk Module Documentation.
