Dual 10-Gigabit SFP+ FCoE CNA

Codename: Europa

Option SG-XEMFCOE2-Q-SR

375-3684	7053425
QLogic QEM8152-SR x8 Gen1 PCI Express ExpressModule x4 Gen2 PCI Express ExpressModule	QLogic QEM8152-SR x8 Gen1 PCI Express ExpressModule x4 Gen2 PCI Express ExpressModule

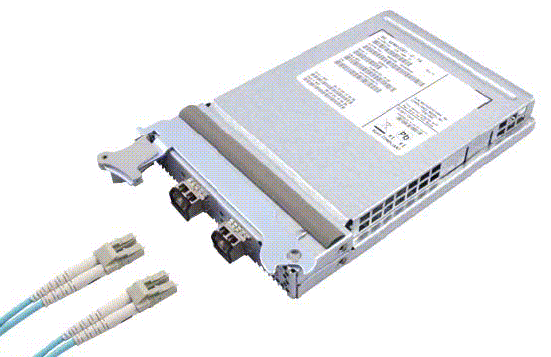

SG-XEMFCOE2-Q-SR with Optical Cables

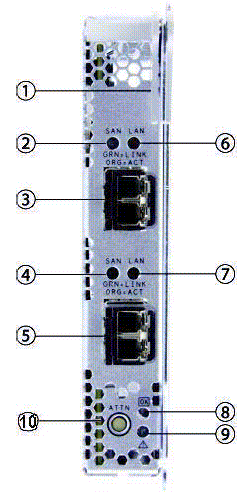

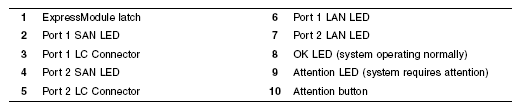

LEDs

Notes

1. SG-XEMFCOE2-Q-SR ships with two SFP+ short range (SR) optical modules
   and supports a maximum cabling distance of 300 meters over multi-mode fibre.
2. The Shortwave Optical Transceiver has no Oracle part number.
3. Documentation is not included.
4. PCI Identifiers are Vendor ID 0x1077 and Ethernet Device ID 0x8000.
5. PCI Identifiers are Vendor ID 0x1077 and Fibre Channel Device ID 0x8001.
6. Vital Product Data VPD=PN is 375-3684 for both part numbers.

References

1. Sun Storage 10 GbE FCoE ExpressModule Converged Network Adapter Documentation.
