Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

14-Port Virtualized 40-Gigabit Ethernet
Network Express Module

Codename: SOL NEM

<a href="../../Systems/SupportHeaders/ETHER_14Pt_40GbE_Virtual_Network_Express.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Option 7100090

7020535	7020536	7052307	7052308
NEM Board	NEM Assembly with 7020535	NEM Board	NEM Assembly with 7052307

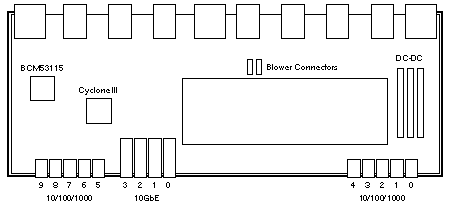

Top View with cover removed

Front View

Additional Information & Views

Notes

A90-A and A90-B are not supported.
A90-D CMM 7019286 or 7045545 with minimum firmware 3.0.16.14 (Software 4.1) is required.
This A90-D CMM fixed a grounding issue between the CMM and the Enclosure by replacing nylon washer 240-6368 with conductive washer 240-2785. This change is required for NEM Option 7100090.
A90-D Midplane 541-4239 or 7045529 is required.
Netra 6000 AC and DC are not supported.
Netra 6000 M2 Ac and DC are supported.

SAS Connectivity Matrix

System	Requires REM	for SAS Connectivity to NEM
Sun Blade X6270 M2	SGX-SAS6-REM-Z or SGX-SAS6-R-REM-Z	7100090
SPARC T3-1B	SGX-SAS6-REM-Z	7100090
SPARC T4-1B	SGX-SAS6-REM-Z	7100090
Sun Blade X3-2B (Sun Blade X6270 M3)	SGX-SAS6-REM-Z or SGX-SAS6-R-REM-Z	7100090
Netra X6270 M2	SGX-SAS6-REM-Z	7100090
Netra SPARC T4-1B	SGX-SAS6-REM-Z	7100090
Netra Blade X3-2B (Netra X6270 M3)	SGX-SAS6-REM-Z or SGX-SAS6-R-REM-Z [FW >= 1.020]	7100090
Storage Module M2	SGX-SAS6-REM-Z or SGX-SAS6-R-REM-Z	7100090

10Gigabit Ethernet (10GbE) Connectivity Matrix

System	Requires FEM	for 10GbE Connectivity to NEM
Sun Blade X6270 M2	7011177 or 7041170	7100090
SPARC T3-1B	7011177 or 7041170	7100090
SPARC T4-1B	7011177 or 7041170	7100090
Sun Blade X3-2B (Sun Blade X6270 M3)	7041170	7100090
Sun Blade X4-2B	7041170	7100090
Netra SPARC T4-1B	7011177 or 7041170	7100090
Netra X6270 M2	7011177 or 7041170	7100090
Netra Blade X3-2B (Netra X6270 M3)	7041170	7100090
Netra SPARC T5-1B	7041170	7100090

References

Sun Blade 6000 Virtualized 40 GbE Network Express Module Documentation.
