Delta A206
5600 Watt Power Supply
| 300-1802 |
300-2190 |
AC Input Power Supply
Fan Tray 371-2138
Specification 950-4769 |
AC Input Power Supply
Fan Tray 371-4208
Specification 950-4769 |

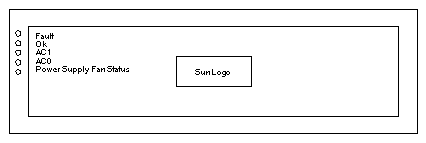

Front View
 |

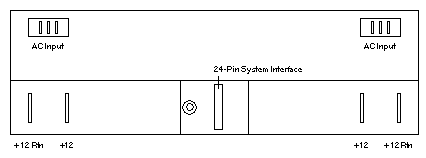

Rear View
 |
AC Input
| AC Input 1 |
200-240Vac |
50/60Hz |
16.0A |
| AC Input 2 |
200-240Vac |
50/60Hz |
16.0A |
DC Output
| A |
B |
C |
| +12.3V |
+12.3V |
+3.3V |
| 240A |
240A |
240A |
Netra 6000 Codename: N6000AC
Sun Blade 6000 Codename: Constellation 10 |
Notes
- The Power Supply weighs 9.5 Kilograms (21 Pounds).
- Power Supply Fan Tray 371-2138 is installed in the front of 300-1802.
- 300-1802-07 cannot be mixed with any other revision of 300-1802.
See FAB article
1001128.1
(formerly FCO A0292-1).
- Power Supply Fan Tray 371-4208 is installed in the front of 300-2190.
- Fan Trays 371-2138, 371-4208, and 371-4653 are not mechanically interchangeable.
- Maximum continuous output is 5600 Watts.
|
