Dual 16Gigabit/Sec Fibre Channel / 10Gigabit/Sec FCoE HBA Module

Codename: Ganymede-E

Option 7101690

7023043
Emulex LPem16002-M6-O x8 PCI Express Gen1/Gen2/Gen3

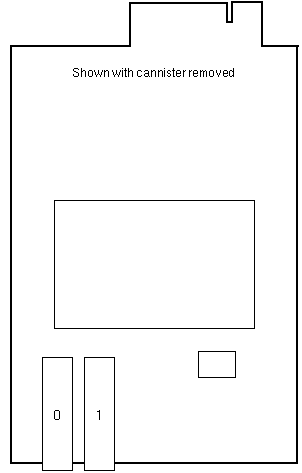

Additional Information & Views

Notes

1. HBA 7023403 Revision 07 with firmware 1.1.43.16 is required for use in SPARC T4-4.
2. Mixing Transceiver types is not supported. Use 16Gbps SFP+ or 10Gbps SFP+.
3. The 10Gbps SFP+ and 16Gbps SFP+ transceivers are sold and FRU'd as pairs.
4. Use 10Gbps Shortwave SFP+ 7023046, FRU Pair 7023057, Option 7101688.
5. Use 16Gbps Shortwave SFP+ 7023053, FRU Pair 7023059, Option 7101686.
6. Twinaxial Cables 373-0476, 373-0478, or 373-0480 can be used instead of SFP+.
7. Fibre Channel PCI Identifiers are Vendor ID 0x10df and Device ID 0xe200.
8. Ethernet PCI Identifiers are Vendor ID 0x10df and Device ID 0xe220.
9. FCoE PCI Identifiers are Vendor ID 0x10df and Device ID 0xe260.
10. Vital Product Data VPD=PN is 7023043.

References

1. Sun Storage 16 Gb Fibre Channel ExpressModule Universal HBA, Emulex, Documentation For HBA Model 7101690.
