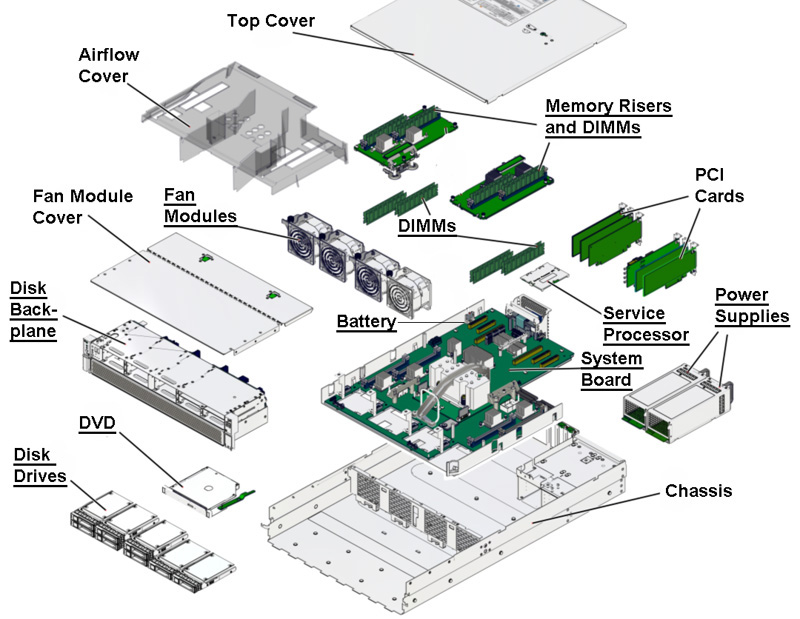

SPARC T7-1 - Full Components List

Batteries CPU Module Cables Chassis Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Power Rack Removable Media SCSI System Board System Service Processor Exploded View	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7097099	32-Core 4.133GHz CPU Mezzanine	n/a
n/a	7310197	32-Core 4.133GHz CPU Mezzanine	n/a
n/a	7315604	32-Core 4.133GHz CPU Mezzanine	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
7102869 Buy	7039990 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 10M	n/a
7102870 Buy	7039999 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 20M	n/a
7102871 Buy	7040001 [C]	MPO to MPO High Bandwidth QSFP Optical Cable, 50M	n/a
7105199 Buy	7063849 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 5M	n/a
7105206 Buy	7063852 [C]	InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M	n/a
7114369 Buy	7308821 [C]	MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M	n/a
7114370 Buy	7308822 [C]	MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M	n/a
7114371 Buy	7308823 [C]	MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M	n/a
X2121A-1M-N Buy	530-4444 [C]	10Gbps QSFP to QSFP Cable, 1m	n/a
X2121A-3M-N Buy	530-4445 [C]	10Gbps QSFP to QSFP Cable, 3m	n/a
X2121A-5M-N Buy	530-4446 [C]	10Gbps QSFP to QSFP Cable, 5m	n/a
X2125A-1M-N Buy	530-4450 [C]	QSFP to 4× SFP+ Splitter Cable, 1m	n/a
X2125A-3M-N Buy	530-4451 [C]	QSFP to 4× SFP+ Splitter Cable, 3m	n/a
X2125A-5M-N Buy	530-4452 [C]	QSFP to 4× SFP+ Splitter Cable, 5m	n/a
X2130A-3M-N Buy	530-4442 [C]	10Gbps SFP+ TwinX Cable, 3m	n/a
X2130A-5M-N Buy	530-4443 [C]	10Gbps SFP+ TwinX Cable, 5m	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a
n/a	530-3623	Shielded RJ45 to RJ45 Cable, 4M	n/a
n/a	7089783 [C]	Two Cable Bundle, 8-Slot NVMe, PCI Express, 2xHD8i to 2x68P	n/a
	n/a	72-Pin SFF-8643 to 90° SFF-8087 Cable, 2 and 3 to A, 465mm	n/a
	n/a	72-Pin SFF-8643 to 90° SFF-8087 Cable, 0 and 1 to B, 500mm	n/a
n/a	7094265 [F]	8-Slot Backplane Cable Kit	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7064125	8-Pin Dc Power Cable, 394mm	n/a
	7064127	26-Pin Ribbon Data Cable, 280mm	n/a
	7064128	DVD Data and Power Cable, 600mm/75mm	n/a
	7076125 1	SFF-8643 to SFF-8087 to 90° SFF-8087 Cable, 550mm/770mm	n/a
n/a	7095863	SAS Cable Guide, 90°	n/a
n/a	7096303	SAS Cable Guide, 45°	n/a
n/a	7316563 [F]	Cable Kit [SKU]	n/a
	7014226 [C]	Interlock Cable, 125mm	n/a
	7064125	8-Pin Dc Power Cable, 394mm	n/a
	7064127	26-Pin Ribbon Data Cable, 280mm	n/a
	7064128	DVD Data and Power Cable, 600mm/75mm	n/a
	7314510	Dual Mini SAS-3 HD8i Cable	n/a
	n/a	76-Pin SFF-8643 to SFF-8087 to 90° SFF-8087 807mm	n/a
	n/a	76-Pin SFF-8643 to SFF-8087 to SFF-8087 597mm	n/a
n/a	7346223 [F]	Cable Kit SKU	n/a
	7014226 [C]	Interlock Cable, 125mm	n/a
	7064125	8-Pin Dc Power Cable, 394mm	n/a
	7064127	26-Pin Ribbon Data Cable, 280mm	n/a
	7064128	DVD Data and Power Cable, 600mm/75mm	n/a
	7314510	Dual Mini SAS-3 HD8i Cable	n/a
	n/a	76-Pin SFF-8643 to SFF-8087 to 90° SFF-8087 807mm	n/a
	n/a	76-Pin SFF-8643 to SFF-8087 to SFF-8087 597mm	n/a

1 Cable 7076125 included in cable kit 7094265 is not supported in the SPARC T7-1.

Chassis
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7073525	Chassis Assembly	n/a
	7061427	Midwall Subassembly	n/a
	7082078	Chassis Subassembly	n/a
	7303490	Rear Cover Assembly	n/a
	150-4065	Interlock Switch Magnet	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
7104074 Buy	7092757 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	7046442 [C]
n/a	7046442 [C]	Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3	n/a

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7061430	8-Slot 2.5" Disk Cage Assembly	n/a
	7017231 [F]	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7077320 2	Fan Door Cover with Spacer 7300151	n/a
	7077622	8-Slot Disk Cage	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a
	7097205 [F]	8-Slot Backplane	n/a
n/a	7323223	8-Slot 2.5" Disk Cage Assembly	n/a
	7017231 [F]	Disk Backplane Right LED Indicator Module	n/a
	7023333	Right Indicator	n/a
	7064122	Left Indicator Ribbon Cable	n/a
	7064124	Right Indicator Ribbon Cable	n/a
	7077622	8-Slot Disk Cage	n/a
	7096185 [F]	Left Indicator Assembly	n/a
	7096184	Left Indicator w/o Button or Lightpipe	n/a
	7097205 [F]	8-Slot Backplane	n/a
	7323222	Fan Door Cover without Spacer 7300151	n/a

2 Spacer 7300151 was removed by D0003802, D0003838, and D0003943.

Disks
Option #	Manufacturing Part #	Description	Previous Part #
7110933 Buy	7094132 [C]	400GB Solid State SAS Drive Assembly	n/a
	7093645	400GB SAS Solid State Drive [HSCAC2DA4SUN400G]	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7111103 Buy	7093015 [C]	600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	7093013	Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7111108 Buy	7093037 [C]	1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:	n/a
	7093035	Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7115079 Buy	7330686 [C]	800GB SAS3 Solid State Drive Assembly	n/a
	7330684	HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7115457	7340035 [C]	6.4TB NVMe Solid State Drive Assembly	n/a
	7335940	Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7118670	7350766 [C]	1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below)	n/a
	7350764	HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7118672	7352257 [C]	600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below)	n/a
	7352258	HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7118709	7350749 [C]	800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below)	n/a
	7350742	HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7110927 [S]	7302552 [C]	1.6TB Solid State NVMe Drive Assembly	n/a
	7093848	Intel SSDPE2ME016T4SP [SSDPE2ME016T4S] (1.6TB - 2.5" eMLC NVMe Solid State Drive)	n/a
	541-2123	Marlin 2.5" Bracket	n/a
7113805 [S]	7317908 [C]	3.2TB NVMe Solid State Drive Assembly	n/a
	7314250	Samsung MZWLK3T2HCJL-000U3 [MS1PC2DD3ORA3.2T] (3.2TB - 2.5" Solid State - NVMe Disk)	n/a
	541-2123	Marlin 2.5" Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
7100477 Buy	7070195 [C]	Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP	n/a
7100481 Buy	7070202 [C]	Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF	n/a
7100488 Buy	7070006 [C]	Dual 10-Gigabit Base-T PCI Express Gen2	n/a
7114094 Buy	7305556 [C]	40GbE Long Wave QSFP+ Transceiver	n/a
7114134 Buy	7319817 [C]	Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+	n/a
X1109A-Z Buy	7051223 [C]	Dual 10-Gigabit PCI Express Ethernet SFP+ LP	n/a
X2124A-N Buy	7326504 [C]	10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver	135-1204 [C]
X2129A-N Buy	530-4449 [C]	10Gb/Sec Short Wave SFP+ Transceiver	n/a
X5562A-Z Buy	135-1205 [C]	10Gb/Sec Long Wave SFP+ Transceiver	n/a
n/a	135-1204 [C]	10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7045042 [C]	Dual Counter Rotating Fan Module	n/a
	7045041	80×80mm Counter Rotating Fan	n/a
n/a	7084402 [C]	Clear Plastic Air Duct Assembly, Lexan 141	n/a
n/a	7360261 [C]	Clear Plastic Air Duct Assembly, Lexan 221	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
7101674 Buy	7023303 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic	n/a
7101676 Buy	7023325 [C]	Pair of 16Gbps Short Wave SFP+	n/a
	7023324	16Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101678 Buy	7023315 [C]	Pair of 10Gbps Short Wave SFP+	n/a
	7023316	10Gb/Sec Short Wave SFP+ Transceiver, QLogic	n/a
7101684 Buy	7023036 [C]	Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex	n/a
7101686 Buy	7023059 [C]	Pair of 16Gbps Short Wave SFP+	n/a
	7023053	16Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
7101688 [S]	7023057 [C]	Pair of 10Gbps Short Wave SFP+	n/a
	7023046	10Gb/Sec Short Wave SFP+ Transceiver, Emulex	n/a
SG-XPCIE2FC-EM8-N [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	n/a
SG-XPCIE2FC-QF8-N [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7064634 [C]	8-Port PCI Express Switch	n/a
	7096186	PCI Express Switch w/o Bracket or Heatsink	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
7109515 Buy	Memory Riser Assembly, X-Option (Qty 2)
	7300948 [C]	Memory Riser Assembly	n/a
	7084075	Mounting Tray	n/a
	7094733	Protective Connector Cover	n/a
	7300945	Memory Riser	n/a
7113004 Buy	7317930 [C]	32GB Registered DDR4-2400 DIMM (runs at 2133MHz)	n/a
7114652 Buy	7326376 [C]	64GB Load Reduced DDR4-2400 DIMM (runs at 2133MHz)	n/a
7119480	7358668 [C]	16GB DDR4-2666 Registered DIMM (runs at 2133MHz)	n/a
7107207 [S]	7082850 [C]	16GB Registered DDR4-2133/2400 DIMM	n/a
7107209 [S]	7082851 [C]	32GB Load Reduced DDR4-2133 DIMM	n/a
n/a	7074618 [C]	2GB Embedded USB	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7044130 [C]	Type A258 1000 Watt AC Input Power Supply	n/a
n/a	7335737 [C]	Type A258 1000 Watt AC Input Power Supply	7044130 [C]
n/a	7352200 [C]	Type A258 1000 Watt AC Input Power Supply	7335737 [C]  + 7044130 [C]

Rack
Option #	Manufacturing Part #	Description	Previous Part #
n/a	350-1719 [C]	1U/2U Snap-In Slide Rail Rackmount Kit	n/a
n/a	7042273 [C]	1U/2U Cable Management Arm (Snap-in)	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7096965 [F]	Tray-Load DVD Assembly	n/a
	7082449	DVD Bezel	n/a
	7089963	8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5)	n/a
	7096434	Mounting Tray	n/a
	7318288	DVD Bezel	n/a
n/a	7319315 [F]	Tray-Load DVD Assembly	n/a
	7096434	Mounting Tray	n/a
	7309891	8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6)	n/a
	7318288	DVD Bezel	n/a
	7336333	8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7)	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
7110119 Buy	7085208 [C]	8-Port 12Gbps SAS-3 HBA (External)	n/a
7113826 Buy	7317693 [C]	3.2TB Flash Accelerator F320 NVMe Card	n/a
7115455	7335943 [C]	6.4TB Flash Accelerator F640 NVMe Card	n/a
7110865 [S]	7307468 [C]	1.6TB Flash Accelerator F160 NVMe Card w/ LP Bracket (B1 Silicon)	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7300942 [F]	System Board Assembly	n/a
	7051520	Rear I/O Board	n/a
	7074618 [C]	2GB Embedded USB	n/a
	7094165	System Board Tray	n/a
	7097099	32-Core 4.133GHz CPU Mezzanine	n/a
	7300937	System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2146 [C]	SSCC NVRAM	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7310207 [F]	System Board Assembly	n/a
	7051520	Rear I/O Board	n/a
	7074618 [C]	2GB Embedded USB	n/a
	7094165	System Board Tray	n/a
	7300937	System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2146 [C]	SSCC NVRAM	n/a
	7310197	32-Core 4.133GHz CPU Mezzanine	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7342207 [F]	System Board Assembly	7331683 [F] [S]  + 7315713 [F] [S] 7300942 [F]
	7051520	Rear I/O Board	n/a
	7074618 [C]	2GB Embedded USB	n/a
	7300937	System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2146 [C]	SSCC NVRAM	n/a
	7315604	32-Core 4.133GHz CPU Mezzanine	n/a
	7331682	System Board Tray	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7343554 [F]	System Board Assembly	7315713 [F] [S]  + 7300942 [F]
	7051520	Rear I/O Board	n/a
	7074618 [C]	2GB Embedded USB	n/a
	7094165	System Board Tray	n/a
	7300937	System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2146 [C]	SSCC NVRAM	n/a
	7315604	32-Core 4.133GHz CPU Mezzanine	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7354175 [F]	System Board Assembly	n/a
	7051520	Rear I/O Board	n/a
	7074618 [C]	2GB Embedded USB	n/a
	7300937	System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2146 [C]	SSCC NVRAM	n/a
	7331682	System Board Tray	n/a
	7342622	32-Core 4.133GHz CPU Mezzanine	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7315713 [F] [S]	System Board Assembly	7300942 [F]
	7051520	Rear I/O Board	n/a
	7074618 [C]	2GB Embedded USB	n/a
	7094165	System Board Tray	n/a
	7300937	System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2146 [C]	SSCC NVRAM	n/a
	7315604	32-Core 4.133GHz CPU Mezzanine	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a
n/a	7331683 [F] [S]	System Board Assembly	7315713 [F] [S]  + 7300942 [F]
	7051520	Rear I/O Board	n/a
	7074618 [C]	2GB Embedded USB	n/a
	7300937	System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
	525-2146 [C]	SSCC NVRAM	n/a
	7315604	32-Core 4.133GHz CPU Mezzanine	n/a
	7331682	System Board Tray	n/a
	530-4348	System Board to Rear I/O Board Signal Cable	n/a

System Service Processor
Option #	Manufacturing Part #	Description	Previous Part #
n/a	7306978	Service Processor Assembly	n/a
	350-1614	Service Processor Cover	n/a
	7306979	Service Processor	n/a
n/a	7319380 [C]	Service Processor Assembly	n/a
	350-1614	Service Processor Cover	n/a
	7319381	Service Processor	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	150-4065	Interlock Switch Magnet
NS	341-2610	PCI Filler Panel
NS	530-2889	RJ45 to DB25 Serial Port Adapter
NS	530-4348	System Board to Rear I/O Board Signal Cable
NS	7014216	Rear Disk Filler Panel
