Sun Netra X4250 Server - Full Components List

Batteries CPU Module Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel I/O Memory Miscellaneous Power Rack Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a

CPU Module
Option #	Manufacturing Part #	Description	Previous Part #
X5178A [S]	371-3953 [F]	2.13 GHz CPU, L5408 Intel Xeon Quad Core	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X320A [S]	Localized Power Cord Kit - North America/Asia
	180-2164 [C] Buy	IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black	n/a
X332A [S]	Localized Power Cord Kit - Taiwan
	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X333A-25-10-IL [S]	Localized Power Cord Kit Israel
	180-2130 [C] Buy	IEC 320 C13 to SI-32, 10A/250V, 2.5M, Black	n/a
X333A-25-15-JP [S]	Localized Power Cord Kit Japan
	180-2243 [C] Buy	IEC 320 C13 to PSE 5-15P, 10A/125V, 2.5M, Black	n/a
X333A-25-15-TW [S]	Localized Power Cord Kit - Taiwan
	180-2333 [C]	IEC 320 C13 to CNS 690 - 15A/125V 2.5M Black	n/a
X333F-25-15-JP [S]	Localized Power Cord Kit Japan
	180-2244 [C] Buy	IEC 320 C13 to PSE 6-15P, 15A/250V, 2.5M, Black	n/a
X340L [S]	Power Kit for North America, L6-20 20A Twist Lock Plug
	180-2070 [C]	NEMA L6-20P to IEC 320 C13 - 4.0M	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
X8224A [S]	530-4088 [C]	4× Mini SAS Cable, 90° SFF-8087 to 90° SFF-8087	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X6000A 1 [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a
n/a	371-2699 [C]	Alarm Card	n/a

1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2612 [C]	4-Drive Cluster/Media Bay Assembly	n/a
	371-2888	4-Disk Backplane 411764100036	n/a
	n/a	Disk Bracket 340764100039	n/a
n/a	371-2647 [C]	2-Drive Cluster/Media Bay Assembly, PATA	n/a
	371-2530	2-Disk Backplane 411764100006	n/a
	371-2533	PATA DVD Backplane 340764100014	n/a
	n/a	PDB J7 to DVD PATA Backplane J1 Cable 422764100004	n/a
	n/a	Disk/DVD Bracket 340764100014	n/a
n/a	371-3931 [C]	2-Drive Cluster/Media Bay Assembly, PATA	371-2647 [C]
	371-2530	2-Disk Backplane 411764100006	n/a
	371-2533	PATA DVD Backplane 340764100014	n/a
	n/a	PDB J7 to DVD PATA Backplane J1 Cable 422764100004	n/a
	n/a	Disk/DVD Bracket 340764100014	n/a
n/a	371-4877 [C]	4-Drive Cluster/Media Bay Assembly	371-2612 [C]
	371-2888	4-Disk Backplane 411764100036	n/a
	n/a	Disk Bracket 340764100039	n/a
n/a	371-4878 [C]	2-Drive Cluster/Media Bay Assembly, SATA	540-7990 [C]
	371-2530	2-Disk Backplane 411764100006	n/a
	371-4572	SATA DVD Backplane 411764100088	n/a
	n/a	PDB J7 to DVD SATA Backplane J1 Cable 422764100013	n/a
	n/a	Disk/DVD Bracket 340764100014	n/a
n/a	540-7990 [C]	2-Drive Cluster/Media Bay Assembly, SATA	n/a
	371-2530	2-Disk Backplane 411764100006	n/a
	371-4572	SATA DVD Backplane 411764100088	n/a
	n/a	PDB J7 to DVD SATA Backplane J1 Cable 422764100013	n/a
	n/a	Disk/DVD Bracket 340764100014	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2ND-146G10KZ [S]	540-7152 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2ND-300G10K [S]	540-7867 [C]	300GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0449	Seagate ST9300603SS [ST930003SSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2ND-600G10K2 [S]	542-0289 [C]	600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0488	Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRB-SS2ND-146G10K [S]	540-7866 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRB-SS2ND-300G10K2 [S]	542-0384 [C]	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0487	Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0490	Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-3004	Nemo Bracket with Insulator	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X1027A-Z [S]	7054890 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	501-7283 [C]
X4446A-Z [S]	7054739 [C]	PCI Express Quad Gigabit Ethernet UTP	375-3481 [C]
X4447A-Z [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	511-1422 [C]  + 501-7606 [C]
	371-2207	Bracket Low-Profile	n/a
X5558A [S]	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
X5560A-Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
n/a	375-3481 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
n/a	501-7283 [C]	PCI Express Dual 10-Gigabit Ethernet Fiber	n/a
n/a	501-7606 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
	371-2207	Bracket Low-Profile	n/a
	371-2348	Bracket Standard	n/a
n/a	511-1422 [C]	Quad Port GbE PCI Express, UTP	501-7606 [C]
	371-2207	Bracket Low-Profile	n/a

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2628 [C]	System Fan (FT0)	n/a
n/a	371-2629 [C]	Disk Fan Tray (FT1)	n/a
n/a	371-2701 [C]	PDB Fan (FT2)	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI2FC-EM4-Z [S]	7058528 [C]	4Gb PCI-X Dual FC Host Adapter	375-3399 [C]
SG-XPCI2FC-QF4 [S]	7060890 [C]	4Gb PCI-X Dual FC Host Adapter	375-3294 [C]
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	375-3294 [C]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	375-3399 [C]	4Gb PCI-X Dual FC Host Adapter	n/a

NOTE: SG-XPCIE2FC-QF4 (4Gigabit/Sec PCI-E Dual FC Host Adapter) is NOT NEBS certified, This card is only supported in Non-NEBS environments

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-3763 [C]	PCI Tray Assembly	n/a
n/a	540-7703 [C]	PCI Express Riser Kit	n/a
	371-3764	x4 PCI Express Riser-0	n/a
	371-3765	x4 PCI Express Riser-1	n/a
	371-3766	x8 PCI Express Riser-2	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
X6381A [S]	540-7347 [C]	Qty 2 - 2GB DIMMs (4GB Memory Assembly)	n/a
	371-3068	2GB Registered ECC DDR2-667/PC2-5300 DIMM	n/a
X6382A [S]	540-7348 [C]	Qty 2 - 4GB DIMMs (8GB Memory Assembly)	n/a
	371-3069	4GB Registered ECC DDR2-667/PC2-5300 DIMM	n/a
n/a	540-7346 [C]	Qty 2 - 1GB DIMMs (2GB Memory Assembly)	n/a
	371-3067	1GB Registered ECC DDR2-667/PC5300 DIMM	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X4234A-Z [S]	594-3954	Air Filter 10-Pack	n/a
	371-1961	Air Filter	n/a
X4353A-Z [S]	594-4536	Air Filter for 4 Hard Disk Drive Chassis	n/a
	371-2555	Air Filter for 4 Hard Disk Drive Chassis	n/a
X949A-4 [S]	594-2682	Wago DC Connector Set (10 pack)	n/a
	130-6352	Wago DC Connector	n/a
	230-4652	Wago DC Connector Strain Relief	n/a
	230-4653	Wago DC Connector Opening Lever	n/a
n/a	7317766 [C]	Air Filter Media, 2U, 2 HDD, 10 pack	n/a
n/a	7317767 [C]	Air Filter Media, 2U, 4 HDD, 10 pack	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-2015 [C]	Type A221 658 Watt AC Input Power Supply	n/a
n/a	300-2186 [C]	Type D218 660 Watt DC Input Power Supply	n/a
n/a	300-2299 [C]	Type A247A 760 Watt AC Input Power Supply	n/a
n/a	371-2532 [C]	Power Distribution Board, PATA	n/a
n/a	371-4571 [F]	Power Distribution Board, SATA	n/a
n/a	7048340 [C]	Type D218 660 Watt DC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X2089A [S]	350-1387	19" 2-post Slide Rail Kit	n/a
X7901A-4 [S]	371-1478	19" 2-post Rackmount Kit	n/a
X7902A-4 [S]	371-1481	23" 2-post Rackmount Kit	n/a
X7904A-4 [S]	371-1479	600mm x 600mm Rackmount Kit	n/a
X8099A-4 [S]	371-1480	19" 4-post Slide Mount Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X4356A-Z [S]	DVD-Writer/CD-Writer
	371-2261	DVD-ROM / CD-ROM Drive Bezel	n/a
	540-7563 [C]	DVD-Writer/CD-Writer, PATA	n/a
	390-0337 [C]	8x PATA DVD-Writer/24x CD-Writer	n/a
	390-0403 [C]	8x PATA DVD-Writer / 24x CD-Writer	n/a
X4358A-Z [S]	SATA DVD-Writer/CD-Writer
	390-0486 [C]	8x Slot-Load SATA DVD-Writer/24x CD-Writer	390-0443 [C]
	7045772	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SG-XPCIE8SAS-I-Z [S]	7064052 [C]	PCI Express 8-Port SAS Controller	371-3255 [C]
SGXPCI2SCSILM320-Z [S]	7050788 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	375-3365 3 [C]
SGXPCIESAS-R-INT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3536 4 [C]	8-Port SAS Adaptec RAID HBA	n/a
n/a	371-3255 [C]	PCI Express 8-Port SAS Controller	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3365 2 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a
n/a	375-3640 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	n/a
n/a	7047852 [C]	8-Port 6Gbps SAS-2 PCI Express HBA (LSI)	375-3640 [C]

2 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1. 3 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1. 4 Reference Alert article
System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-7694 [F]	Netra X4250 System Board with Tray	540-7570 [F]

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

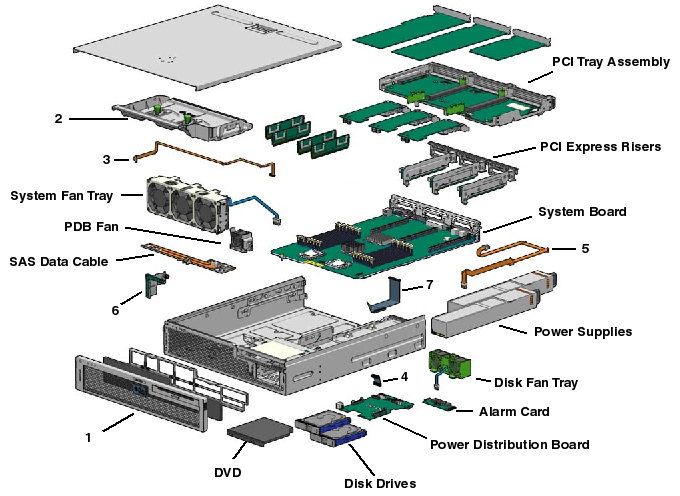

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	371-2536	2-Drive Bezel
7	n/a	PDB J7 to DVD PATA Backplane J1 Cable 422764100004
NS	370-6110	19" 4-Post Rackmount Kit
NS	n/a	Front 350×30 mm + Rear 87×445 mm + Flange 30×40 mm
NS	371-2535	4-Drive Bezel
NS	371-4110	2U Chassis
	371-2628 [C]	System Fan (FT0)
	371-2629 [C]	Disk Fan Tray (FT1)
	371-2699 [C]	Alarm Card
	371-2701 [C]	PDB Fan (FT2)
2	371-3767	Air Duct
6	371-2900 [C]	Front LED Board
NS	n/a	Top Cover
NS	530-4076 5 [C]	Cable Kit
3	n/a	Alarm Card J1 to Front LED Board Cable
4	n/a	PDB J3 to System Board J2501 Cable
5	n/a	PDB J4 to PCI Tray Board J1 Cable
NS	n/a	PDB J9 to Disk Backplane J502 Cable
NS	n/a	Alarm Card J3 to PDB J8 Cable
NS	n/a	Alarm Card J2 to System Board Tray Alarm Port Cable
NS	541-0605 [F]	Blank Disk Drive Filler
NS	560-2892	Ship Kit
NS	370-6066	5M Nut Kit
NS	530-2889	RJ45 to DB25 Serial Port Adapter
NS	530-3623 [C]	Shielded RJ45 to RJ45 Cable, 4M
NS	596-7648	X4250 Base Assembly
NS	n/a	PDB to System Board Bus Bar
NS	n/a	Bus Bar Bracket
NS	n/a	Disk/DVD Bracket 340764100014
NS	n/a	PDB J7 to DVD SATA Backplane J1 Cable 422764100013
NS	n/a	Disk Bracket 340764100039
NS	n/a	M3×6mm Drive Cluster Screw with Green Head

5 Cable Kit 530-4076 has no bill of material. The SAS cable is shown on drawing 530-4076 but is not included. Order SAS Cable 530-4088.
