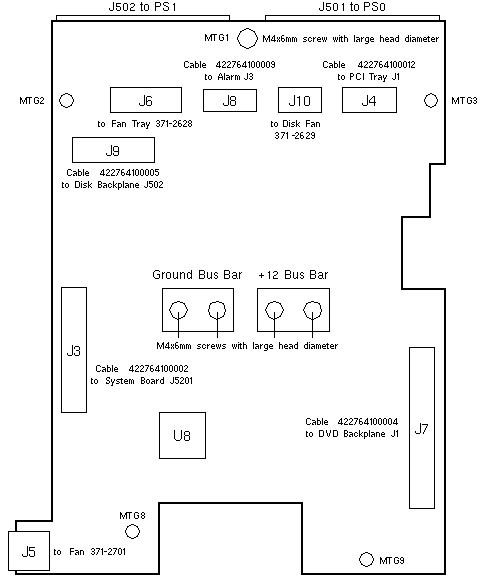

Netra T5220 Codename: Turgo Netra X4250 Codename: Aries

Netra T5220 Notes

1. Cables are not labeled and are not assigned Sun part numbers.
2. DVD Cable 422764100004 is included with the 2-Slot Drive Cluster.
3. Cable Kit 530-3964 includes the cables to J3, J4, J8, and J9.
4. Bus bars and location MTG1 use M4x6mm screws with a large head diameter.
5. Locations MTG2, 3, 8, and 9 use M4x6mm screws with a small head diameter.
6. PDB 371-2532-06 updates firmware to correct a DVD Not Found error.

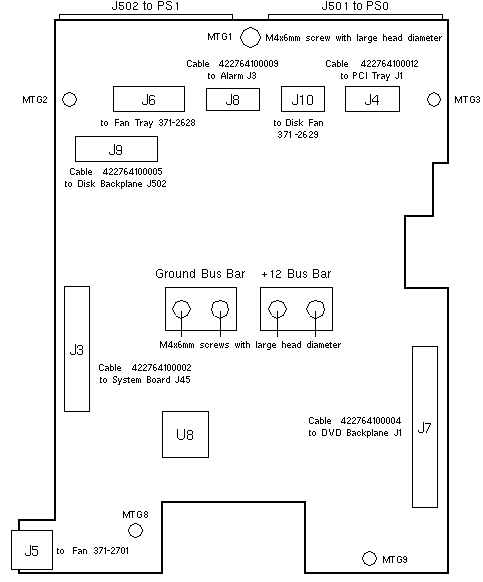

Netra X4250 Notes

1. Cables are not labeled and are not assigned Sun part numbers.
2. DVD Cable 422764100004 is included with the 2-Slot Drive Cluster.
3. Cable Kit 530-4076 includes the cables to J3, J4, J8, and J9.
4. Bus bars and location MTG1 use M4x6mm screws with a large head diameter.
5. Locations MTG2, 3, 8, and 9 use M4x6mm screws with a small head diameter.

References

1. Netra T5220 Service Manual, 820-3012.
2. Netra T5220 Product Notes, 820-3014.
3. Netra X4250 Service Manual, 820-4056.
4. Netra X4250 Product Notes, 820-4059.

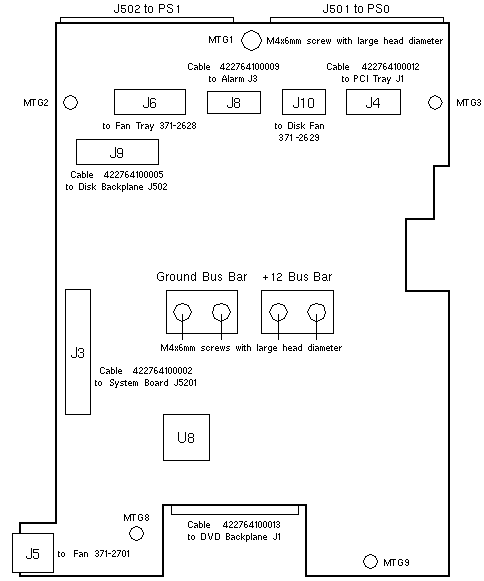

Netra T5220 Codename: Turgo Netra X4250 Codename: Aries

Netra T5220 Notes

1. Cables are not labeled and are not assigned Sun part numbers.
2. DVD Cable 422764100013 is included with the 2-Slot Drive Cluster.
3. Cable Kit 530-3964 includes the cables to J3, J4, J8, and J9.
4. Bus bars and location MTG1 use M4x6mm screws with a large head diameter.
5. Locations MTG2, 3, 8, and 9 use M4x6mm screws with a small head diameter.
6. The Netra T5220 looses access to the Teac DV-W28SS-R with DVD-RW media
   and requires a power cycle to restore access. This problem does not affect
   Netra X4250 or DVD+RW media. PDB 7026156 with firmware V1.00.0010 corrects
   this problem. (E0005941)

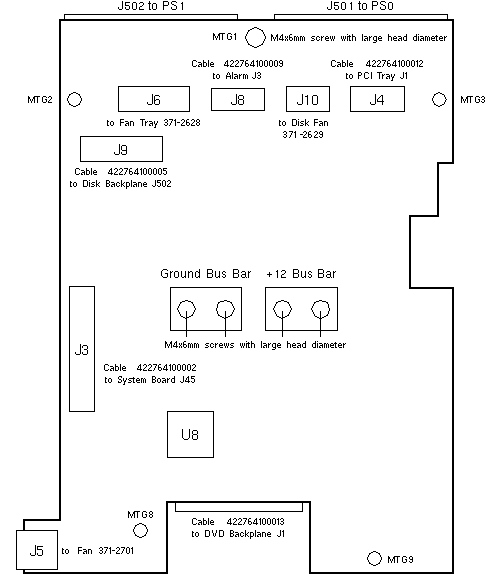

Netra X4250 Notes

1. Cables are not labeled and are not assigned Sun part numbers.
2. DVD Cable 422764100013 is included with the 2-Slot Drive Cluster.
3. Cable Kit 530-4076 includes the cables to J3, J4, J8, and J9.
4. Bus bars and location MTG1 use M4x6mm screws with a large head diameter.
5. Locations MTG2, 3, 8, and 9 use M4x6mm screws with a small head diameter.
6. PDB 371-4571-02 updates firmware to correct a DVD Not Found error. (WO_42423)

References

1. Netra T5220 Service Manual, 820-3012.
2. Netra T5220 Product Notes, 820-3014.
3. Netra X4250 Service Manual, 820-4056.
4. Netra X4250 Product Notes, 820-4059.
