Drive Cluster

2-Disk/DVD Drive Cluster

371-2530
2-Disk Backplane 411764100006

371-2533	371-2647	371-3931
PATA DVD Backplane 411764100001	2-Disk Cluster FRU 371-2530 + 371-2533 Bracket 340764100014	2-Disk Cluster FRU 371-2530 + 371-2533 Bracket 340764100014
371-4572	540-7990	371-4878
SATA DVD Backplane 411764100001	2-Disk Cluster FRU 371-2530 + 371-4572 Bracket 340764100014	2-Disk Cluster FRU 371-2530 + 371-4572 Bracket 340764100014

4-Disk Drive Cluster

371-2888	371-2612	371-4877
4-Disk Backplane 340764100036	4-Disk Cluster FRU 4-Disk Backplane 371-2888 Bracket 340764100039	4-Disk Cluster FRU 4-Disk Backplane 371-2888 Bracket 340764100039

PATA DVD Backplane 371-2533

SATA DVD Backplane 371-4572

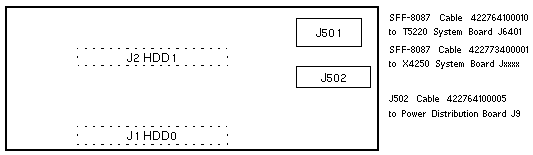

2-Slot Disk Backplane 371-2530

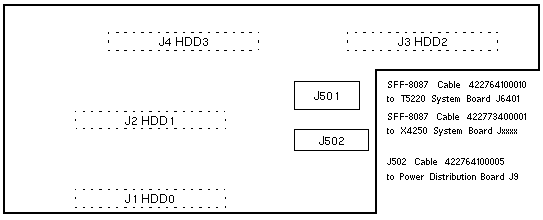

4-Slot Disk Backplane 371-2888

Netra T5220 Codename: Turgo Netra X4250 Codename: Aries

Notes

1. 2-Slot Drive Cluster 371-2647 / 371-3931 (PATA DVD):
   DVD Cable 422764100004 is included.
2. 2-Slot Drive Cluster 540-7990 / 371-4878 (SATA DVD):
   DVD Cable 422764100013 is included.
3. Cable Kit 530-3964 includes backplane cables 422764100005 and 422764100010.
4. Cable Kit 530-4076 includes backplane cables 422764100005 and 4227773400001.
5. A green non-captive M3×6mm screw fastens the Drive Cluster to the Chassis.
6. Use a #2 Phillips Screwdriver to remove the green non-captive M3×6mm screw.
7. A #1 Phillips Screwdriver might strip the green non-captive M3×6mm screw head.
8. The green non-captive M3×6mm screw does not have a Sun part number.

References

1. Sun Netra T5220 Server Documentation.
2. Sun Netra X4250 Server Documentation.

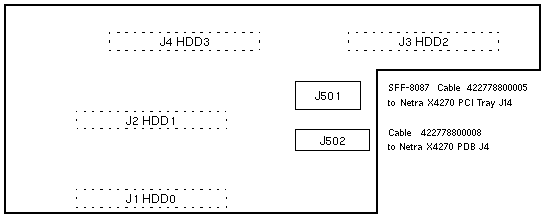

Netra X4270 Codename: Aurigi-DC

Notes

1. The DVD Cable is included with the 2-Slot Drive Cluster.

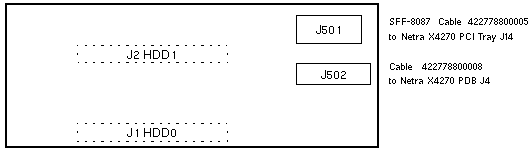

2. Cable Kit 530-4439 includes backplane cables 422778800005 and 422778800008.
3. A green non-captive M3x6mm screw fastens the Drive Cluster to the Chassis.
4. The green non-captive M3x6mm screw does not have an Oracle part number.

References

1. Sun Netra X4270 Server Documentation.
