Sun Netra T5220 Server - Full Components List

Batteries Cables Communication Disk Backplane Disks Ethernet Fan Fibre Channel Graphics I/O IDPROM Memory Miscellaneous Power Rack Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Batteries
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a

Cables
Option #	Manufacturing Part #	Description	Previous Part #
X311L [S]	Localized Power Cord Kit - North America/Asia
	180-1097 [C] Buy	IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black	n/a
X312E [S]	Localized Power Code Kit - China
	180-1982 [C]	IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M	n/a
X312F [S]	Localized Power Cord Kit - Argentina
	180-1999 [C]	IEC 320 C13 to IRAM 2073 - 10A/250V 2.5M Black	n/a
X312G [S]	Localized Power Cord Kit - Korea
	180-1662 [C] Buy	IEC 320 C13 to KSC 8305 - 15A/250V 2.5M Black	n/a
X312L [S]	Localized Power Cord Kit - Continental Europe
	180-1993 [C]	IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black	n/a
X314L [S]	Localized Power Cord Kit - Swiss
	7049124 [C]	IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black	180-1994 [C]
X317L [S]	Localized Power Cord Kit - U.K.
	180-1997 [C] Buy	IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black	n/a
X332A [S]	Localized Power Cord Kit - Taiwan
	180-2121 [C]	IEC 320 C13 to NEMA 5-15P - 10A/125V 2.5M Black	n/a
X383L [S]	Localized Power Cord Kit - Danish
	180-1995 [C]	IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black	n/a
X384L [S]	Localized Power Cord Kit - Italian
	180-1996 [C]	IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black	n/a
X386L [S]	Localized Power Cord Kit - Australian
	180-1998 [C]	IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black	n/a
n/a	180-1994 [C]	IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black	n/a
n/a	530-3100	RJ45F to DB9F Adapter	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X1355A-2 [S]	371-0982	2M, 80-Pin, 4-Port, DB37, RS449 Breakout Cable	n/a
	375-3296 [C]	Quad Port High Speed Serial Interface PCI-X (HSI/U)	n/a
X6000A 1 [S]	375-3424 [C]	PCI Express Sun Crypto Accelerator 6000	n/a
n/a	371-2699 [C]	Alarm Card	n/a

1 Option X6099A (IPsec enabler CD) is required to enable the adapter's support for IPsec acceleration

Disk Backplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2612 [F]	4-Drive Cluster/Media Bay Assembly	n/a
	371-2888	4-Disk Backplane 411764100036	n/a
	n/a	Disk Bracket 340764100039	n/a
n/a	371-2647 [F]	2-Drive Cluster/Media Bay Assembly, PATA	n/a
	371-2530	2-Disk Backplane 411764100006	n/a
	371-2533	PATA DVD Backplane 340764100014	n/a
	n/a	Disk/DVD Bracket 340764100014	n/a
	n/a	PDB J7 to DVD PATA Backplane J1 Cable 422764100004	n/a
n/a	371-3931 [F]	2-Drive Cluster/Media Bay Assembly, PATA	371-2647 [F]
	371-2530	2-Disk Backplane 411764100006	n/a
	371-2533	PATA DVD Backplane 340764100014	n/a
	n/a	Disk/DVD Bracket 340764100014	n/a
	n/a	PDB J7 to DVD PATA Backplane J1 Cable 422764100004	n/a
n/a	371-4877 [F]	4-Drive Cluster/Media Bay Assembly	371-2612 [F]
	371-2888	4-Disk Backplane 411764100036	n/a
	n/a	Disk Bracket 340764100039	n/a
n/a	371-4878 [F]	2-Drive Cluster/Media Bay Assembly, SATA	540-7990 [F]
	371-2530	2-Disk Backplane 411764100006	n/a
	371-4572	SATA DVD Backplane 411764100088	n/a
	n/a	PDB J7 to DVD SATA Backplane J1 Cable 422764100013	n/a
	n/a	Disk/DVD Bracket 340764100014	n/a
n/a	540-7990 [F]	2-Drive Cluster/Media Bay Assembly, SATA	n/a
	371-2530	2-Disk Backplane 411764100006	n/a
	371-4572	SATA DVD Backplane 411764100088	n/a
	n/a	PDB J7 to DVD SATA Backplane J1 Cable 422764100013	n/a
	n/a	Disk/DVD Bracket 340764100014	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SS2ND-146G10KZ [S]	540-7152 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 of the following disks and brackets	n/a
	390-0324	Seagate ST9146802SS [ST914602SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-0239	Nemo Bracket	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2ND-300G10K [S]	540-7867 [C]	300GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0449	Seagate ST9300603SS [ST930003SSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRA-SS2ND-600G10K2 [S]	542-0289 [C]	600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0488	Hitachi HUC106060CSS600 [H106060SDSUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	390-0491	Seagate ST9600205SS [ST960005SSUN600G](600GB 10000 RPM SAS Disk)	n/a
	7045228	Hitachi HUC109060CSS600 [H109060SESUN600G] (600GB - 10000 RPM - SAS Disk)	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRB-SS2ND-146G10K [S]	540-7866 [C]	146GB - 10000 RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0377	Hitachi HUC101414CSS300 [H101414SCSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	390-0448	Seagate ST9146803SS [ST914603SSUN146G] (146GB - 10000 RPM - SAS Disk)	n/a
	541-3004	Nemo Bracket with Insulator	n/a
XRB-SS2ND-300G10K2 [S]	542-0384 [C]	300GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:	n/a
	390-0487	Hitachi HUC106030CSS600 [H106030SDSUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	390-0490	Seagate ST9300605SS [ST930005SSUN300G](300GB 10000 RPM SAS Disk)	n/a
	7045226	Hitachi HUC109030CSS600 [H109030SESUN300G] (300GB - 10000 RPM - SAS Disk)	n/a
	541-3004	Nemo Bracket with Insulator	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
SE3X7XA1Z [S]	501-7489 2 [C]	10GbE XAUI Card	n/a
SE3X7XT1Z [S]	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
SE3X7XT2Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
SESX7XA1Z [S]	501-7489 3 [C]	10GbE XAUI Card	n/a
SESX7XT1Z [S]	375-3301 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	n/a
	7058828 [C]	10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR)	375-3301 [C]
SESX7XT2Z [S]	375-3495 [C]	10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR)	n/a
X4447A-Z [S]	371-2348	Bracket Standard	n/a
	7055021 [C]	Quad Port GbE PCI Express, UTP	511-1422 [C]  + 501-7606 [C]
	371-2207	Bracket Low-Profile	n/a
X7280A-2 [S]	371-0905 [C]	PCI Express Dual Gigabit Ethernet UTP	n/a
X7281A-2 [S]	7056733 [C]	PCI Express Dual Gigabit Ethernet MMF	371-0904 [C]
n/a	371-0904 [C]	PCI Express Dual Gigabit Ethernet MMF	n/a
n/a	501-7606 [C]	PCI Express Quad Gigabit Ethernet UTP	n/a
	371-2207	Bracket Low-Profile	n/a
	371-2348	Bracket Standard	n/a
n/a	511-1422 [C]	Quad Port GbE PCI Express, UTP	501-7606 [C]
	371-2207	Bracket Low-Profile	n/a

2 Requires one XFP Transceiver 3 Requires one XFP Transceiver

Fan
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2628 [F]	System Fan (FT0)	n/a
n/a	371-2629 [F]	Disk Fan Tray (FT1)	n/a
n/a	371-2701 [F]	PDB Fan (FT2)	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI2FC-EM4-Z [S]	7058528 [C]	4Gb PCI-X Dual FC Host Adapter	375-3399 [C]
SG-XPCI2FC-QF4 [S]	7060890 [C]	4Gb PCI-X Dual FC Host Adapter	375-3294 [C]
SG-XPCIE2FC-EM4 [S]	375-3397 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
	7053427 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-EM8-Z [S]	7053434 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex	371-4306 [C]
SG-XPCIE2FC-QF4 [S]	375-3356 [C]	4Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
SG-XPCIE2FC-QF8-Z [S]	371-4325 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	371-4306 [C]	8Gigabit/Sec PCI Express Dual FC Host Adapter	n/a
n/a	375-3294 [C]	4Gb PCI-X Dual FC Host Adapter	n/a
n/a	375-3399 [C]	4Gb PCI-X Dual FC Host Adapter	n/a

Graphics
Option #	Manufacturing Part #	Description	Previous Part #
X3000A [S]	375-3545 [C]	XVR-300 x8 Graphics Accelerator	n/a
	530-3474 [C]	DVI-A(M) to HD15F Adapter, 49mm	n/a
	530-3998 4 [C]	DMS-59 to Dual DVI-I Cable, 215mm	n/a
X7295A 5 [S]	375-3292 [C]	XVR-2500 Graphics Accelerator	n/a

4 Sun custom overmold to fit systems using the Jake and Elwood chassis. Cable 530-3998 replaced 530-3459 in option X4240A in December 2007. 5 XVR-2500 is not NEBS qualified.

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	371-2528 [C]	x8 PCI Express Riser-2	n/a
n/a	371-2529 [C]	x4 PCI Express Riser-0	n/a
n/a	371-2698 [C]	x4 PCI Riser-1	n/a
n/a	371-2700 [C]	PCI Tray	n/a
	371-2531	PCI Tray Board 411764100074	n/a
	n/a	PCI Filler Panel	n/a
n/a	371-4594 [C]	PCI Tray	n/a
	371-4281	PCI Tray Board 411764100080	n/a
	n/a	PCI Filler Panel	n/a

IDPROM
Socket	Manufacturing Part #	Component Type	Host ID
J7901	525-2344 [F]	System Configuration PROM	84xxxxxx

Memory
Option #	Manufacturing Part #	Description	Previous Part #
SESX2B1Z [S]	4GB Memory Expansion (2 × 2GB) X-Option
	501-7953 [C]	2GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a
SESX2B2Z [S]	4GB Memory Expansion (2 × 2GB) X-Option
	511-1161 [C]	2GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a
SESX2C1Z [S]	8GB Memory Expansion (2 × 4GB) X-Option
	501-7954 [C]	4GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a
n/a	371-3651	Memory Slot Filler, EBS93011010	n/a
n/a	501-7952 [C]	1GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a
n/a	7059409 [C]	2GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a
n/a	7059410 [C]	4GB DDR2-667/PC2-5300 1.8V FBDIMM	n/a

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X4234A-Z [S]	594-3954	Air Filter 10-Pack	n/a
	371-1961	Air Filter	n/a
X4353A-Z [S]	594-4536	Air Filter for 4 Hard Disk Drive Chassis	n/a
	371-2555	Air Filter for 4 Hard Disk Drive Chassis	n/a
X949A-4 [S]	594-2682	Wago DC Connector Set (10 pack)	n/a
	130-6352	Wago DC Connector	n/a
	230-4652	Wago DC Connector Strain Relief	n/a
	230-4653	Wago DC Connector Opening Lever	n/a
n/a	7317766 [C]	Air Filter Media, 2U, 2 HDD, 10 pack	n/a
n/a	7317767 [C]	Air Filter Media, 2U, 4 HDD, 10 pack	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-2015 [C]	Type A221 658 Watt AC Input Power Supply	n/a
n/a	300-2047 [C]	Type D200 660 Watt DC Input Power Supply	n/a
n/a	300-2186 [C]	Type D218 660 Watt DC Input Power Supply	n/a
n/a	300-2299 [C]	Type A247A 760 Watt AC Input Power Supply	n/a
n/a	371-2532 [F]	Power Distribution Board, PATA	n/a
n/a	371-4571 [F]	Power Distribution Board, SATA	n/a
n/a	7026156 [F]	Power Distribution Board, SATA	n/a
n/a	7048340 [C]	Type D218 660 Watt DC Input Power Supply	n/a

Rack
Option #	Manufacturing Part #	Description	Previous Part #
X2089A [S]	350-1387	19" 2-post Slide Rail Kit	n/a
X7901A-4 [S]	371-1478	19" 2-post Rackmount Kit	n/a
X7902A-4 [S]	371-1481	23" 2-post Rackmount Kit	n/a
X7904A-4 [S]	371-1479	600mm x 600mm Rackmount Kit	n/a
X8028A-Z [S]	370-7668	Cable Management Arm	n/a
X8029A-Z [S]	370-7669	Slide Rail Kit	n/a
X8099A-4 [S]	371-1480	19" 4-post Slide Mount Kit	n/a

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
X4356A-Z [S]	DVD-Writer/CD-Writer
	371-2261	DVD-ROM / CD-ROM Drive Bezel	n/a
	540-7563 [C]	DVD-Writer/CD-Writer, PATA	n/a
	390-0337 [C]	8x PATA DVD-Writer/24x CD-Writer	n/a
	390-0403 7 [C]	8x PATA DVD-Writer / 24x CD-Writer	n/a
X4358A-Z [S]	SATA DVD-Writer/CD-Writer
	390-0486 [C]	8x Slot-Load SATA DVD-Writer/24x CD-Writer	390-0443 [C]
	7045772 [C]	8x Slot-Load SATA DVD-Writer/24x CD-Writer	n/a

7 See FAB article 1019938.1 for information about possible problems with drive 390-0403 on Netra T5220 systems.

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCIE2SCSIU320Z [S]	7050790 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	375-3357 [C]
SG-XPCIE8SAS-E-Z [S]	7050793 [C]	PCI Express 8-Port Host Adapter	375-3487 [C]
SGXPCI2SCSILM320-Z [S]	7050788 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	375-3365 9 [C]
SGXPCIESAS-R-EXT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3537 [C]	8-Port SAS RAID External HBA	n/a
SGXPCIESAS-R-INT-Z [S]	371-3253 [C]	Lithium Ion Battery Module	n/a
	375-3536 10 [C]	8-Port SAS Adaptec RAID HBA	n/a
n/a	375-3357 [C]	Dual-Channel Ultra320 LVD SCSI PCI Express Adapter	n/a
n/a	375-3365 8 [C]	PCI/PCI-X Dual Ultra320 SCSI Adapter	n/a
n/a	375-3487 [C]	PCI Express 8-Port Host Adapter	n/a

8 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1. 9 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1. 10 Reference Alert article
System Board
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-7992 [F]	0MB 8-Core 1.2GHz System Board with Tray	n/a
	371-3640	Mounting Tray	n/a
	511-1087	8-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	540-7994 [F]	0MB 4-Core 1.2GHz System Board with Tray	n/a
	371-3640	Mounting Tray	n/a
	511-1200	4-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	541-2814 [F]	0MB 8-Core 1.2GHz System Board with Tray	n/a
	371-3640	Mounting Tray	n/a
	501-7781	8-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	541-2814-05 [F]	0MB 8-Core 1.2GHz System Board with Tray	n/a
	371-3640	Mounting Tray	n/a
	511-1087	8-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	541-2867 [F]	0MB 4-Core 1.2GHz System Board with Tray	n/a
	371-3640	Mounting Tray	n/a
	501-7814	4-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	541-2867-05 [F]	0MB 4-Core 1.2GHz System Board with Tray	n/a
	371-3640	Mounting Tray	n/a
	511-1200	4-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	542-0228 [F]	0MB 8-Core 1.2GHz System Board with Tray	n/a
	542-0229	8-Core 1.2GHz System Board Assembly	n/a
	371-3640	Mounting Tray	n/a
	511-1413	8-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	542-0230 [F]	0MB 4-Core 1.2GHz System Board with Tray	n/a
	542-0231	4-Core 1.2GHz System Board Assembly	n/a
	371-3640	Mounting Tray	n/a
	511-1415	4-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a
n/a	540-7755 [F] [S]	0MB 6-Core 1.2GHz System Board with Tray	n/a
	371-3640	Mounting Tray	n/a
	501-7813	6-Core 1.2GHz System Board	n/a
	371-2210 [C] Buy	3V Lithium Coin Cell Battery	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

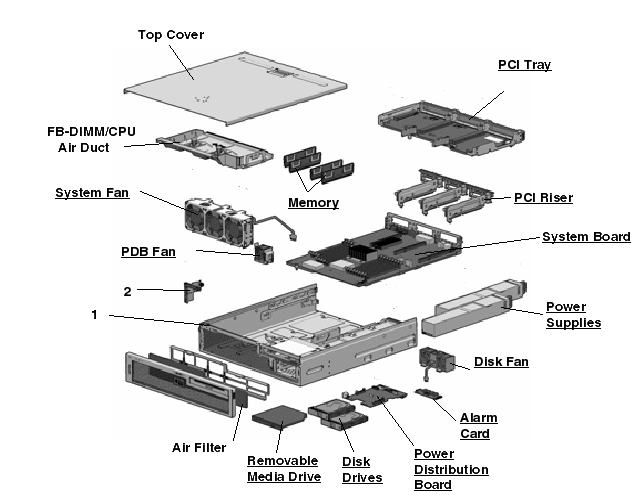

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
1	596-6846	T5220 Base Assembly
	371-2528 [C]	x8 PCI Express Riser-2
	371-2529 [C]	x4 PCI Express Riser-0
	371-2532 [F]	Power Distribution Board, PATA
2	371-2900 [F]	Front LED Board
NS	371-2610	2U Comet Chassis
	371-2628 [F]	System Fan (FT0)
	371-2629 [F]	Disk Fan Tray (FT1)
	371-2698 [C]	x4 PCI Riser-1
	371-2699 [C]	Alarm Card
	371-2700 [C]	PCI Tray
	371-2531	PCI Tray Board 411764100074
	n/a	PCI Filler Panel
NS	370-6110	19" 4-Post Rackmount Kit
NS	n/a	Front 350×30 mm + Rear 87×445 mm + Flange 30×40 mm
NS	530-3964 [F]	Cable Kit
NS	n/a	4× Mini SAS Cable, 90° SFF-8087 to SFF-8087
NS	n/a	PDB J9 to Disk Backplane J502 Cable
NS	n/a	PDB J4 to PCI Tray Board J1 Cable
NS	n/a	PDB J3 to System Board J2501 Cable
NS	n/a	Alarm Card J3 to PDB J8 Cable
NS	n/a	Alarm Card J2 to System Board Tray Alarm Port Cable
NS	n/a	Alarm Card J1 to Front LED Board Cable
NS	560-2892	Ship Kit
NS	370-6066	5M Nut Kit
NS	530-2889	RJ45 to DB25 Serial Port Adapter
NS	530-3623 [C]	Shielded RJ45 to RJ45 Cable, 4M
NS	530-4001	RJ45M to RJ45F Extender, 30mm
NS	371-2535	4-Drive Bezel
NS	371-2536	2-Drive Bezel
NS	541-0605 [F]	Blank Disk Drive Filler
NS	n/a	4x Mini SAS Cable, 90° SFF-8087 to 90° SFF-8087
NS	n/a	M3×6mm Drive Cluster Screw with Green Head
NS	n/a	Air Duct/Long PCI Card Guide 340764100026
NS	n/a	PDB to System Board Bus Bar
NS	n/a	Bus Bar Bracket
NS	n/a	PDB J7 to DVD SATA Backplane J1 Cable 422764100013
NS	n/a	PDB J7 to DVD PATA Backplane J1 Cable 422764100004
NS	n/a	Disk/DVD Bracket 340764100014
NS	n/a	Disk Bracket 340764100039
NS	n/a	PCI Filler Panel
