3-Slot PCI Tray

<a href="../../Systems/SupportHeaders/IO_NetraT5220_3Slot_PCI_Tray.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

371-2531 371-2700

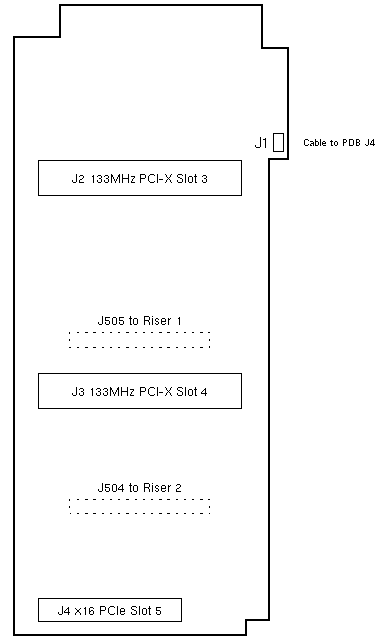

PCI Tray Board
411764100074 PCI Tray FRU
371-2531 + Tray

371-4281 371-4594

PCI Tray Board
411764100080 PCI Tray FRU
371-4281 + Tray

Additional Information & Views

Netra T5220 Codename: Turgo

Netra T5220 Notes

The Slot 5 PCI Express Channel is electrically eight lanes wide.
The Bracket, Filler Panel, and Riser do not have individual Sun part numbers.

References

Sun Netra T5220 Server Documentation.
