Netra T5220
CPU/Memory Board

541-2814 540-7755 541-2867
8-Core 1.2GHz FRU
541-2813 + Firmware		 6-Core 1.2GHz FRU
540-7756 + Firmware		 4-Core 1.2GHz FRU
541-2868 + Firmware
541-2813 540-7756 541-2868
8-Core 1.2GHz
371-3640 + 501-7781		 6-Core 1.2GHz
371-3640 + 501-7813		 4-Core 1.2GHz
371-3640 + 501-7814
501-7781 501-7813 501-7814
8-Core 1.2GHz
w/o Tray 371-3640		 6-Core 1.2GHz
w/o Tray 371-3640		 4-Core 1.2GHz
w/o Tray 371-3640

541-2814-05 Rev 53 541-2867-05 Rev 53
8-Core 1.2GHz FRU
541-2813-07 + Netra T5220 ILOM		 4-Core 1.2GHz FRU
541-2868-07 + Netra T5220 ILOM
541-2813-07 541-2868-07
8-Core 1.2GHz
371-3640 + 511-1087		 4-Core 1.2GHz
371-3640 + 511-1200
511-1087 511-1200
8-Core 1.2GHz
w/o Tray 371-3640		 4-Core 1.2GHz
w/o Tray 371-3640
540-7992 540-7994
8-Core 1.2GHz FRU
540-7993 + Netra T5220 ILOM		 4-Core 1.2GHz FRU
540-7995 + Netra T5220 ILOM
540-7993 540-7995
8-Core 1.2GHz
371-3640 + 511-1087		 4-Core 1.2GHz
371-3640 + 511-1200
511-1087 511-1200
8-Core 1.2GHz
w/o Tray 371-3640		 4-Core 1.2GHz
w/o Tray 371-3640

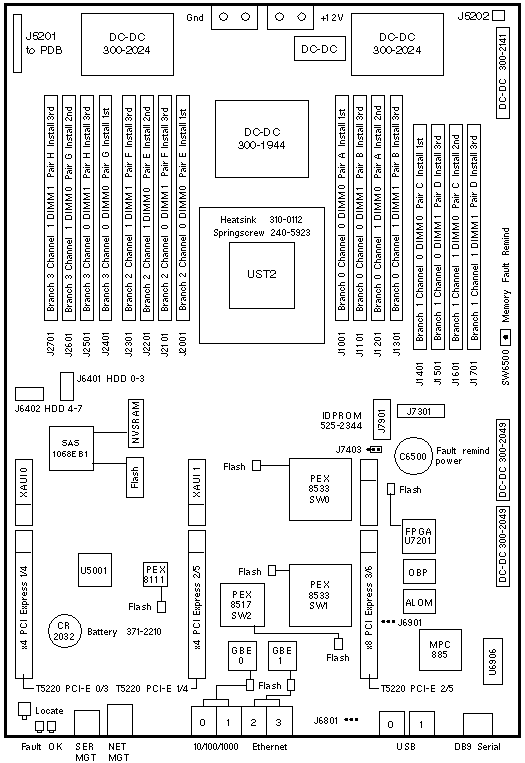

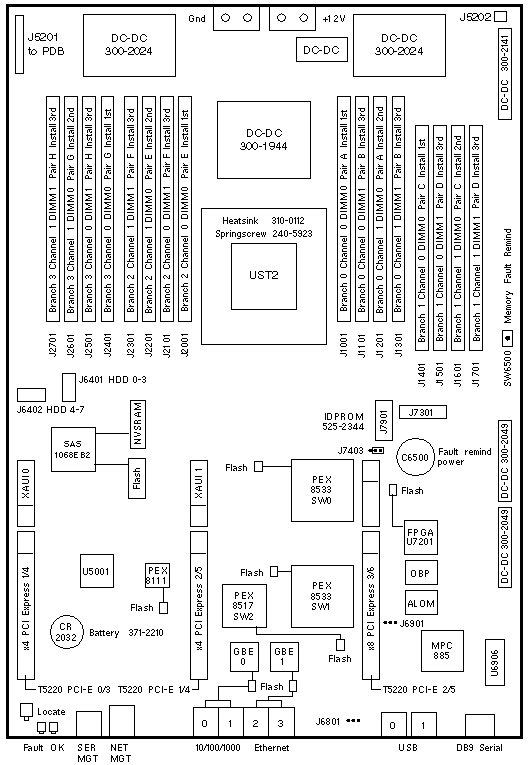

Headers, Jumpers, LEDs, and Switches

LOCATION PINS SETTING DESCRIPTION
J5201 34 NA To Power Distribution Board
J5202 10 NA Unused Connector
J6401 36 NA SAS HDD0-3
J6402 36 NA SAS HDD4-7
J6801 3 Out Unused MPC GPIO
J6901 1-2 Out
In		 Normal Flash (default)
Flash Recovery
J7301 38 NA FBGA Debug Connector
J7403 3 1-2 Unknown
SW5301 NA NA Locate Button
SW6500 NA NA Memory Fault Remind Button

Netra T5220 Codename: Turgo

Notes

  1. The minimum operating system is Solaris 10 8/07.
  2. System Board 511-1087 replaced 501-7781 in December 2008. (WO_40391)
  3. System Board 511-1200 replaced 501-7814 in December 2008. (WO_40391)
  4. Assembly 540-7992 is a new part number for 541-2814-05 Rev 53.
  5. Assembly 540-7994 is a new part number for 541-2867-05 Rev 53.
  6. Assemblies 540-7992 and 540-7994 were released in April 2009. (WO_40573)

Memory Notes

  1. Four, eight, and sixteen FBDIMM configurations are supported.
  2. All FBDIMM's in a Branch must have the same Sun part number.
  3. The minimum requirement is four FBDIMMs in the Channel 0, DIMM 0 slots.

References

  1. Sun Netra T5220 Server Documentation.

Netra T5220
CPU/Memory Board

542-0228 542-0230
8-Core 1.2GHz FRU
540-7993 + Netra T5220 ILOM		 4-Core 1.2GHz FRU
540-7995 + Netra T5220 ILOM
542-0229 542-0231
8-Core 1.2GHz
371-3640 + 511-1087		 4-Core 1.2GHz
371-3640 + 511-1200
511-1413 511-1415
8-Core 1.2GHz
w/o Tray 371-3640		 4-Core 1.2GHz
w/o Tray 371-3640

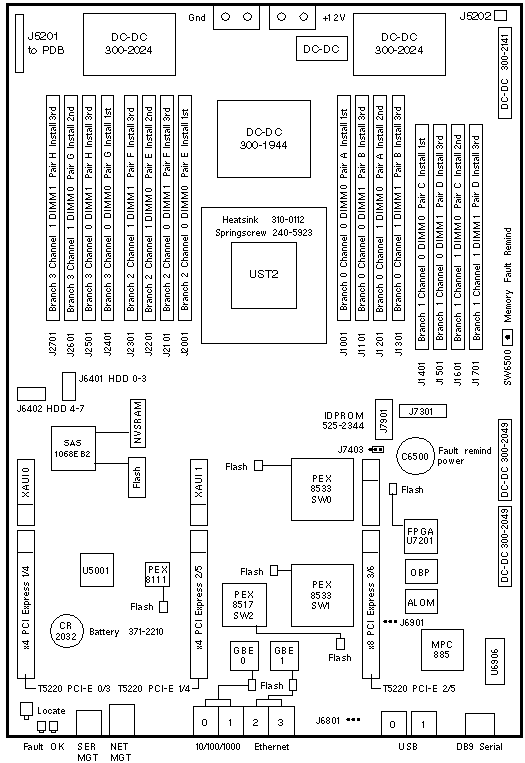

Headers, Jumpers, LEDs, and Switches

LOCATION PINS SETTING DESCRIPTION
J5201 34 NA To Power Distribution Board
J5202 10 NA Unused Connector
J6401 36 NA SAS HDD0-3
J6402 36 NA SAS HDD4-7
J6801 3 Out Unused MPC GPIO
J6901 1-2 Out
In		 Normal Flash (default)
Flash Recovery
J7301 38 NA FBGA Debug Connector
J7403 3 1-2 Unknown
SW5301 NA NA Locate Button
SW6500 NA NA Memory Fault Remind Button

Netra T5220 Codename: Turgo

Notes

  1. The minimum operating system is Solaris 10 8/07.
  2. Assemblies 542-0228 and 542-0230 were released in October 2009. (WO_41664)

Memory Notes

  1. Four, eight, and sixteen FBDIMM configurations are supported.
  2. All FBDIMM's in a Branch must have the same Sun part number.
  3. The minimum requirement is four FBDIMMs in the Channel 0, DIMM 0 slots.

References

  1. Sun Netra T5220 Server Documentation.
