Netra 440 (post July 2006) - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Backplane/Centerplane
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 540-6704 [C] SCSI Disk Backplane Assembly n/a
  • 4-Slot SCSI Disk Backplane
 n/a
Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 150-2850 1 [F] 3V Lithium Battery BR1632 / CR1632 n/a
1 Field Engineers should stock this part and not have them shipped from Oracle stocking locations. See Global Systems TSC communication dated 10/12/12
Cables
Option # Manufacturing
Part #		 Description Previous
Part #
X311L [S] Localized Power Cord Kit - North America/Asia
180-1097 [C] Buy IEC 320 C13 to NEMA 5-15P - 15A/125V 2.5M Black n/a
X312L [S] Localized Power Cord Kit - Continental Europe
180-1993 [C] IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black n/a
X314L [S] Localized Power Cord Kit - Swiss
7049124 [C] IEC 320 C13 to SEV 1011:2009 - 10A/250V 2.5M Black 180-1994 [C]
X317L [S] Localized Power Cord Kit - U.K.
180-1997 [C] Buy IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black n/a
X383L [S] Localized Power Cord Kit - Danish
180-1995 [C] IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black n/a
X384L [S] Localized Power Cord Kit - Italian
180-1996 [C] IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black n/a
X386L [S] Localized Power Cord Kit - Australian
180-1998 [C] IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black n/a
n/a 180-1994 [C] IEC 320 C13 to SEV 1011 - 10A/250V 2.5M Black n/a
n/a 530-3100 RJ45F to DB9F Adapter n/a
Card/Reader
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 370-5155 [C] System Configuration Card n/a
n/a 371-0795 [C] System Configuration Card with 10 MAC Addresses n/a
n/a 371-3551 [C] System Configuration Card with 10 MAC Addresses, Polycarbonate n/a
n/a 540-6707 [C] System Configuration Card Reader Assembly n/a
  • 250-1728
  • Rotary Switch
 n/a
  • System Configuration Card Reader
 n/a
  • 541-1329
  • Removable Media Paddleboard + Cable
 n/a
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
X2156A-2 [S] 375-3420 [C] Serial Asynchronous Interface PCI (SAI/P) 3.0 n/a
n/a 501-7337 [C] Advanced Lights Out Manager (ALOM) Card or Remote Management Card (RMC) n/a
n/a 594-3325 [C] Alarm Card Assembly n/a
  • Alarm Card
 n/a
  • 530-3693
  • Alarm In Cable
 n/a
  • 530-3645
  • Alarm Out Cable
 n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
XRA-SC1N2-73G15K [S] 540-6606 [C] 73.4GB - 15000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks n/a
  • 341-1986
  • Plate
 n/a
  • Seagate ST373454LC [ST373454LSUN72G]
    (73.4GB - 15000 RPM - SCSI Disk)
 n/a
  • Hitachi HUS151473VL3800 [HUS15733ASUN72G]
    (73.4GB - 15000 RPM - SCSI Disk)
 n/a
  • Fujitsu MAX3073NC [MAX3073NCSUN72G]
    (73.4GB - 15000 RPM - SCSI Disk)
 n/a
  • Seagate ST373455LC [ST373455LSUN72G]
    (73.4GB - 15000 RPM - SCSI Disk)
 n/a
  • Hitachi HUS153073VL3800 [HUS15733BSUN72G]
    (73.4GB - 15000 RPM - SCSI Disk)
 n/a
  • 1" SPUD Bracket
 n/a
XRA-SC1NB-146G15K [S] 540-6607 [C] 146.8GB - 15000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks n/a
  • 341-1986
  • Plate
 n/a
  • Seagate ST3146854LC [ST314685LSUN146G]
    (146GB - 15000 RPM - SCSI Disk)
 n/a
  • Hitachi HUS151414VL3800 [HUS15143ASUN146G]
    (146GB - 15000 RPM - SCSI Disk)
 n/a
  • Fujitsu MAX3147NC [MAX3147NCSUN146G]
    (146GB - 15000 RPM - SCSI Disk)
 n/a
  • Seagate ST3146855LC [ST314655LSUN146G]
    (146GB - 15000 RPM - SCSI Disk)
 n/a
  • Hitachi HUS153014VL3800 [HUS15143BSUN146G]
    (146GB - 15000 RPM - SCSI Disk)
 n/a
  • 1" SPUD Bracket
 n/a
XRA-SC1NB-300G15K [S] 540-7154 [F] 300GB - 15000 RPM, Disk Assembly with 1 bracket, 1 plate, and 1 of the following disks n/a
  • 341-1986
  • Plate
 n/a
  • Seagate ST3300655LC [ST330055LSUN300G]
    (300GB - 15000 RPM - SCSI Disk)
 n/a
  • Hitachi HUS153030VL3800 [HUS15303BSUN300G]
    (300GB - 15000 RPM - SCSI Disk)
 n/a
  • 1" SPUD Bracket
 n/a
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
X4150A-2 [S] 501-7415 [C] GigaSwift Ethernet UTP (GCS) n/a
X4151A-2 [S] 501-7430 [C] GigaSwift Ethernet MMF (GFS) n/a
X4445A [S] 501-6738 [C] Quad GigaSwift PCI-X Ethernet (QGE-X) n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 540-6706 [C] Blower Assembly [FT0-2] n/a
n/a 540-6712 [C] PCI Fan Assembly [FT3] n/a
NOTE: PCI Fan 540-6069-01 was used from March 2004 until May 2005. There is no fan available to replace 540-6069-01.
PCI Fans 540-6069-02, 540-6069-03, and 540-6712-01 are not compatible with systems manufactured prior to May 2005.
The dimension of the fan and the fan bracket changed from 80x32mm to 80x38mm.
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
X7703A-4 [S] 1GB DDR Memory Option, (2 × 512MB DIMMs)
370-7972 512MB PC2700 DIMM n/a
371-1116 512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster n/a
X7704A-4 [S] 2GB DDR1 Memory Option, (2 × 1GB DIMMs)
370-7973 1GB PC2700 DIMM n/a
371-1117 1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster n/a
X7711A-4 [S] 4GB DDR Memory Option, SPD 0.0 or 1.0 (2 × 2GB DIMMs)
370-7672 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster n/a
370-7974 2GB PC2700 DIMM n/a
n/a 540-6402 [C] Qty 2 - 2GB DIMMs (4GB Memory Assembly) n/a
  • 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
 n/a
  • 2GB PC2700 DIMM
 n/a
n/a 540-6776 [C] Qty 2 - 512MB DIMMs (1GB Memory Assembly) n/a
  • 512MB PC2700 DIMM
 n/a
  • 512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster
 n/a
n/a 540-6777 [C] Qty 2 - 1GB DIMMs (2GB Memory Assembly) n/a
  • 1GB PC2700 DIMM
 n/a
  • 1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster
n/a
NOTE: Reference the Open Boot PROM requirements for your system.
Miscellaneous
Option # Manufacturing
Part #		 Description Previous
Part #
X8217A-4 [S] 594-3295 Air Filter 10-Pack n/a
  • 370-6187
  • Air Filter
 n/a
X949A-4 2 [S] 594-2682 Wago DC Connector Set (10 pack) n/a
  • 130-6352
  • Wago DC Connector
 n/a
  • 230-4652
  • Wago DC Connector Strain Relief
 n/a
  • 230-4653
  • Wago DC Connector Opening Lever
 n/a
2 Wago Kit 565-1882 comes with the system. Wago 10 pack option X949A-4 is not required to install the system.
Power
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 300-1845 [C] Type D158 400 Watt DC Input Power Supply n/a
n/a 300-1846 [C] Type A192 400 Watt AC Input Power Supply n/a
n/a 530-3259 Power Distribution Board Cable n/a
n/a 540-6705 [C] Power Distribution Board (PDB) Assembly n/a
  • 501-7345
  • Power Distribution Board
 n/a
  • 530-3648
  • Power Distribution Board Cable
 n/a
  • 540-6715
  • Power Distribution Board Bracket
 n/a
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
X7903A-4 [S] 594-3294 2-Post 23-inch Rackmount Kit n/a
  • 341-0217
  • Left bracket
 n/a
  • 341-0218
  • Right bracket
 n/a
X7905A-4 [S] 540-6716 600mm Rackmount Kit n/a
X8100A-4 [S] 370-6691 19" slides n/a
n/a 370-6701 2-Post/4-Post Rackmount Kit n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
X7424A-4 [S] 540-6312 [C] DVD-RW Assembly n/a
  • 240-4588
  • Bracket
 n/a
  • Slimline 8X DVD-Writer / 24X CD-Writer
 n/a
  • Slimline 8X DVD-Writer / 24X CD-Writer
 n/a
  • Slimline 8X DVD-Writer / 24X CD-Writer
 390-0345 6
n/a 540-7753 [C] DVD-RW Assembly n/a
  • 240-4588
  • Bracket
 n/a
  • Slimline 8X DVD-Writer / 24X CD-Writer
 390-0345 3
3 Replaced 390-0289 in assembly 540-6312. (WO_35024)
4 Replaced 390-0345 in assembly 540-6312. (WO_38641)
5 Replaced 390-0289 in assembly 540-6312. (WO_35024)
6 Replaced 390-0289 in assembly 540-6312. (WO_35024)
7 Replaced 390-0345 in assembly 540-6312. (WO_38641)
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
SGXPCI2SCSILM320-Z [S] 7050788 [C] PCI/PCI-X Dual Ultra320 SCSI Adapter 375-3365 9 [C]
X4422A-2 [S] 501-7490 [C] Dual GigabitEthernet / Dual SCSI PCI Adapter n/a
n/a 375-3365 8 [C] PCI/PCI-X Dual Ultra320 SCSI Adapter n/a
8 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
9 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
X7440A-4 [S] 501-7660 1.593GHz CPU/Memory Module Assembly with 2GB Memory (4× 512MB DIMMs) n/a
  • 512MB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster
 n/a
  • 1.593GHz CPU/Memory Module Assembly, 0MB
 n/a
    • 370-7684
    • UltraSPARC IIIi Heatsink
 n/a
X7441A-4 [S] 501-7662 1.593GHz CPU/Memory Module Assembly with 4GB Memory (4× 1GB DIMMs) n/a
  • 1GB Registered ECC DDR1 DIMM (SPD 0.0 or 1.0) PC2100 & faster
n/a
  • 1.593GHz CPU/Memory Module Assembly, 0MB
 n/a
    • 370-7684
    • UltraSPARC IIIi Heatsink
 n/a
X7442A-4 [S] 501-7663 1.593GHz CPU/Memory Module Assembly with 8GB Memory (4× 2GB DIMMs) n/a
  • 2GB Registered DDR DIMM (SPD 0.0 or 1.0) PC2100 & faster
 n/a
  • 1.593GHz CPU/Memory Module Assembly, 0MB
 n/a
    • 370-7684
    • UltraSPARC IIIi Heatsink
 n/a
n/a 330-3746 [F] CPU Filler Panel n/a
n/a 540-6710 [C] Motherboard Assembly n/a
  • 340-7503
  • CPU Heatsink, Tomatillo
 n/a
  • 340-7996
  • Motherboard Tray
 n/a
  • N42 Motherboard w/o Tomatillo Heatsink
 n/a
  • 530-3309
  • Motherboard to Rear Flex Status Circuit Cable
 n/a
10 (January 2006) FAB 270-6344-07

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

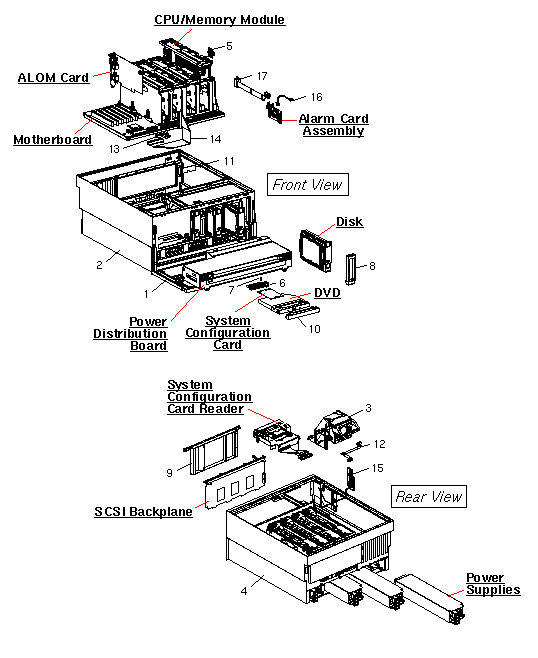

Netra 440 (post July 2006) Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
1 540-6711 Front Door Assembly
2 540-6703 Chassis Assembly
4
  • 540-6709
  • Chassis Sub Assembly
NS
    • 340-3256
    • PCI Filler Panel
NS
    • 340-7956
    • Chassis
NS
  • 341-0023
  • Front Flex Status Circuit Cover
NS
  • 370-6082
  • Front Flex Status Circuit
NS
  • 540-6702
  • Top Cover Assembly
3 540-6708 PCI Fan Assembly
  • 540-6712 [C]
  • PCI Fan Assembly [FT3]
5 530-3309 Motherboard to Rear Flex Status Circuit Cable
6 330-3514 System Configuration Card Reader Bezel
7 330-3724 System Configuration Card Reader Bezel Security Pin
8 341-0209 Empty Disk EMI Filler Panel
9 540-6714 Air Diverter
10 370-6464 Removable Media EMI Filler
11 370-6761 Rear Flex Status Circuit
16 530-3693 Alarm In Cable
17 530-3645 Alarm Out Cable
NS 530-2889 RJ45 to DB25 Serial Port Adapter
NS 530-3623 [C] Shielded RJ45 to RJ45 Cable, 4M
NS 565-1882 Wago DC Connector Assembly Kit
  • 130-4361
  • DC Connector
  • 230-1708
  • DC Connector Strain Relief
  • 230-1711
  • DC Connector Opening Lever
NS 594-3324 [C] Cable Kit
12
  • 530-3691
  • System Configuration Card Reader Cable
13
  • 530-3644
  • SCSI Backplane Power Cable
14
  • 530-3692
  • SCSI Backplane Data Cable
15
  • 530-3694
  • SCSI Backplane to Front Flex Status Circuit Cable
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
