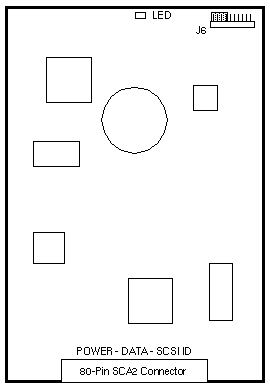

Seagate ST373455LC (73.4GB)

3 1/2" 15000 RPM Low Voltage Differential Ultra-320 SCSI

Option 9291A-Z
Option XTA-3310-73GB-15K
Option XTA-SC1CB-73G15K
Option XTA-SC1NC-73G15K
Option XTA-SC1CH-73G15K
Option XRA-SC1N2-73G15K
Option XRB-SC1NB-73G15K

390-0325
1" Height
Cheetah 15K.5
371-2605 540-6057 540-6097
V20z/V40z FRU
1" Bracket
X9291A-Z		 3000 Series FRU
1" Bracket
XTA-SC1NC-73G15K
02/06/04 - 10/26/05		 3000 Series FRU
1" Bracket
540-6449 540-6606 540-6915 540-7480
3120/3310/3320 FRU
1" Bracket
XTA-SC1NC-73G15K
(From 10/26/05)
XTA-3310-73GB-15K		 Netra240/440 FRU
NEBS Level 3
1" Bkt 540-3024
Plate 341-1986		 3000 Series FRU
1" Bracket
Lucent Technologies		 CT410/810 FRU
1" Bkt 540-3024
Plate 341-1986
XRB-SC1NB-73G15K
540-5923 540-7315
StorEdge D240
FRU
1" Bkt 540-3024
Plate 341-1986
XTA-SC1CB-73G15K		 StorEdge D240
Left/Right FRU
Bkt 340-6476
XTA-SC1CH-73G15K

Notes

  1. XTA-SC1NC-73G15K changed from 540-6057 to 540-6449 in October 2005. (WO_31505)
  2. XTA-3310-73GB-15K changed from 540-6097 to 540-6449 in October 2006. (WO_34374)
  3. Drive 390-0325 was released and added to 540-6606 in March 2007. (WO_35146)
  4. Assembly 540-5923 with 390-0325 was released in March 2007. (WO_35146)
  5. Drive 390-0325 was added to 540-6449, 540-6057, 540-6097 and 540-6915 in June 2007. (WO_36977)
  6. Drive 390-0325 was added to 540-7480 in February 2010. (WO_42769)
  7. The Seagate model number on the serial number label is ST373455LC.
  8. The Sun model number on the serial number label is ST373455LSUN72G.
  9. The Product Identification in SCSI Inquiry bytes 16-31 is ST373455LSUN72G.

D240 Notes

  1. Assembly 540-5923 with 390-0325 was released in March 2007. (WO_35146)
  2. Assembly 540-7315 with 390-0325 was released in June 2007. (WO_35358)
  3. Drive 390-0325 was removed from 540-5923 in December 2007. (WO_38277)
  4. Drive 390-0325 was removed from 540-7315 in December 2007. (WO_38339)

V20z/V40z Notes

  1. Assembly 371-2605 was released in February 2007. (WO_33464)
  2. ST373455LC was added as an alternate for 370-2605 in February 2007. (CW_01027)


Seagate ST373455LC (73.4GB)

3 1/2" 15000 RPM Low Voltage Differential Ultra-320 SCSI

Disk Arrays: StorEdge D240

Option XTA-SC1CB-73G15K
Option XTA-SC1CH-73G15K

390-0415
1" Height
Cheetah 15K.5
540-5923 540-7315
StorEdge D240
Spud Bracket FRU
1" Bkt 540-3024
Plate 341-1986
XTA-SC1CB-73G15K		 StorEdge D240
Left/Right FRU
Bkt 340-6476
XTA-SC1CH-73G15K

Notes

  1. Drive 390-0415 was released in April 2008. (WO_38951)
  2. Drive 390-0415 was added to 540-5923 and 540-7315 in April 2008. (WO_38951)
  3. Drive 390-0415 includes firmware unique to the StorEdge D240.
  4. The Seagate model number on the serial number label is ST373455LC.
  5. The Sun model number on the serial number label is ST373A55LSUN72G.
  6. The Product Identification in SCSI Inquiry bytes 16-31 is ST373A55LSUN72G.
