Oracle System Handbook - ISO 7.0 May 2018 Internal/Partner Edition

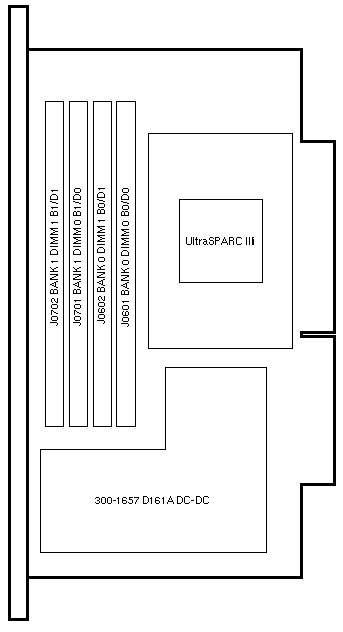

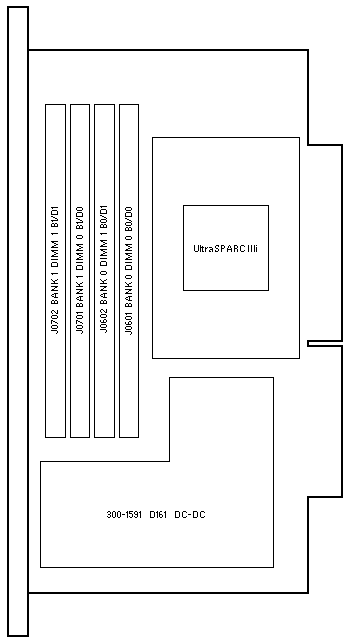

1.280GHz CPU/Memory Board

<a href="../../Systems/SupportHeaders/SYSBD_Netra440_CPU.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

501-6345 501-6370

0MB w/o USIIIi
FAB 270-6345 0MB 1.280GHz FRU

501-6532-02 501-6533-02

501-6370 + 2GB 501-6370 + 4GB

Netra 440 Codename: Chalupa 19

Notes

Mixing CPU/Memory Board speeds within a system is not supported.
The packing slip identifies 501-6370, 501-6532, and 501-6533 as 1.280GHz.
The 501-6532-02 was not structured to any Sun Fire V440 or Netra 440 system builds.

References

Sun Netra 440 Server Documentation.

1.280GHz CPU/Memory Board

<a href="../../Systems/SupportHeaders/SYSBD_Netra440_CPU_SH_ANCHOR_7105.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Options 7426 / 7436 / 7439

501-6345	501-6370
0MB w/o USIIIi FAB 270-6345	0MB 1.280GHz FRU

501-7105	501-7106	501-7202
501-6370 + 2GB N440 Option 7426	501-6370 + 4GB N440 Option 7436	501-6370 + 8GB N440 Option 7439

Netra 440 Codename: Chalupa 19

Notes

Mixing CPU/Memory Board speeds within a system is not supported.
The packing slip identifies 501-6370, 501-6532, and 501-6533 as 1.280GHz.

References

Sun Netra 440 Server Documentation.

1.593GHz CPU/Memory Board

<a href="../../Systems/SupportHeaders/SYSBD_Netra440_CPU_SH_ANCHOR_6788.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Options 7429 / 7430 / 7440 / 7441 / 7442 / 7444 / 7445 / 7446 / 7447A-Z

501-6778	501-6788	501-7649
0MB w/o USIIIi FAB 270-6345	0MB 1.593GHz FRU V440 + Netra 440	0MB 1.593GHz FRU Option 7447A-Z May 2006
501-6789	501-6786	501-7093
501-6788 + 2GB N440 Option 7440 V440 Option 7444	501-6788 + 4GB N440 Option 7441 V440 Option 7445	501-6788 + 8GB N440 Option 7442 V440 Option 7446
501-7648	501-7650	501-7651
501-7649 + 2GB Option 7440 May 2006	501-7649 + 4GB Option 7441 May 2006	501-7649 + 8GB Option 7442 May 2006

Netra 440 Codename: Chalupa 19

Notes

The minimum Netra 440 operating system is Solaris 8 7/03 or Solaris 9 4/04.
Mixing CPU/Memory Board speeds within a system is not supported.
Empty Netra 440 CPU/Memory slots do not require Filler Panel 330-3746.
The 1.6GHz CPU/Memory Board qualification was done with OBP 4.16 Version 1.
The packing slip identifies 501-6786, 501-6788, 501-6789, 501-7648, 501-7650, and 501-7651 as 1.6GHz.

References

Sun Netra 440 Server Documentation.

1.593GHz CPU/Memory Board

<a href="../../Systems/SupportHeaders/SYSBD_Netra440_CPU_SH_ANCHOR_7342.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

Options 7440A-Z / 7441A-Z / 7442A-Z

501-7342	501-7661
0MB w/o USIIIi FAB 270-7127 January 2006	0MB 1.593GHz FRU May 2006

501-7660	501-7662	501-7663
501-7661 + 2GB Option 7440A-Z May 2006	501-7661 + 4GB Option 7441A-Z May 2006	501-7661 + 8GB Option 7442A-Z May 2006

Netra 440 Codename: Chalupa 19

Notes

The minimum operating system is Solaris 8 7/03 or Solaris 9 4/04.
Mixing CPU/Memory Board speeds within a system is not supported.
Empty Netra 440 CPU/Memory slots do not require Filler Panel 330-3746.
The packing slip identifies 501-7660, 501-7662, and 501-7663 as 1.6GHz.

References

Sun Netra 440 Server Documentation.
