Hitachi HUS153014VL3800 (146.8GB)

3 1/2" 15000 RPM Low Voltage Differential Ultra-320 SCSI

Option XRA-SC1CB-146G15KZ
Option XRA-SC1NB-146G15K
Option XTA-SC1NC-146G15K

390-0361
1" Height
ViperB
540-6461 540-6494 540-6607
Spud Bracket FRU
w 1" Bracket 540-3024
w Plate 341-1986
XRA-SC1CB-146G15KZ		 3120/3320 FRU
1" Bracket
XTA-SC1NC-146G15K		 N240/440/1290 FRU
NEBS Level 3
1" Bracket 540-3024
Plate 341-1986
XRA-SC1NB-146G15K

Notes

  1. Drive 390-0361 was released in October 2007. (WO_37974)
  2. Drive 390-0361 was added to 540-6494 in October 2007. (WO_37978)
  3. Drive 390-0361 was added to 540-6607 in April 2008. (WO_38485)
  4. Drive 390-0361 was added to 540-6461 in January 2008. (WO_38486)

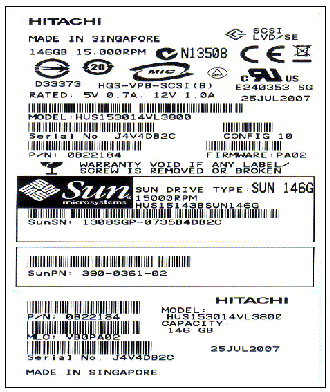

  5. The Hitachi model number on the serial number label is HUS153014VL3800.
  6. The Sun model number on the serial number label is HUS15143BSUN146G.
  7. The Product Identification in SCSI Inquiry bytes 16-31 is HUS15143BSUN146G.


Hitachi HUS153014VL3800 (146.8GB)

3 1/2" 15000 RPM Low Voltage Differential Ultra-320 SCSI

Disk Arrays: StorEdge D240

Option XTA-SC1CB-146G15K
Option XTA-SC1CH-146G15K

390-0418
1" Height
ViperB
540-7316 540-7591
StorEdge D240
Left/Right FRU
Bracket 340-6476
XTA-SC1CH-146G15K		 Spud Bracket FRU
1" Bracket 540-3024
Plate 341-1986
XTA-SC1CB-146G15K

Notes

  1. Drive 390-0418 was released in December 2007. (WO_38277)
  2. Drive 390-0418 includes firmware unique to the StorEdge D240.
  3. Drive 390-0418 and 390-0361 are the same Hitachi model with different firmware.

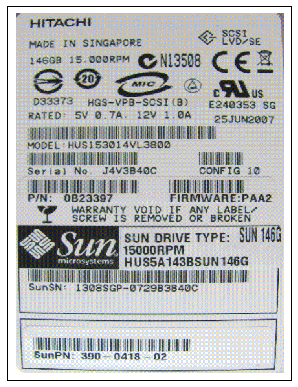

  4. The Hitachi model number on the serial number label is HUS153014VL3800.
  5. The Sun model number on the serial number label is HUS5A143BSUN146G.
  6. The Product Identification in SCSI Inquiry bytes 16-31 is HUS15143BSUN146G.

D240 Notes

  1. Drive 390-0418 includes firmware unique to the StorEdge D240.
  2. Drive 390-0418 and 390-0361 are the same Hitachi model with different firmware.
  3. Assembly 540-7591 with 390-0418 was released in December 2007. (WO_38277)
  4. Assembly 540-7591 replaced 540-6461 in 594-4544 in December 2007. (WO_38277)
  5. Drive 390-0418 was added to 540-7316 in December 2007. (WO_38339)
