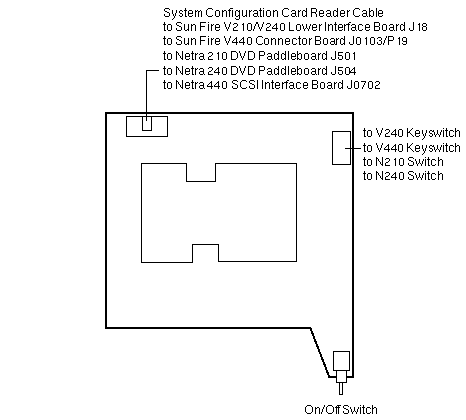

System Configuration Card Reader

Sun Fire V2x0 Codename: Enchilada Sun Fire V440 Codename: Chalupa Netra 210 Codename: Salsa 19 Netra 240 Codename: Enchilada 19 Netra 440 Codename: Chalupa 19

Sun Fire V210/V240 Notes

1. The SCCR FRU is F370-5127.
2. There is no Sun part number for the SCCR to V210/V240 Interface Board Cable.
3. There is no Sun part number for the DVD/SCCR to V210/V240 System Board Cable.

Sun Fire V440 Notes

1. The SCCR FRU is F370-5127.
2. The SCCR Cable is 530-3151.

Netra 210 Notes

1. The SCCR FRU is F370-7676.
2. SCCR FRU F370-7676 includes DVD/SCCR Bracket, DVD Paddleboard, Paddleboard to SCCR Cable, Paddleboard to System Board Cable, Rotary Switch, and SCCR.

Netra 240 Notes

1. The SCCR FRU is F370-6126.
2. SCCR FRU F370-6126 includes DVD Bracket, DVD Cable/Paddleboard, Paddleboard to SCCR Cable, Rotary Switch, SCCR, and SCCR Bracket.
3. The SCCR FRU is F371-0819.
4. SCCR FRU F371-0819 includes DVD Bracket, DVD Cable/Paddleboard, Paddleboard to SCCR Cable, Rotary Switch, SCCR, and SCCR Bracket.

Netra 240 Notes (post July 2006)

1. The SCCR FRU is F370-6126.
2. SCCR FRU F370-6126 includes DVD Bracket, DVD Cable/Paddleboard, Paddleboard to SCCR Cable, Rotary Switch, SCCR, and SCCR Bracket.

Netra 440 Notes

1. The SCCR FRU is F540-5856.
2. SCCR FRU F540-5856 includes DVD/SCCR Bracket, DVD Cable/Paddleboard, Rotary Switch, SCCR, and SCCR Cable 530-3254.

Netra 440 Notes (post July 2006)

1. The SCCR FRU is F540-6707.
2. SCCR FRU F540-6707 includes DVD/SCCR Bracket, DVD Cable/Paddleboard, Rotary Switch, SCCR, and SCCR Cable 530-3254.

References

1. Sun Fire V210 and V240 Servers Installation Guide, 816-4825.
2. Sun Fire V210 and V240 Servers Administration Guide, 816-4826.
3. Sun Fire V440 Server Documentation.
4. Netra 210 Server Documentation.
5. Netra 240 Server Documentation.
6. Netra 440 Server Documentation.
