Sun Fire X4540 - Full Components List
|
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
|
|
|
Batteries
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
371-2210
[C]  Buy
|
3V Lithium Coin Cell Battery
|
n/a |
|
CPU Module
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
371-4042
[F]
|
2.3 GHz CPU, Opteron 2356 Quad Core, B3 Stepping, 75W
|
n/a |
| n/a |
371-4438
[F]
|
2.7 GHz CPU, Opteron 2384 Quad Core, C2 Stepping, 75W |
n/a |
| n/a |
371-4681
[F]
|
2.6 GHz CPU, Opteron 2435 6-Core, D0 Stepping, 75W
|
n/a |
|
Cables
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X312E
[S]
|
Localized Power Code Kit - China |
|
180-1982
[C]
|
IEC 320 C13 to GB 2099/GB 1002 - 10A/250V 2.5M |
n/a |
|
X312L
[S]
|
Localized Power Cord Kit - Continental Europe |
|
180-1993
[C]
|
IEC 320 C13 to CEE 7/7 10A/250V 2.5M Black |
n/a |
|
X317L
[S]
|
Localized Power Cord Kit - U.K. |
|
180-1997
[C] Buy
|
IEC 320 C13 to BS 1363 - 10A/250V 2.5M Black |
n/a |
|
X320A
[S]
|
Localized Power Cord Kit - North America/Asia |
|
180-2164
[C] Buy
|
IEC 320 C13 to NEMA 6-15P - 10A/250V 2.0M Black |
n/a |
|
X330A
[S]
|
Power Cord 220V 15A US/Japan |
|
180-2075
[C]
|
Power Cord 220V 15A US/Japan |
n/a |
|
X340L
[S]
|
Power Kit for North America, L6-20 20A Twist Lock Plug |
|
180-2070
[C]
|
NEMA L6-20P to IEC 320 C13 - 4.0M |
n/a |
|
X384L
[S]
|
Localized Power Cord Kit - Italian |
|
180-1996
[C]
|
IEC 320 C13 to CEI 23-16/VII - 10A/250V 2.5M Black |
n/a |
|
X386L
[S]
|
Localized Power Cord Kit - Australian |
|
180-1998
[C]
|
IEC 320 C13 to AS 3112 - 10A/250V 2.5M Black |
n/a |
| n/a |
180-1995
[C]
|
IEC 320 C13 to Asfnit 107 - 10A/250V 2.5M Black |
n/a |
|
Communication
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X1236A-Z
[S]
|
375-3382
[F]
|
Dual Port 10Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile |
n/a |
|
X4217A-Z
[S]
|
375-3549
[F]
|
Dual Port 20Gb/sec 4x PCI Express Infiniband Host Channel Adapter - Low Profile |
n/a |
|
X4237A
[S]
|
375-3606
[C]
|
Sun Dual Port 40Gb/sec 4x Infiniband QDR Host Channel Adapter PCI Express |
n/a |
|
Disks
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
XRA-ST1CH-2T7K
[S]
|
541-4241 [C]
|
2TB - 7200RPM SATA, Disk Assemblywith 1 bracket and 1 of the following disk: |
n/a |
|
- Hitachi H7220AA30 [H7220AA30SUN2.0T]
(2TB - 7200 RPM - SATA Disk)
|
n/a |
|
- Disk Drive Mounting Bracket
|
n/a |
|
XTA7210-LOGZ18GB
[S]
|
540-7763 [C]
|
18GB Solid State Drive SATA Assembly |
n/a |
|
- Stec Z16ISD3B-18UC [Inquiry Unknown] (18GB - 3.5" Solid State - SATA Disk)
|
n/a |
|
- Disk Drive Mounting Bracket
|
n/a |
| n/a |
540-7507 1
[C]
|
1TB - 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:
|
n/a |
|
- Hitachi HUA721010KLA330 [HUA7210SASUN1.0T]
(1TB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi H7210CA30 [H7210CA30SUN1.0T] (1TB - 7200 RPM- SATA Disk)
|
n/a |
|
- Disk Drive Mounting Bracket
|
n/a |
| n/a |
541-1468 [C]
|
250GB - 7200RPM SATA, Disk Assembly with 1 of the following disks: |
n/a |
|
- Hitachi HDT722525DLA380 [HDS7225SBSUN250G]
(250GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Seagate ST3250820NS [ST32500NSSUN250G]
(250GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi H7210CA30 [H7210CA30SUN1.0T] (250GB - 7200 RPM- SATA Disk)
|
n/a |
|
- Disk Drive Mounting Bracket
|
n/a |
| n/a |
541-3050 4
[C]
|
500GB - 7200RPM SATA, Disk Assembly with 1 of the following disks: |
n/a |
|
- Hitachi HUA721050KLA330 [HUA7250SBSUN500G]
(500GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi H7210CA30 [H7210CA30SUN1.0T] (500GB - 7200 RPM- SATA Disk)
|
n/a |
|
- Disk Drive Mounting Bracket
|
n/a |
| n/a |
541-3678 6
[C]
|
250GB - 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Seagate ST3250820NS [ST32500NSSUN250G]
(250GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Seagate ST3250310NS [ST32502NSSUN250G]
(250GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi H7210CA30 [H7210CA30SUN1.0T] (250GB - 7200 RPM- SATA Disk)
|
n/a |
|
- Disk Drive Mounting Bracket
|
n/a |
| n/a |
541-3679 [C]
|
500GB - 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Seagate ST3500320NS [ST35002NSSUN500G]
(500GB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi H7210CA30 [H7210CA30SUN1.0T] (500GB - 7200 RPM- SATA Disk)
|
n/a |
|
- Disk Drive Mounting Bracket
|
n/a |
| n/a |
541-3730 [C]
|
1TB - 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks: |
n/a |
|
- Seagate ST31000340NS [ST31000NSSUN1.0T]
(1TB - 7200 RPM - SATA Disk)
|
n/a |
|
- Hitachi H7210CA30 [H7210CA30SUN1.0T] (1TB - 7200 RPM- SATA Disk)
|
n/a |
|
- Disk Drive Mounting Bracket
|
n/a |
1 Drive 390-0414 was used in 540-7507 in February 2009 under Deviation WO_40818.
2 Drive 7067177 is a 1TB Hitachi H7210CA30 with a maximium capacity of 250GB.
3 Drive 7067178 is a 1TB Hitachi H7210CA30 with a maximium capacity of 500GB.
4 Drive 390-0412 was used in 541-3050 in February 2009 under Deviation WO_40818.
5 Drive 7067177 is a 1TB Hitachi H7210CA30 with a maximium capacity of 250GB.
6 Drive 390-0354 was used in 541-3678 in September 2009 under Deviation WO_42089.
7 Drive 7067178 is a 1TB Hitachi H7210CA30 with a maximium capacity of 500GB.
NOTE: Disk 390-0246 was replaced by 390-0354 in assembly 541-1468 in July 2007.
(WO_37357)
|
|
Ethernet
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X1027A-Z
[S]
|
7054890
[F]
|
PCI Express Dual 10-Gigabit Ethernet Fiber |
501-7283
[F]
|
|
X1106A-Z
[S]
|
375-3585
[F]
|
Intel PRO/10GbE-SR x8 PCI Express |
n/a |
|
X4446A-Z
[S]
|
7054739
[C]
|
PCI Express Quad Gigabit Ethernet UTP |
375-3481
[C]
|
|
X5558A
[S]
|
7058828
[C]
|
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) |
375-3301
[C]
|
|
X5560A-Z
[S]
|
375-3495
[C]
|
10Gb/Sec XFP Optical Transceiver Single Mode Long Range (LR) |
n/a |
|
X7280A-2
[S]
|
371-0905
[F]
|
PCI Express Dual Gigabit Ethernet UTP |
n/a |
|
X7281A-2
[S]
|
7056733
[F]
|
PCI Express Dual Gigabit Ethernet MMF |
371-0904
[F]
|
| n/a |
371-0904
[F]
|
PCI Express Dual Gigabit Ethernet MMF |
n/a |
| n/a |
375-3301
[C]
|
10Gb/sec XFP Optical Transceiver Multi Mode Short Range (SR) |
n/a |
| n/a |
375-3481
[C]
|
PCI Express Quad Gigabit Ethernet UTP |
n/a |
| n/a |
501-7283
[F]
|
PCI Express Dual 10-Gigabit Ethernet Fiber |
n/a |
|
Fan
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
541-0458 [C]
|
Fan Module |
n/a |
|
Fibre Channel
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCIE1FC-EM4
[S]
|
375-3396
[F]
|
4Gigabit/Sec PCI Express Single FC Host Adapter |
n/a |
|
7053428
[F]
|
4Gigabit/Sec PCI Express Single FC Host Adapter |
n/a |
|
SG-XPCIE1FC-EM8-Z
[S]
|
371-4295
[C]
|
8Gigabit/Sec PCI Express Single FC Host Adapter |
n/a |
|
7053433
[C]
|
8Gigabit/Sec PCI Express Single FC Host Adapter |
n/a |
|
SG-XPCIE1FC-QF4
[S]
|
375-3355
[F]
|
4Gigabit/Sec PCI Express Single FC Host Adapter |
n/a |
|
SG-XPCIE1FC-QF8-Z
[S]
|
371-4324
[C]
|
8Gigabit/Sec PCI Express Single FC Host Adapter |
n/a |
|
SG-XPCIE2FC-EM4
[S]
|
375-3397
[F]
|
4Gigabit/Sec PCI Express Dual FC Host Adapter |
n/a |
|
7053427
[F]
|
4Gigabit/Sec PCI Express Dual FC Host Adapter |
n/a |
|
SG-XPCIE2FC-EM8-Z
[S]
|
7053434
[C]
|
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex |
371-4306
[C]
|
|
SG-XPCIE2FC-QF4
[S]
|
375-3356
[F]
|
4Gigabit/Sec PCI Express Dual FC Host Adapter |
n/a |
|
SG-XPCIE2FC-QF8-Z
[S]
|
371-4325
[F]
|
8Gigabit/Sec PCI Express Dual FC Host Adapter |
n/a |
| n/a |
371-4306
[C]
|
8Gigabit/Sec PCI Express Dual FC Host Adapter |
n/a |
|
Memory
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X4540
[S]
|
4GB (2 × 2GB) Memory |
|
371-4180
|
2GB DDR667/PC2-5300 DIMM |
n/a |
|
X5034
[S]
|
F541-1313 [C]
|
4GB (2 × 2GB) Memory [SKU] |
n/a |
|
|
n/a |
|
X5035
[S]
|
F541-1304 [C]
|
8GB (2 × 4GB) Memory [SKU] |
n/a |
|
- 4 GB DDR667/PC2-5300 DIMM
|
n/a |
| n/a |
F541-3360 [C]
|
4GB (2 × 2GB) Memory [SKU] |
n/a |
|
|
n/a |
| n/a |
F541-3419 [C]
|
16GB (2 × 8GB DDR2-667 Registered ECC dual-rank DIMMs) [SKU] |
n/a |
|
- 8GB DDR2-667 dual-rank Memory DIMM
|
n/a |
|
Power
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X5037
[S]
|
300-2161
[C]
|
Type A240 1500 Watt AC Input Power Supply |
n/a |
| n/a |
300-1787
[C]
|
Type A205 1500 Watt AC Input Power Supply |
n/a |
| n/a |
300-2310
[C]
|
Type A240 1500 Watt AC Input Power Supply Type |
n/a |
| n/a |
501-7104
[F]
|
Power Distribution Board |
n/a |
| n/a |
511-1101
[F]
|
Power Distribution Board |
n/a |
|
Rack
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
X4228A-Z
[S]
|
371-3493 [C]
|
Slide Rail |
n/a |
|
X4541
[S]
|
350-1393 [C]
|
Slide Rail |
n/a |
|
X4542
[S]
|
350-1363 [C]
|
Cable Management Arm |
n/a |
| n/a |
371-2886 [C]
|
Slide Rail and Cable Management Arm Combo Kit |
n/a |
|
SCSI
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
|
SG-XPCIE2SCSIU320Z
[S]
|
7050790
[F]
|
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter |
375-3357
[F]
|
|
SG-XPCIE8SAS-E-Z
[S]
|
7050793
[F]
|
PCI Express 8-Port Host Adapter |
375-3487
[F]
|
|
SGX-SAS6-EXT-Z
[S]
|
7047853
[F]
|
8-Port 6Gbps SAS-2 PCI Express HBA (LSI) |
375-3641
[F]
|
|
SGXPCIESAS-R-EXT-Z
[S]
|
371-3253 [C]
|
Lithium Ion Battery Module |
n/a |
|
375-3537
[C]
|
8-Port SAS RAID External HBA |
n/a |
|
XTA-FAS-S3IE96GB
[S]
|
541-3731
|
96GB PCI Express Flash Accelerator F20 SAS HBA |
n/a |
|
- Energy Storage Module (ESM)
|
n/a |
|
|
511-1275
[C]
|
|
- 24GB Solid State Flash Memory Module, FW D21Y
|
371-4415
[C]
|
| n/a |
375-3357
[F]
|
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter |
n/a |
| n/a |
375-3487
[F]
|
PCI Express 8-Port Host Adapter |
n/a |
| n/a |
375-3641
[F]
|
8-Port 6Gbps SAS-2 PCI Express HBA (LSI) |
n/a |
|
System Board
|
| Option # |
Manufacturing
Part # |
Description |
Previous
Part # |
| n/a |
541-0491
[F]
|
System Controller Assembly |
n/a |
|
|
n/a |
|
- 3V Lithium Coin Cell Battery
|
n/a |
|
|
n/a |
|
- System Controller Enclosure
|
n/a |
| n/a |
541-1219 |
System Controller Assembly (32GB, 2× 2.3GHz) |
n/a |
|
- Heatsink with Captive Screws and Springs
|
n/a |
|
|
n/a |
|
- 2.3 GHz CPU, Opteron 2356 Quad Core, B3 Stepping, 75W
|
n/a |
|
- System Controller Assembly
|
541-0491
[F]
|
|
|
n/a |
|
- 3V Lithium Coin Cell Battery
|
n/a |
|
|
n/a |
|
- System Controller Enclosure
|
n/a |
| n/a |
541-3241 |
System Controller Assembly (64GB, 2× 2.3GHz) |
n/a |
|
- Heatsink with Captive Screws and Springs
|
n/a |
|
- 4 GB DDR667/PC2-5300 DIMM
|
n/a |
|
- 2.3 GHz CPU, Opteron 2356 Quad Core, B3 Stepping, 75W
|
n/a |
|
- System Controller Assembly
|
541-0491
[F]
|
|
|
n/a |
|
- 3V Lithium Coin Cell Battery
|
n/a |
|
|
n/a |
|
- System Controller Enclosure
|
n/a |
| n/a |
541-3750 |
System Controller Assembly (32GB, 2× 2.7GHz) |
n/a |
|
- Heatsink with Captive Screws and Springs
|
n/a |
|
|
n/a |
|
- 2.7 GHz CPU, Opteron 2384 Quad Core, C2 Stepping, 75W
|
n/a |
|
- System Controller Assembly
|
541-0491
[F]
|
|
|
n/a |
|
- 3V Lithium Coin Cell Battery
|
n/a |
|
|
n/a |
|
- System Controller Enclosure
|
n/a |
| n/a |
541-3751 |
System Board Assembly (64GB, 2× 2.7GHz) |
n/a |
|
- Heatsink with Captive Screws and Springs
|
n/a |
|
- 4 GB DDR667/PC2-5300 DIMM
|
n/a |
|
- 2.7 GHz CPU, Opteron 2384 Quad Core, C2 Stepping, 75W
|
n/a |
|
- System Controller Assembly
|
541-0491
[F]
|
|
|
n/a |
|
- 3V Lithium Coin Cell Battery
|
n/a |
|
|
n/a |
|
- System Controller Enclosure
|
n/a |
| n/a |
541-4144 |
System Controller Assembly (32GB, 2 × 2.6GHz) |
n/a |
|
- Heatsink with Captive Screws and Springs
|
n/a |
|
|
n/a |
|
- 2.6 GHz CPU, Opteron 2435 6-Core, D0 Stepping, 75W
|
n/a |
|
- System Controller Assembly
|
541-0491
[F]
|
|
|
n/a |
|
- 3V Lithium Coin Cell Battery
|
n/a |
|
|
n/a |
|
- System Controller Enclosure
|
n/a |
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
|
| Table Legend |
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
|

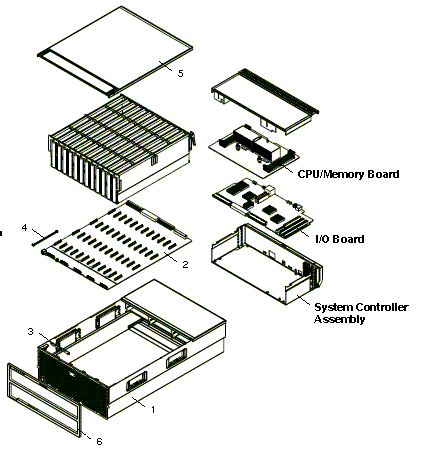

| Code |
Manufacturing Part# |
Description |
| NS |
599-3104 |
Base Chassis Assembly |
| 1 |
|
|
| 2 |
|
|
| 3 |
|
|
| 4 |
|
|
| 6 |
|
|
| NS |
|
|
| 5 |
|
|
| NS |
599-3546 |
L5 Base Chassis Assembly |
| 1 |
|
|
| 2 |
|
|
| 3 |
|
|
| 4 |
|
|
| 5 |
|
|
| 6 |
|
|
| NS |
|
|
| 5 |
|
|
NOTE: Chassis 350-1272 was used in place of 541-1221 under deviation WO_40703.
|
|
