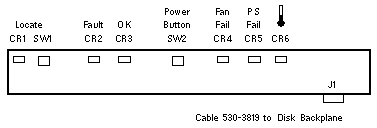

LED/Switch Board

Storage 7210 Codename: Fugu Storage J4500 Codename: Loki Sun Fire X4500 Codename: Thumper Sun Fire X4540 Codename: Thor

Notes

1. There is only 50 mm of clearance between the board and the fan cover hinge.
2. A stubby screwdriver will not fit between the board and the fan cover hinge.
3. A standard length screwdriver can not be positioned at the proper angle.
4. Use a right angled #1 Phillips screwdriver to loosten the three retaining screws.
5. The screws are stainless steel and will not adhear to a magnetic tip screwdriver.
6. Use caution not to drop screws into the chassis. They are difficult to remove.
7. The LED/Switch Board and cable is included with X4500 Chassis FRU 541-1907.
8. The LED/Switch Board FRU F501-7192 includes Cable 530-3819.

References

1. Sun Fire X4500 Server Documentation.
2. Sun Fire X4540 Server Documentation.
3. Sun Storage J4500 Array Documentation.
4. Sun Storage 7210 Unified Storage System Installation Guide, 820-3757.
5. Sun Storage 7210 Unified Storage System Service Manual, 820-4160.
