501-7818	541-0491	541-3758

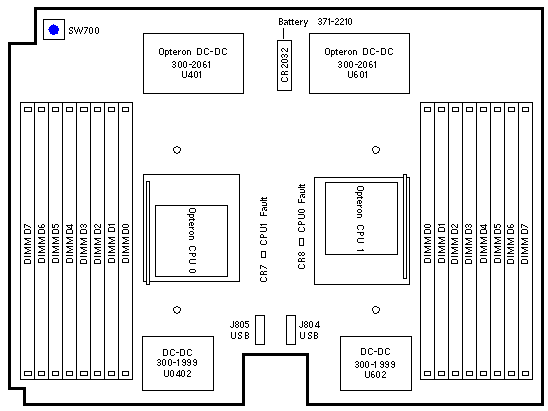

CPU/Memory Board w/o CPU or Memory	System Controller FRU CPU/Memory + I/O w/o CPU or Memory	System Controller FRU CPU/Memory + I/O w/o CPU or Memory

541-1219	541-3241
32GB System Controller 2x Opteron 2356 16x 2GB 371-1338	64GB System Controller 2x Opteron 2356 16x 4GB 371-2956
541-3750	541-3751
32GB System Controller 2x Opteron 2384 16x 2GB 371-4180	64GB System Controller 2x Opteron 2384 16x 4GB 371-2956

Sun Fire X4540 Codename: Thor Storage 7210 Codename: Fugu

Notes

1. The minimum Solaris operating system is Solaris 10 5/08.
2. DIMM pairs require matching characteristics including manufacturer, size, and speed.
3. Replace faulty DIMMs as a pair. The DIMM FRU includes two matching DIMMs.
4. Fault Remind Button SW1 lights the CPU/Memory fault LEDs for up to one minute.

X4540 Notes

1. F541-0491 and F541-3758 do not include Heatsinks or Processors.
2. F541-0491 and F541-3758 include one Alcohol Wipe and one 310-0049 Thermal Grease Syringe.
3. Assembly 541-0491 only supports Opteron 2356 (Barcelona).
4. Assembly 541-0491 does not support Opteron 2384 (Shanghai).
5. Assembly 541-3758 supports Opteron 2356 (Barcelona) and 2384 (Shanghai).
6. Assembly 541-3758 includes I/O Board 501-7819-07 with BIOS and ILOM changes required to support Opteron 2384 (Shanghai). (WO_40451)
7. Assembly 541-3758 includes CPU/Memory Board 501-7818-04 with capacitor changes required to support Opteron 2384 (Shanghai). (WO_40146)
8. Compact Flash Filler 343-1135 was added to the System Controller in August 2010 to reduce radiated emissions. (WO_43587)

7210 Notes

1. F541-0491 does not include Heatsinks or Processors.
2. F541-0491 includes one Alcohol Wipe and one 310-0049 Thermal Grease Syringe.
3. Assembly 541-0491 only supports Opteron 2356 (Barcelona).
4. Assembly 541-0491 does not support Opteron 2384 (Shanghai).

References

1. Sun Fire X4540 Server Documentation.
2. Sun Fire X4500-to-X4540 Migration User's Guide, 820-6559.
3. Sun Storage 7210 Unified Storage System Installation Guide, 820-3757.
4. Sun Storage 7210 Unified Storage System Service Manual, 820-4160.
