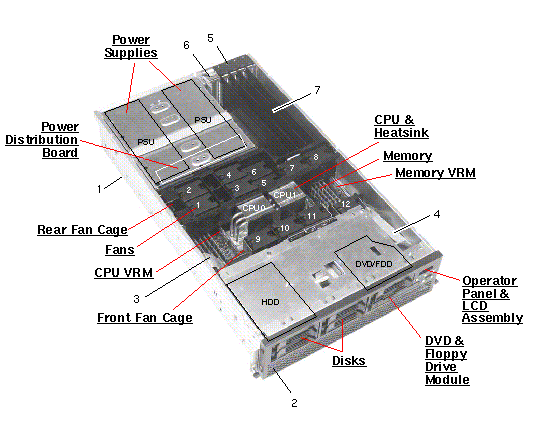

Sun Fire V40z (post July 2006) - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Batteries
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-2210 [C] Buy 3V Lithium Coin Cell Battery n/a
CPU Module
Option # Manufacturing
Part #		 Description Previous
Part #
X4053A-Z [S] 371-1781 [C] 2.8GHz Dual Core CPU, AMD Opteron 890 E6 Stepping, 95W n/a
X7244A-Z [S] 370-7961 [C] 2.8GHz CPU, AMD Opteron 854, E4 Stepping n/a
X7248A-Z [S] 371-0291 [C] 2.4GHz Dual Core CPU, AMD Opteron 880, E6 Stepping, 95W n/a
X8210A-Z [S] 371-1760 [C] 2.6 GHz CPU, Opteron 885 E6 Stepping Dual Core, 95W n/a
X8212A-Z [S] 371-1759 [C] 3.0GHz CPU, AMD Opteron 856, E4 Stepping n/a
X9869A-Z [S] 370-7705 [C] 2.4GHz CPU, AMD Opteron 850, E4 Stepping n/a
X9870A-Z [S] 370-7706 [C] 2.6GHz CPU, AMD Opteron 852, E4 Stepping n/a
n/a None 1 CPU Heatsink and Clip n/a
1 The CPU Heatsink and Clip are not available as FRUs, and are not included with the Opteron CRU.
NOTE: Mixing Opteron processor steppings in the V40z is not supported.
NOTE: The Heatsink and CPU/Memory Voltage Regulators are not included with the CPU Module x-options.
Communication
Option # Manufacturing
Part #		 Description Previous
Part #
X9270A-Z 371-1633 [C] Infiniband Topspin PCI-X Host Channel Adapter n/a
X1333A-4 [S] 375-3418 [C] Infiniband PCI-X Card n/a
Disks
Option # Manufacturing
Part #		 Description Previous
Part #
X4154A-Z 371-1627 2 [C] (146GB - 15000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
371-2526 Fujitsu MAX3147NC
(146GB - 15000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
371-2606 (146GB - 15000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
X9256A-Z 371-1452 [C] Seagate ST373207LC
(73GB - 10000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
371-1453 [C] Fujitsu MAW3073NC
(73GB - 10000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
X9291A-Z 371-1456 3 [C] (73.4GB - 15000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
371-2525 [C] Fujitsu MAX3073NC
(73.4GB - 15000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
371-2605 [C] Seagate ST373454LC
(73.4GB - 15000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
X9257A-Z [S] 371-1454 [C] (146GB - 10000 RPM - SCSI Disk) Assembly/CRU with 1" Bracket n/a
371-2441 [C] Fujitsu MAW3147NC
(146GB - 10000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
X9883A-Z [S] 371-1455 [C] (300GB - 10000 RPM - SCSI Disk)
Assembly/CRU with 1" Bracket		 n/a
2 Replaced by 371-2526 and 371-2606 in February 2006.
3 371-1456 was replaced in February 2007 by 371-2525 (Fujitsu) and 371-2605 (Seagate). (WO_33464)
NOTE: Make and Model of disks supported in the Sun Fire V40z are controlled by the external manufacturer and are not available in most cases.
Ethernet
Option # Manufacturing
Part #		 Description Previous
Part #
X9273A-Z 371-1630 [C] PCI-X Quad Gigabit Ethernet n/a
X4150A-2 [S] 501-7415 [C] GigaSwift Ethernet UTP (GCS) n/a
X4151A-2 [S] 501-7430 [C] GigaSwift Ethernet MMF (GFS) n/a
X4445A [S] 501-6738 [C] Quad GigaSwift PCI-X Ethernet (QGE-X) n/a
X5544A-4 [S] 10Gb PCI-X Ethernet Adapter, no transceiver
501-7413 [C] 10Gb PCI-X Ethernet Adapter n/a
  • 370-7665
  • Bracket Standard 10Gb PCI-X Ethernet
 n/a
  • 370-7792
  • Bracket Low-Profile 10Gb PCI-X Ethernet
 n/a
X7285A [S] 371-0911 [C] Low Profile PCI-X Dual Gigabit Ethernet UTP n/a
X7286A [S] 371-0912 [C] Low Profile PCI-X Single Gigabit Ethernet MMF n/a
Fan
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 371-1466 [C] System Cooling Fan n/a
Fibre Channel
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCI1FC-EM2 [S] 375-3304 [C] 2Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-EM4-Z [S] 375-3398 [C] 4Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-QF4 [S] 375-3354 [C] 4Gb PCI-X Single FC Host Adapter n/a
SG-XPCI1FC-QLC-Z [S] 375-3364 [C] Entry-Level 2Gb PCI-X Single FC Host Adapter n/a
SG-XPCI2FC-EM2 [S] 375-3305 [C] 2Gb PCI-X Dual FC Host Adapter n/a
SG-XPCI2FC-EM4-Z [S] 7058528 [C] 4Gb PCI-X Dual FC Host Adapter 375-3399 [C]
SG-XPCI2FC-QF2-Z [S] 375-3363 [C] 2Gb PCI/PCI-X Dual FC Host Adapter n/a
SG-XPCI2FC-QF4 [S] 7060890 [C] 4Gb PCI-X Dual FC Host Adapter 375-3294 [C]
X9279A-Z [S] 371-1629 [C] 2Gb/Sec Single FC PCI-X Host Adapter n/a
n/a 375-3294 [C] 4Gb PCI-X Dual FC Host Adapter n/a
n/a 375-3399 [C] 4Gb PCI-X Dual FC Host Adapter n/a
Memory
Option # Manufacturing
Part #		 Description Previous
Part #
X9295A-Z 540-6835 [C] Qty 2 - 512MB DDR400 DIMMs (1GB Memory Assembly) n/a
  • 512MB PC3200 DDR400 DIMM
 n/a
X9296A-Z 540-6836 [C] Qty 2 - 1GB DIMMs (2GB Memory Assembly) n/a
  • 1GB PC3200 DDR400 DIMM
 n/a
X7299A-Z [S] 540-6838 [C] Qty 2 - 4GB DDR400 DIMMs (8GB Memory Assembly) n/a
  • 4GB PC3200 DDR1-400 ECC registered DIMM
 n/a
X9297A-Z [S] 540-6837 [C] Qty 2 - 2GB DIMMs (4GB Memory Assembly) n/a
  • 2GB PC3200 DDR400 DIMM
 n/a
NOTE: DDR400/PC3200 DIMMs are not supported with Opteron C0 or CG stepping.
NOTE: PC3200/DDR400 DIMMs require V40z Sobek 3.0 Chassis 380-1379 and Chassis FRU 380-1378 or Sobek 2.0 Chassis 380-1207 and Chassis FRU 380-1206. They are not supported in the Sobek 1.0 Chassis.
NOTE: Mixing DDR333/PC2700 and DDR400/PC3200 DIMMs is not supported.
Miscellaneous
Option # Manufacturing
Part #		 Description Previous
Part #
X9293A-Z [S] 370-6917 Cable Management Arm n/a
Power
Option # Manufacturing
Part #		 Description Previous
Part #
X9290A-Z 300-1953 [C] 760 Watt AC Input Power Supply n/a
n/a 371-1465 [C] Power Distribution Board Tray Assembly n/a
Rack
Option # Manufacturing
Part #		 Description Previous
Part #
X3794A-Z 371-0891 30" Slide Rail Kit n/a
Removable Media
Option # Manufacturing
Part #		 Description Previous
Part #
X9289A-Z 371-1461 [C] Slimline 8x DVD-ROM/Floppy Drive n/a
SCSI
Option # Manufacturing
Part #		 Description Previous
Part #
SG-XPCIESAS-E-Z 375-3488 [C] 3Gb PCI-X SAS 8-Port Host Adapter n/a
X9265A-Z 371-1628 [C] Dual Ultra-320 SCSI/RAID n/a
X9884A-Z MegaRAID Dual Ultra-320 PCI-X w/Battery Backup & Cable
371-1631 [C] MegaRAID Dual Ultra-320 PCI-X n/a
371-1632 [C] Battery Backup Module n/a
540-6906 [C] MegaRAID Cable Kit n/a
  • 371-1788
  • SCSI MegaRAID Cable
 n/a
SG-XPCI8SAS-E-Z [S] 7050791 [C] 3Gb PCI-X SAS 8-Port Host Adapter 375-3488 [C]
SGXPCI1SCSILM320-Z [S] 375-3366 [C] PCI/PCI-X Single Ultra320 SCSI Adapter n/a
SGXPCI2SCSILM320-Z [S] 7050788 [C] PCI/PCI-X Dual Ultra320 SCSI Adapter 375-3365 5 [C]
X4422A-2 [S] 501-7490 [C] Dual GigabitEthernet / Dual SCSI PCI Adapter n/a
n/a 375-3365 4 [C] PCI/PCI-X Dual Ultra320 SCSI Adapter n/a
4 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
5 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50. See Problem article 1013105.1.
System Board
Option # Manufacturing
Part #		 Description Previous
Part #
X4054A-Z [S] 594-4240 S3.0 Daughterboard Assembly w/2× 2.8GHz CPU and VRMs E6 Stepping n/a
  • CPU Voltage Regulator Module, 80A, E1/E4/E6 Stepping
 n/a
  • Memory Voltage Regulator Module, 2.6V, DDR400/PC3200
 n/a
  • S3.0 CPU/Memory Daughterboard w/o CPUs & VRMs
 n/a
  • 2.8GHz Dual Core CPU, AMD Opteron 890 E6 Stepping, 95W
 n/a
X7245A-Z [S] 594-2943 S3.0 Daughterboard Assembly w/2× 2.8GHz CPU and VRMs E4 Stepping n/a
  • 2.8GHz CPU, AMD Opteron 854, E4 Stepping
 n/a
  • CPU Voltage Regulator Module, 80A, E1/E4/E6 Stepping
 n/a
  • Memory Voltage Regulator Module, 2.6V, DDR400/PC3200
 n/a
  • S3.0 CPU/Memory Daughterboard w/o CPUs & VRMs
 n/a
  • Daughterboard CPU Heatsink and Male Spring Screws
 n/a
  • Daughterboard CPU Heatsink and Female Spring Screws
 n/a
X7249A-Z [S] 594-2532 S3.0 Daughterboard Assembly w/2× 2.4GHz CPU and VRMs E6 Stepping n/a
  • 2.4GHz Dual Core CPU, AMD Opteron 880, E6 Stepping, 95W
 n/a
  • CPU Voltage Regulator Module, 80A, E1/E4/E6 Stepping
 n/a
  • Memory Voltage Regulator Module, 2.6V, DDR400/PC3200
 n/a
  • S3.0 CPU/Memory Daughterboard w/o CPUs & VRMs
 n/a
  • Daughterboard CPU Heatsink and Male Spring Screws
 n/a
  • Daughterboard CPU Heatsink and Female Spring Screws
 n/a
X8211A-Z [S] 594-2946 S3.0 Daughterboard Assembly w/2× Dual Core 2.6GHz CPU and VRMs E6 Stepping n/a
  • CPU Voltage Regulator Module, 80A, E1/E4/E6 Stepping
 n/a
  • Memory Voltage Regulator Module, 2.6V, DDR400/PC3200
 n/a
  • S3.0 CPU/Memory Daughterboard w/o CPUs & VRMs
 n/a
  • 2.6 GHz CPU, Opteron 885 E6 Stepping Dual Core, 95W
 n/a
  • Daughterboard CPU Heatsink and Male Spring Screws
 n/a
  • Daughterboard CPU Heatsink and Female Spring Screws
 n/a
X8213A-Z [S] 594-2944 S3.0 Daughterboard Assembly w/2× 3.0GHz CPU and VRMs E4 Stepping n/a
  • CPU Voltage Regulator Module, 80A, E1/E4/E6 Stepping
 n/a
  • Memory Voltage Regulator Module, 2.6V, DDR400/PC3200
 n/a
  • S3.0 CPU/Memory Daughterboard w/o CPUs & VRMs
 n/a
  • 3.0GHz CPU, AMD Opteron 856, E4 Stepping
 n/a
  • Daughterboard CPU Heatsink and Male Spring Screws
 n/a
  • Daughterboard CPU Heatsink and Female Spring Screws
 n/a
X9862A-Z [S] S3.0 Daughterboard Assembly w/2× 2.4GHz CPU and VRMs E4 Stepping
594-2941 S3.0 Daughterboard Assembly w/2× 2.4GHz CPU and VRMs E4 Stepping n/a
  • 2.4GHz CPU, AMD Opteron 850, E4 Stepping
 n/a
  • CPU Voltage Regulator Module, 80A, E1/E4/E6 Stepping
 n/a
  • Memory Voltage Regulator Module, 2.6V, DDR400/PC3200
 n/a
  • S3.0 CPU/Memory Daughterboard w/o CPUs & VRMs
 n/a
  • Daughterboard CPU Heatsink and Male Spring Screws
 n/a
  • Daughterboard CPU Heatsink and Female Spring Screws
 n/a
X9863A-Z [S] 594-2942 S3.0 Daughterboard Assembly w/2× 2.6GHz CPU and VRMs E4 Stepping n/a
  • 2.6GHz CPU, AMD Opteron 852, E4 Stepping
 n/a
  • CPU Voltage Regulator Module, 80A, E1/E4/E6 Stepping
 n/a
  • Memory Voltage Regulator Module, 2.6V, DDR400/PC3200
 n/a
  • S3.0 CPU/Memory Daughterboard w/o CPUs & VRMs
 n/a
  • Daughterboard CPU Heatsink and Male Spring Screws
 n/a
  • Daughterboard CPU Heatsink and Female Spring Screws
 n/a
6 The CPU Heatsink and Female Spring Screws are not available as FRUs, and are not included with the Opteron CRU.
7 The CPU Heatsink and Female Spring Screws are not available as FRUs, and are not included with the Opteron CRU.
8 The CPU Heatsink and Female Spring Screws are not available as FRUs, and are not included with the Opteron CRU.
9 The CPU Heatsink and Female Spring Screws are not available as FRUs, and are not included with the Opteron CRU.
10 The CPU Heatsink and Female Spring Screws are not available as FRUs, and are not included with the Opteron CRU.
11 The CPU Heatsink and Female Spring Screws are not available as FRUs, and are not included with the Opteron CRU.
NOTE: Mixing Opteron processor steppings on the V40z Daughterboard is not supported.
NOTE: E1/E4/E6 requires V40z Chassis 380-1379, Chassis FRU 380-1378
NOTE: Mixing Opteron processor steppings in the V40z is not supported.
Whole System FRU
Option # Manufacturing
Part #		 Description Previous
Part #
n/a 380-1378 [F] Sobek 3.0 Assembly/FRU w/o CPU/Disk/Fan/Memory n/a
  • 1-Slot PCI Riser Board
 n/a
  • 371-1467 [C]
  • Rear Fan Cage Assembly
 n/a
  • 371-1468 [C]
  • Front Fan Cage Assembly
 n/a
  • 371-1472 [C]
  • Cable Kit/FRU
 n/a
    • n/a
    • System Board to SCSI Backplane Data Cable
 n/a
    • n/a
    • System Board to Operator Panel USB Cable
 n/a
    • n/a
    • System Board to Operator Panel Cable
 n/a
    • n/a
    • System Board to PCI Hot Plug PCB Cable
 n/a
    • n/a
    • System Board to DVD/Floppy Cable
 n/a
    • n/a
    • System Board to SCSI Backplane Power Cable
 n/a
  • n/a
  • PDB Tray with Power Supply Filler w/o PDB
 n/a
  • 371-1469 [C]
  • Operator Panel and LCD Assembly
 n/a
  • 371-1470 [C]
  • 6-Slot SCSI Disk Backplane
 n/a
  • n/a
  • V40z Front Bezel
 n/a
  • n/a
  • PCI Hot Plug PCB
 n/a
  • n/a
  • PCI Hot Plug PCB Bracket and Latches
 n/a
  • n/a
  • PCI Slot 2/3 Retaining Bracket
 n/a
  • n/a
  • PCI Slot 4/5/6/7 Air Baffle
 n/a
  • Sobek 3.0 Motherboard w/ BIOS Firmware
 n/a
  • n/a
  • Chassis and Top Cover
 n/a
  • n/a
  • Long PCI Support Bracket
 n/a
  • n/a
  • Front Fan Tray Air Baffle
 n/a
  • n/a
  • Fan 12 Air Baffle
 n/a
  • n/a
  • V40z PCI Filler Panel
 n/a
  • n/a
  • V40z Disk Slot Filler Panel/Disk Drive Mounting Bracket
 n/a
NOTE: See User's Guide for list of all parts that need to be transferred when replacing a Whole System FRU or 'Super FRU'.

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

Exploded View

Sun Fire V40z (post July 2006) Exploded View
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown

Code Manufacturing Part# Description
1 380-1379 Sobek 3.0 Chassis Assembly w/o Disk or Memory or Opteron CPU
  • 760 Watt AC Input Power Supply
  • Power Distribution Board Tray Assembly
  • 371-1466 [C]
  • System Cooling Fan
  • 380-1378 [F]
  • Sobek 3.0 Assembly/FRU w/o CPU/Disk/Fan/Memory
    • 1-Slot PCI Riser Board
    • 371-1467 [C]
    • Rear Fan Cage Assembly
    • 371-1468 [C]
    • Front Fan Cage Assembly
-
    • 371-1472 [C]
    • Cable Kit/FRU
3
      • n/a
      • System Board to SCSI Backplane Data Cable
14
      • n/a
      • System Board to Operator Panel USB Cable
14
      • n/a
      • System Board to Operator Panel Cable
NS
      • n/a
      • System Board to PCI Hot Plug PCB Cable
NS
      • n/a
      • System Board to DVD/Floppy Cable
NS
      • n/a
      • System Board to SCSI Backplane Power Cable
3
    • n/a
    • PDB Tray with Power Supply Filler w/o PDB
8
    • 371-1469 [C]
    • Operator Panel and LCD Assembly
    • 371-1470 [C]
    • 6-Slot SCSI Disk Backplane
6
    • n/a
    • V40z Front Bezel
15
    • n/a
    • PCI Hot Plug PCB
15
    • n/a
    • PCI Hot Plug PCB Bracket and Latches
16
    • n/a
    • PCI Slot 2/3 Retaining Bracket
17
    • n/a
    • PCI Slot 4/5/6/7 Air Baffle
NS
    • Sobek 3.0 Motherboard w/ BIOS Firmware
NS
    • n/a
    • Chassis and Top Cover
NS
    • n/a
    • Long PCI Support Bracket
NS
    • n/a
    • Front Fan Tray Air Baffle
NS
    • n/a
    • Fan 12 Air Baffle
NS
    • n/a
    • V40z PCI Filler Panel
NS
    • n/a
    • V40z Disk Slot Filler Panel/Disk Drive Mounting Bracket
3 n/a PDB Tray with Power Supply Filler w/o PDB
6 n/a V40z Front Bezel
15 n/a PCI Hot Plug PCB Bracket and Latches
15 n/a PCI Hot Plug PCB
16 n/a PCI Slot 2/3 Retaining Bracket
17 n/a PCI Slot 4/5/6/7 Air Baffle
NS n/a System Board CPU Heatsink Bracket/Screw/Spring
NS n/a Fan 12 Air Baffle
NS n/a Front Fan Tray Air Baffle
NS n/a Long PCI Support Bracket
NS n/a Chassis and Top Cover
NS n/a V40z Disk Slot Filler Panel/Disk Drive Mounting Bracket
NS n/a V40z PCI Filler Panel
  Copyright © 2018 Oracle and/or its affiliates.  All rights reserved.
 Feedback
