Sun Fire V40z

Daughter Board

370-6927
Sobek 1.0 Newisys S00403 A57A-AA Chassis FRU 380-1010

LEDs

LOCATION	COLOR	STATE	DESCRIPTION
LD8	Amber	Fault	CPU3 Status
LD10	Amber	Fault	CPU3 Memory VRM Status
LD16	Amber	Fault	CPU2 Status
LD17	Amber	Fault	CPU2 CPU VRM Status
LD18	Amber	Fault	CPU2 Memory VRM Status
LD20-23	Amber	Fault	CPU2 DIMM 0-3 Status

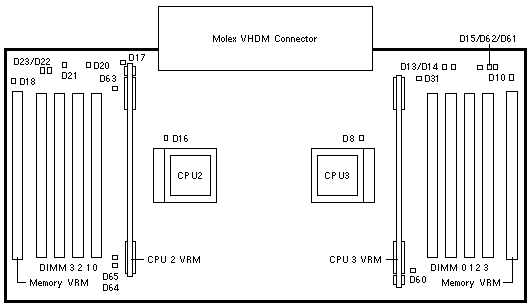

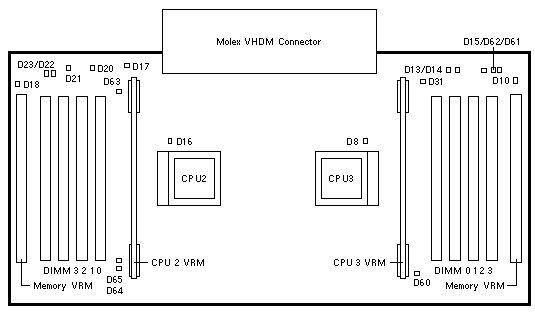

Notes: LED locations are abbreviated D on the system board illustration. No information is available for other LED locations.

Sun Fire V40z Codename: Stinger4P

Notes

1. The CPU/Memory Expansion (Daughter) Board is a Field Replaceable Unit.
2. Disconnect AC Power before removing or replacing the CPU/Memory Expansion Board.
3. Daughter Boards ship without installed memory. A minimum of one memory option (two DIMMs) is required.
