SPARC T7-2 - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
n/a
7097099
32-Core 4.133GHz CPU Mezzanine
n/a
n/a
7310197
32-Core 4.133GHz CPU Mezzanine
n/a
n/a
7315604
32-Core 4.133GHz CPU Mezzanine
n/a
Cables
Option #
Manufacturing
Description
Previous
7102870 Buy
7039999 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 20M
n/a
7102871 Buy
7040001 [C]
MPO to MPO High Bandwidth QSFP Optical Cable, 50M
n/a
7105206 Buy
7063852 [C]
InfiniBand Cable, QSFP, Optical, MPO to MPO, 100M
n/a
7110923 Buy
7098473 [F]
38-Pin Mini SAS-3 Cable, SFF-8643 to SFF-8643, 460mm
n/a
7114369 Buy
7308821 [C]
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 10M
n/a
7114370 Buy
7308822 [C]
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 20M
n/a
7114371 Buy
7308823 [C]
MPO/MTP to 2x LC Duplex QSFP Splitter Cable, 50M
n/a
X2121A-1M-N Buy
530-4444 [C]
10Gbps QSFP to QSFP Cable, 1m
n/a
X2121A-3M-N Buy
530-4445 [C]
10Gbps QSFP to QSFP Cable, 3m
n/a
X2121A-5M-N Buy
530-4446 [C]
10Gbps QSFP to QSFP Cable, 5m
n/a
X2125A-1M-N Buy
530-4450 [C]
QSFP to 4× SFP+ Splitter Cable, 1m
n/a
X2125A-3M-N Buy
530-4451 [C]
QSFP to 4× SFP+ Splitter Cable, 3m
n/a
X2125A-5M-N Buy
530-4452 [C]
QSFP to 4× SFP+ Splitter Cable, 5m
n/a
X2130A-3M-N Buy
530-4442 [C]
10Gbps SFP+ TwinX Cable, 3m
n/a
X2130A-5M-N Buy
530-4443 [C]
10Gbps SFP+ TwinX Cable, 5m
n/a
X9238-1-A-N Buy
180-2085 [C]
IEC 320 Sheet E to IEC 320 C13 Power Jumper Cord 10A 90° 2.5M
n/a
n/a
530-3100
RJ45F to DB9F Adapter
n/a
n/a
7314624 [F]
Cable Kit SKU
n/a
System Board to Disk Backplane Signal Cable n/a
36-Pin Mini SAS-3 Cable, SFF-8643 to SFF-8643, 175mm n/a
Fan Board to System Board Signal Cable n/a
Fan Board to System Board Power Cable n/a
System Board to PDB Cable n/a
System Board to Disk Backplane Power Cable n/a
n/a
7346226 [F]
Cable Kit SKU
n/a
Fan Board to System Board Signal Cable n/a
Fan Board to System Board Power Cable n/a
System Board to PDB Cable n/a
System Board to Disk Backplane Power Cable n/a
System Board to Disk Backplane Signal Cable n/a
36-Pin Mini SAS-3 Cable, SFF-8643 to SFF-8643, 175mm n/a
Chassis
Option #
Manufacturing
Description
Previous
n/a
7074704
Chassis Subassembly
n/a
n/a
n/a
n/a
Power Distribution Board Cover n/a
n/a
n/a
n/a
n/a
n/a
Power Supply Backplane Assembly n/a
n/a
Power Distribution Board / Power Supply Backplane n/a
Power Supply Chassis Cable Cover n/a
AC Input Line Filter with Cable n/a
n/a
7303163
G3N Chassis Subassembly
n/a
n/a
n/a
Power Distribution Board Cover n/a
n/a
n/a
n/a
n/a
n/a
n/a
n/a
Fan Board with USB and VGA n/a
Power Distribution Assembly n/a
n/a
Power Distribution Board / Power Supply Backplane n/a
Power Supply Chassis Cable Cover n/a
AC Input Line Filter with Cable n/a
Communication
Option #
Manufacturing
Description
Previous
7104074 Buy
7092757
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
7046442
[C]
n/a
7046442
[C]
Dual 40Gb/Sec (4x) QDR InfiniBand Host Channel Adapter Module M3
n/a
Disk Backplane
Option #
Manufacturing
Description
Previous
n/a
7096096 [F]
6-Slot NVMe Backplane
n/a
Disks
Option #
Manufacturing
Description
Previous
7110933 Buy
7094132 [C]
400GB Solid State SAS Drive Assembly
n/a
400GB SAS Solid State Drive [HSCAC2DA4SUN400G] n/a
n/a
7111103 Buy
7093015 [C]
600GB - 10000 RPM SAS Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101860CSS200 [H101860SFSUN600G] (600.0GB - 10000 RPM SAS Disk) n/a
n/a
7111108 Buy
7093037 [C]
1.2TB - 10000 RPM SAS SFF Disk Assembly w 1 bracket and 1 of the following disks:
n/a
Hitachi HUC101812CSS200 [H101812SFSUN1.2T] (1.2TB - 10000 RPM - SAS DISK) n/a
n/a
7115079 Buy
7330686 [C]
800GB SAS3 Solid State Drive Assembly
n/a
HGST HUSMM3280ASS20 [HBCAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk) n/a
n/a
7115457
7340035 [C]
6.4TB NVMe Solid State Drive Assembly
n/a
Intel SSDPE2KE064T7 [ICDPC2DD2ORA6.4T] (6.4TB - 2.5" Solid State - NVMe Disk, x4 PCI Express Gen 3) n/a
n/a
7118670
7350766 [C]
1.2TB - 10000 RPM SAS Disk Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUC101812CSS204 [H1018124FSUN1.2T] (1.2TB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below) n/a
n/a
7118672
7352257 [C]
600GB - 10000 RPM SAS Disk Drive Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUC101860CSS204 [H1018604FSUN600G] (600GB - 10000 RPM SAS Disk without Encryption) (EAEU part - see note below) n/a
n/a
7118709
7350749 [C]
800GB SAS3 Solid State Disk Assembly without Encryption (EAEU part - see note below)
n/a
HGST HUSMM3280ASS204 [HBSAC2DH4SUN800G] (800GB - 2.5" Solid State - SAS3 Disk without Encryption) (EAEU part - see note below) n/a
n/a
7110927
[S]
7302552 [C]
1.6TB Solid State NVMe Drive Assembly
n/a
Intel SSDPE2ME016T4SP [SSDPE2ME016T4S] (1.6TB - 2.5" eMLC NVMe Solid State Drive) n/a
n/a
7113805
[S]
7317908 [C]
3.2TB NVMe Solid State Drive Assembly
n/a
Samsung MZWLK3T2HCJL-000U3 [MS1PC2DD3ORA3.2T] (3.2TB - 2.5" Solid State - NVMe Disk) n/a
n/a
Ethernet
Option #
Manufacturing
Description
Previous
7100477 Buy
7070195
[C]
Quad Port GbE PCI Express 2.0 Low Profile Adapter, UTP
n/a
7100481 Buy
7070202
[C]
Dual Port GbE PCI Express 2.0 Low Profile Adapter, MMF
n/a
7100488 Buy
7070006
[C]
Dual 10-Gigabit Base-T PCI Express Gen2
n/a
7114094 Buy
7305556
[C]
40GbE Long Wave QSFP+ Transceiver
n/a
7114134 Buy
7319817
[C]
Quad 10-Gigabit or Dual 40-Gigabit Ethernet QSFP+
n/a
X1109A-Z Buy
7051223
[C]
Dual 10-Gigabit PCI Express Ethernet SFP+ LP
n/a
X2124A-N Buy
7326504
[C]
10Gbps QDR InfiniBand/40Gbps Ethernet QSFP Transceiver
135-1204
[C]
X2129A-N Buy
530-4449
[C]
10Gb/Sec Short Wave SFP+ Transceiver
n/a
X5562A-Z Buy
135-1205
[C]
10Gb/Sec Long Wave SFP+ Transceiver
n/a
n/a
135-1204
[C]
10Gb/Sec QDR InfiniBand / 40Gb/Sec Ethernet QSFP Transceiver
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
541-3539 [C]
92mm Fan Module
n/a
n/a
7093647
Grey Plastic Air Divider w/ Fault Remind Button
n/a
n/a
7095079 [F]
Fan Cage Assembly
n/a
n/a
Fan Board with USB and VGA n/a
n/a
7303158 [F]
Fan Cage Assembly
n/a
n/a
Fan Board with USB and VGA n/a
Fibre Channel
Option #
Manufacturing
Description
Previous
7101674 Buy
7023303
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, QLogic
n/a
7101676 Buy
7023325
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101678 Buy
7023315
[C]
Pair of 10Gbps Short Wave SFP+
n/a
10Gb/Sec Short Wave SFP+ Transceiver, QLogic n/a
7101684 Buy
7023036
[C]
Dual 16Gigabit/Sec Fibre Channel / 10Gbps FCoE Host Adapter, Emulex
n/a
7101686 Buy
7023059
[C]
Pair of 16Gbps Short Wave SFP+
n/a
16Gb/Sec Short Wave SFP+ Transceiver, Emulex n/a
SG-XPCIE2FC-EM8-N
[S]
7053434
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter, Emulex
n/a
SG-XPCIE2FC-QF8-N
[S]
371-4325
[C]
8Gigabit/Sec PCI Express Dual FC Host Adapter
n/a
I/O
Option #
Manufacturing
Description
Previous
n/a
7064634 [C]
8-Port PCI Express Switch
n/a
PCI Express Switch w/o Bracket or Heatsink n/a
Memory
Option #
Manufacturing
Description
Previous
7113004 Buy
7317930
[C]
32GB Registered DDR4-2400 DIMM (runs at 2133MHz)
n/a
7114652 Buy
7326376
[C]
64GB Load Reduced DDR4-2400 DIMM (runs at 2133MHz)
n/a
7119480
7358668
[C]
16GB DDR4-2666 Registered DIMM (runs at 2133MHz)
n/a
7107207
[S]
7082850
[C]
16GB Registered DDR4-2133/2400 DIMM
n/a
7107209
[S]
7082851
[C]
32GB Load Reduced DDR4-2133 DIMM
n/a
n/a
7074618
[C]
2GB Embedded USB
n/a
n/a
7092877
USB T10 Torx Thumbscrew, M3 0.5 x 6mm
n/a
n/a
7319165 [C]
Memory Riser Assembly
n/a
n/a
n/a
Power
Option #
Manufacturing
Description
Previous
n/a
7049297
[C]
Type A263 2000W AC Input Power Supply
n/a
n/a
7300803
[F]
Power Supply Backplane Assembly
n/a
n/a
Power Distribution Board / Power Supply Backplane n/a
n/a
7303476
[F]
Power Distribution Assembly
n/a
n/a
Power Distribution Board / Power Supply Backplane n/a
n/a
7317314
3
[F]
Power Supply Backplane Assembly
n/a
n/a
Power Distribution Board / Power Supply Backplane n/a
High Potential (Hipot) Test Passed Label n/a
n/a
7317843
[C]
Type A263 2000W AC Input Power Supply - India ISI Mark
7049297
[C]
n/a
7350779
[C]
Type A263 2000W AC Input Power Supply - Taiwan RoHS
7317843
[C]
+
3 Used as FRU 7300813 under D0003795, D0003832, and D0003880.
Rack
Option #
Manufacturing
Description
Previous
XSR-JUMP-1MC13-N Buy
7015399 [C]
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 1M
n/a
XSR-JUMP-2MC13-N Buy
7015400 [C]
10A/250V 90° IEC 320 Sheet E to IEC 320 C13 Cord, 2M
n/a
n/a
371-4791 [C] Buy
Tool-less Slide Rail Rack Mount Kit
n/a
n/a
371-4812 [C] Buy
Cable Management Arm
n/a
Removable Media
Option #
Manufacturing
Description
Previous
n/a
7079028
DVD Bezel
n/a
n/a
7089203
DVD Liner
n/a
n/a
7302240
[C]
Tray-Load SATA DVD-Writer/CD-Writer
n/a
8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen5) n/a
n/a
n/a
n/a
n/a
7314403
[C]
Tray-Load DVD Assembly
n/a
n/a
8x Tray-Load DVD-ROM/24x CD-ROM Writer (Gen6) n/a
n/a
n/a
8x Tray-Load DVD-ROM/24-x CD-ROM Writer (Gen7) n/a
SCSI
Option #
Manufacturing
Description
Previous
7110119 Buy
7085208
[C]
8-Port 12Gbps SAS-3 HBA (External)
n/a
7113826 Buy
7317693
[C]
3.2TB Flash Accelerator F320 NVMe Card
n/a
7115455
7335943
[C]
6.4TB Flash Accelerator F640 NVMe Card
n/a
7110865
[S]
7307468
[C]
1.6TB Flash Accelerator F160 NVMe Card w/ LP Bracket (B1 Silicon)
n/a
System Board
Option #
Manufacturing
Description
Previous
n/a
7318240 [F]
System Board Assembly
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7318270 [F]
System Board Assembly
7318240 [F]
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7342212 4
[F]
System Board Assembly
7315607 [F]
[S]
+
7318270 [F]
[F]
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7343431 5
[F]
System Board Assembly
7315607 [F]
[S]
+
7318270 [F]
[F]
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7354300 [F]
System Board Assembly
n/a
n/a
n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
n/a
7315607 [F]
[S]
System Board Assembly
7318270 [F]
+
7318240 [F]
n/a
n/a
32-Core 4.133GHz CPU Mezzanine n/a
n/a
3V Lithium Coin Cell Battery
n/a
n/a
n/a
System Board to Rear I/O Board Signal Cable n/a
4 7342212 is a reworked 7315607 Rev 02, 03, 04 per E0032642 and Purge GSAP 6884.5 7343431 is a reworked 7315607 Rev 01 per E0032969 and Purge GSAP 6884.
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part

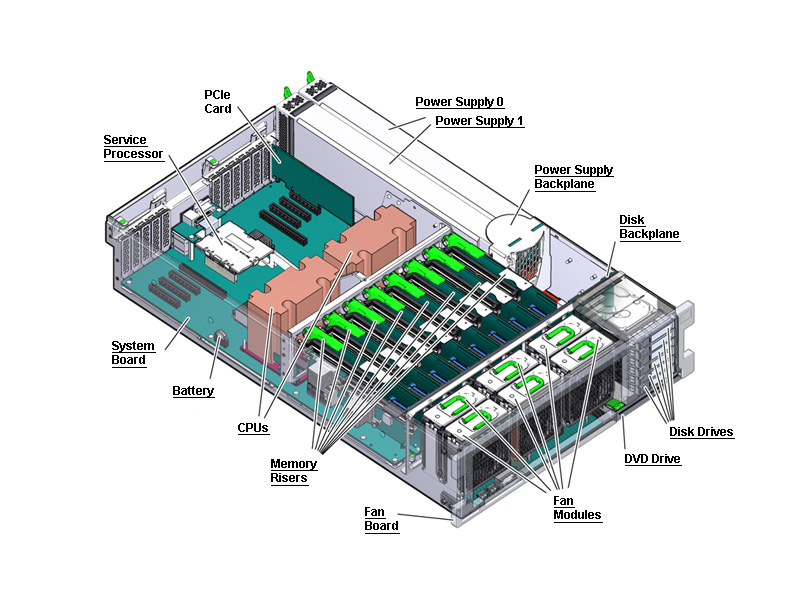

Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description
NS
150-4065
Interlock Switch Magnet
NS
341-2610
PCI Filler Panel
NS
341-6188
Power Supply Chassis Cable Cover
NS
530-3510
Interlock Switch Cable
NS
530-4287
Fan Board to System Board Signal Cable
NS
530-4288
Fan Board to System Board Power Cable
NS
530-4289
System Board to PDB Cable
NS
530-4291
System Board to Disk Backplane Power Cable
NS
530-4348
System Board to Rear I/O Board Signal Cable
NS
530-4356
AC Input Line Filter with Cable
NS
541-2629
2.5" Disk Drive Filler Panel
