Netra 1290 - Full Components List

Backplane/Centerplane Card/Reader Communication Disks Ethernet Fibre Channel I/O Memory Miscellaneous Power Removable Media SCSI System Board Exploded View Wiring Diagram	Table Legend [F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

Backplane/Centerplane
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-1382 [F]	Baseplane Assembly	n/a
	501-7327	3-Slot Baseplane	n/a
	501-7331	Fan Tray Mating Board	n/a

Card/Reader
Option #	Manufacturing Part #	Description	Previous Part #
n/a	370-5155 [F]	System Configuration Card	n/a
n/a	371-0795 [F]	System Configuration Card with 10 MAC Addresses	n/a
n/a	371-3551 [F]	System Configuration Card with 10 MAC Addresses, Polycarbonate	n/a
n/a	541-1386 [F]	System Configuration Card Reader Assembly	n/a
	341-2589	SCC Reader EMI Cover	n/a
	501-7332	System Configuration Card Reader	n/a
	530-3570	Non-removable SCCR Cable	n/a

Communication
Option #	Manufacturing Part #	Description	Previous Part #
X2156A-2 [S]	375-3420 [F]	Serial Asynchronous Interface PCI (SAI/P) 3.0	n/a

Disks
Option #	Manufacturing Part #	Description	Previous Part #
XRA-SC1NB-300G15K [S]	540-7154 [C]	300GB - 15000 RPM, Disk Assembly with 1 bracket, 1 plate, and 1 of the following disks	n/a
	341-1986	Plate	n/a
	390-0329	Seagate ST3300655LC [ST330055LSUN300G] (300GB - 15000 RPM - SCSI Disk)	n/a
	390-0362	Hitachi HUS153030VL3800 [HUS15303BSUN300G] (300GB - 15000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a
n/a	540-6607 [C]	146.8GB - 15000 RPM, Disk Assembly with 1 bracket, 1 of the following plates, and 1 of the following disks	n/a
	341-1986	Plate	n/a
	390-0205	Seagate ST3146854LC [ST314685LSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0207	Hitachi HUS151414VL3800 [HUS15143ASUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0261	Fujitsu MAX3147NC [MAX3147NCSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0327	Seagate ST3146855LC [ST314655LSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	390-0361	Hitachi HUS153014VL3800 [HUS15143BSUN146G] (146GB - 15000 RPM - SCSI Disk)	n/a
	540-3024	1" SPUD Bracket	n/a

Ethernet
Option #	Manufacturing Part #	Description	Previous Part #
X4150A-2 [S]	501-7415 [F]	GigaSwift Ethernet UTP (GCS)	n/a
X4151A-2 [S]	501-7430 [F]	GigaSwift Ethernet MMF (GFS)	n/a
X4445A [S]	501-6738 [F]	Quad GigaSwift PCI-X Ethernet (QGE-X)	n/a

Fibre Channel
Option #	Manufacturing Part #	Description	Previous Part #
SG-XPCI1FC-EM2 [S]	375-3304 [F]	2Gb PCI-X Single FC Host Adapter	n/a
SG-XPCI2FC-EM2 [S]	375-3305 [F]	2Gb PCI-X Dual FC Host Adapter	n/a
SG-XPCI2FC-QF2-Z [S]	375-3363 [F]	2Gb PCI/PCI-X Dual FC Host Adapter	n/a
	240-4839	Low Profile Bracket	n/a
SG-XPCI2FC-QF4 [S]	7060890 [F]	4Gb PCI-X Dual FC Host Adapter	375-3294 [F]
n/a	375-3294 [F]	4Gb PCI-X Dual FC Host Adapter	n/a

I/O
Option #	Manufacturing Part #	Description	Previous Part #
n/a	541-1020 [F]	I/O Board and System Controller (IB_SSC)	n/a
	540-6818 [F]	I/O Fan Assembly	n/a

Memory
Option #	Manufacturing Part #	Description	Previous Part #
n/a	540-6489 [F]	2GB SDRAM DIMM Assembly	n/a
	501-6242	2GB SDRAM DIMM	n/a
n/a	F511-1030 1 [F]	Package of 25 × 512MB SDRAM DIMMs [SKU]	n/a
	501-7385 [F]	512MB SDRAM DIMM	n/a
n/a	F511-1031 2 [F]	Package of 25 × 1GB SDRAM DIMMs [SKU]	n/a
	501-7386 [F]	1GB SDRAM DIMM	n/a

1 See FAB article1000920.1 (formerly 201233) for details. 2 See FAB article1000920.1 (formerly 201233) for details.

Miscellaneous
Option #	Manufacturing Part #	Description	Previous Part #
X1209A-Z [S]	370-5410	Cable Management Arm (CMA-Lite)	n/a
X6808A-Z [S]	370-5966	23" 2-post Hendry Rack Mount Kit	n/a
n/a	541-1384 [F]	Level 2 Repeater Board Assembly	n/a
	501-7335	L2 Repeater Board	n/a

Power
Option #	Manufacturing Part #	Description	Previous Part #
n/a	300-1833 3 [F]	Type A209N 1500/1970 Watt AC Input Power Supply	n/a
n/a	300-1883 [F]	Type D142 1500 Watt DC Input Power Supply	n/a
n/a	300-1885 [F]	DC Input Connector Assembly	n/a
n/a	371-0129 [F]	DC Power Distribution Board	n/a
n/a	300-1882 [F] [S]	Type A166 1500 Watt AC Input Power Supply	n/a

3 Required for 1.8GHz and 1.95GHz US IV+ Uniboards

Removable Media
Option #	Manufacturing Part #	Description	Previous Part #
SG-XTAPDAT72-3F-2 [S]	380-1328 [F]	DAT 72 Internal Tape Drive, 3.5 inch/68 pin SCSI	n/a
n/a	540-6641	DVD-ROM Assembly	n/a
	340-7441	Retaining Clip	n/a
	341-2730 4	Retaining Clip	n/a
	390-0345 [F]	Slimline 8X DVD-Writer / 24X CD-Writer	n/a
n/a	F390-0406 [F]	Slimline 8X DVD-Writer / 24X CD-Writer	n/a
	390-0406 [F]	Slimline 8X DVD-Writer / 24X CD-Writer	n/a

4 Replaced 340-7441 in assembly 540-6641 in September 2006. (WO_33648)

SCSI
Option #	Manufacturing Part #	Description	Previous Part #
X4422A-2 [S]	501-7490 [F]	Dual GigabitEthernet / Dual SCSI PCI Adapter	n/a

System Board
Option #	Manufacturing Part #	Description	Previous Part #
X8220A-Z [S]	540-6984	CPU/Memory UniBoard w/ 4× US IV+ 1.5GHz, 16GB	n/a
X8221A-Z [S]	540-6593	CPU/Memory UniBoard w/ 4× US IV+ 1.5GHz, 32GB	n/a
X8222A-Z [S]	540-7098	CPU/Memory UniBoard w/ 4× US IV+ 1.5GHz, 64GB	n/a
n/a	540-7048 [F]	CPU/Memory UniBoard w/ 4× US IV+ 1.5GHz, 0MB	n/a

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part

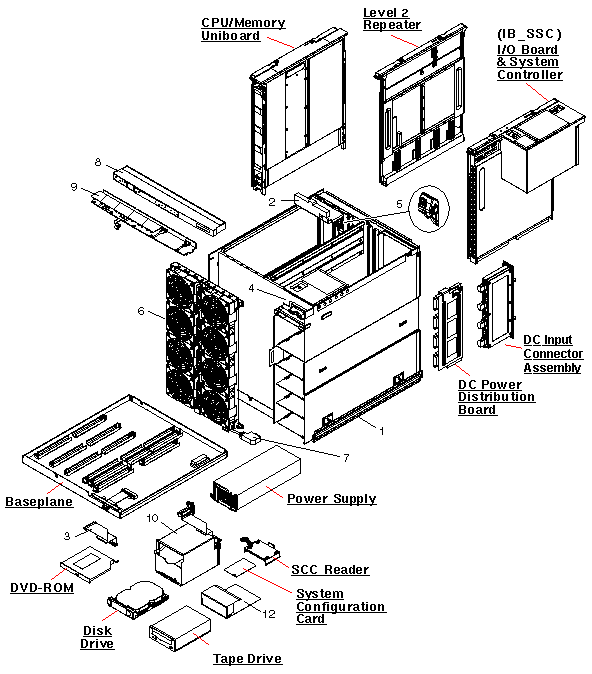

Exploded View

Table Legend
[F] = Field Replaceable Unit (FRU) [C] = Customer Replaceable Unit (CRU) [A] = Alternate, can be used in system; wasn't used during production [S] = Supported, but can no longer be ordered with this system [N] = No longer supported for this system Price = Price this Part NS = Not Shown

Code	Manufacturing Part#	Description
NS	594-3436	CPU/Memory Filler Panel (Option X1092A-Z)
-	540-6804	CPU/Memory Filler Panel (Option X1092A-Z)
12	540-6806	Tape Drive Filler Panel (Option X1093A-Z)
NS	594-3432	Air Filter (option X6806A-Z)
-	540-5412	Right Door Air Filter
-	540-5413	Left Door Air Filter
1	540-6537	DC Chassis Assembly
1	540-6814	Chassis Sub Assembly
1	541-1825	Chassis
4	330-3278	System Configuration Card Inlet
5	F560-2827 [S]	Clutch Kit [SKU]
-	370-4856	CPU/Memory Slot Clutched Pinion
-	370-4857	L2 Repeater Slot Clutched Pinion
-	370-4858	I/O System Controller Slot Clutched Pinion
5	F560-2962	CPU Clutch Kit (Qty 3)
5	560-2962 [F]	CPU Clutch Kit (Qty 3)
-	370-4856	CPU/Memory Slot Clutched Pinion
2	371-1639 [F]	CD/DVD Paddleboard and Cable
3	530-3699	DVD Data/Power Cable
6	540-6563 [F]	8-Fan Tray Assembly
-	501-7303	Fan Control Board
-	530-3476	Fan Tray Cable Assembly
-	540-6527 [F]	Single Fan Assembly
-	540-6564	8-Fan Tray Subassembly
1	596-5585	AC Chassis Assembly
1	540-6640	AC Chassis Sub Assembly
	300-1882 [F] [S]	Type A166 1500 Watt AC Input Power Supply
	371-0129 [F]	DC Power Distribution Board
	371-0795 [F]	System Configuration Card with 10 MAC Addresses
	541-1020 [F]	I/O Board and System Controller (IB_SSC)
	540-6818 [F]	I/O Fan Assembly
9	540-6565	Lower Plastic with Board and Cable
-	501-7330	LED/Switch Board
-	530-3696	Front Bezel to Fan Tray Cable
	541-1382 [F]	Baseplane Assembly
	501-7327	3-Slot Baseplane
	501-7331	Fan Tray Mating Board
	541-1384 [F]	Level 2 Repeater Board Assembly
	501-7335	L2 Repeater Board
	541-1386 [F]	System Configuration Card Reader Assembly
	341-2589	SCC Reader EMI Cover
	501-7332	System Configuration Card Reader
NS	530-3570	Non-removable SCCR Cable
-	330-4328	Foam Gasket
1	540-6814	Chassis Sub Assembly
1	541-1825	Chassis
4	330-3278	System Configuration Card Inlet
5	F560-2827 [S]	Clutch Kit [SKU]
-	370-4856	CPU/Memory Slot Clutched Pinion
-	370-4857	L2 Repeater Slot Clutched Pinion
-	370-4858	I/O System Controller Slot Clutched Pinion
5	F560-2962	CPU Clutch Kit (Qty 3)
5	560-2962 [F]	CPU Clutch Kit (Qty 3)
-	370-4856	CPU/Memory Slot Clutched Pinion
3	530-3699	DVD Data/Power Cable
6	540-6563 [F]	8-Fan Tray Assembly
-	501-7303	Fan Control Board
-	530-3476	Fan Tray Cable Assembly
-	540-6527 [F]	Single Fan Assembly
-	540-6564	8-Fan Tray Subassembly
8	540-6821	Upper Plastic
10	541-1381 [F]	Disk Drive/Removable Media Bay Assy/FRU
-	501-7328	SCSI Disk Backplane
-	530-3571	Non-removable SCSI Data Cable
-	530-3697	DDS Power Cable
-	530-3698	SCSI Disk Power Cable
-	540-6884	SCSI LED Assembly
-	501-7333	SCSI LED Board
NS	300-1886 [F]	AC Input Connector Assembly
NS	371-1443	PCI Filler Panel
8/9	F540-6565 [F]	Front Bezel FRU
8	540-6821	Upper Plastic
9	540-6565	Lower Plastic with Board and Cable
-	501-7330	LED/Switch Board
-	530-3696	Front Bezel to Fan Tray Cable
NS	130-5146	YA6-CL1-90 DC Power Connector Lug
NS	130-5147	YAV6C-L2TC10-FX-90 DC Ground Connector Lug
NS	263-2246	Netra 1290 Nameplate
NS	530-3570	Non-removable SCCR Cable
NS	560-2707	CMA-800 Cable Management Arm T-Bracket Kit
-	370-5695	Left T-Bracket
-	370-5696	Right T-Bracket
NS	560-2708	CMA-800 Cable Management Arm Kit
-	370-5411	Lower Arm
-	370-5698	Upper Arm
NS	560-2709	Rack Slide Kit
-	370-5408 [F]	Inner/Outer Rack Slide (×2)
NS	560-2859	Left Door and Hinge Assembly
-	541-1043	Left door Assembly
-	540-5413	Left Door Air Filter
-	541-0628	Left Door
NS	560-2860	Right Door and Hinge Assembly
-	541-0649	Right Door Assembly
-	540-5412	Right Door Air Filter
-	541-0630	Right door
NS	F330-4328 [F]	Removable Media Assembly Foam Gasket
-	330-4328	Foam Gasket
NS	F540-7019 [F]	Right Door and Hinge [SKU]
NS	F560-2714 [F]	CMA-800 Cable Management [SKU]
-	370-5411	Lower Arm
-	370-5695	Left T-Bracket
-	370-5696	Right T-Bracket
-	370-5697	Velcro Strip Kit
-	370-5698	Upper Arm
NS	F560-2826 5 [F]	Cable Kit [SKU]
-	530-3476	Fan Tray Cable Assembly
-	530-3697	DDS Power Cable
-	530-3698	SCSI Disk Power Cable
3	530-3699	DVD Data/Power Cable
7	530-3573	Fan Tray to Baseplane Cable

5 In June 2007, 530-3573 became a manufacturing substitute for the new primary part 530-3476. (WO_36894)
