Sun Ultra 40 M2 Workstation - Full Components List
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Batteries
Option #
Manufacturing
Description
Previous
n/a
371-2210
[C] Buy
3V Lithium Coin Cell Battery
n/a
CPU Module
Option #
Manufacturing
Description
Previous
X4066A-Z
[S]
594-4949
3.0GHz, Dual Core, Socket 1207, 95W AMD Opteron 2222
n/a
n/a
3.0 GHz CPU, Opteron 2222 Dual Core, F3 Stepping, 95W n/a
X4093A-Z
[S]
310-0108 [C]
CPU Fan/Heatsink Kit
n/a
371-2503
[F]
3.0GHz AMD Dual Core Opteron 2222SE, F3 Stepping, 120W
n/a
X4189A-Z
[S]
594-4950
3.2GHz, Dual Core, Socket 1207, 120W AMD Opteron 2224 SE Option
n/a
n/a
3.2 GHz CPU, Opteron 2224SE Dual Core, F3 Stepping, 120W
n/a
X4190A-Z
[S]
594-4041
2.8GHz Dual Core Opteron 2220
n/a
n/a
2.8GHz AMD Dual Core Opteron 2220SE, F2 Stepping, 120W n/a
X4191A-Z
[S]
594-3931
1.8GHz Dual Core Opteron 2210
n/a
n/a
1.8GHz AMD Dual Core Opteron 2210, F3 Stepping, 95W
371-1911
[F]
X4192A-Z
[S]
594-3932
2.2GHz Dual Core Opteron 2214
n/a
n/a
2.2GHz AMD Dual Core Opteron 2214, F3 Stepping, 95W
371-1981
[F]
X4193A-Z
[S]
594-3933
2.6GHz Dual Core Opteron 2218
n/a
n/a
2.6 GHz CPU, Opteron 2218 Dual Core, F3 Stepping, 95W
371-1913
[F]
X4194A-Z
[S]
594-3934
2.8GHz, Dual Core, Socket 1207, 95W AMD Opteron 2220 F3 Option
n/a
n/a
2.8 GHz CPU, Opteron 2220 Dual Core, F3 Stepping, 95W
n/a
n/a
371-1911
[F]
1.8GHz AMD Dual Core Opteron 2210, F2 Stepping, 95W
n/a
n/a
371-1913
[F]
2.6GHz AMD Dual Core Opteron 2218, F2 Stepping, 95W
n/a
n/a
371-1981
[F]
2.2GHz AMD Dual Core Opteron 2214, F2 Stepping, 95W
n/a
NOTE: Heatsink is not included with the Opteron FRU.NOTE: Opteron FRU includes alcohol cleaner and thermal grease.
Cables
Option #
Manufacturing
Description
Previous
n/a
371-1588 [C]
SLI Flexible Cable for nVIDIA Graphics Accelerator Cards
n/a
n/a
371-2349 [C]
Ultra 40 M2 SAS Cable Kit
n/a
Remote LED Cable, 212mm, 422755900007 n/a
HDD4-7 SAS Cable, Orange, 400mm, 422755900006 n/a
HDD0-3 SAS Cable, Red, 215mm, 422755900005 n/a
n/a
n/a
Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm)
n/a
Disk Backplane
Option #
Manufacturing
Description
Previous
X4213A
[S]
373-0020
[F]
Disk Backplane
n/a
n/a
F373-0020
Disk Backplane
n/a
n/a
Ultra 40 M2 Disk Backplane SATA Data Cable 422755900001 (155mm) n/a
Ultra 25/45 Disk Backplane SAS/SATA Data Cable 422739300001 (75mm) n/a
Ultra 40 Disk Backplane SATA Data Cable 422740700002 (230 mm) n/a
Disks
Option #
Manufacturing
Description
Previous
XRB-ST1CE-500G7K
540-6645 [C]
500GB - 7200RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HDS725050KLA360 [HDS7250SASUN500G] n/a
Seagate ST3500630NS [ST35000NSSUN500G] n/a
Hitachi HUA721050KLA330 [HUA7250SBSUN500G] n/a
n/a
XRB-SS1CE-146G15KZ
[S]
540-7088 [C]
146GB - 15000RPM SAS, Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST3146855SS [ST314655SSUN146G] n/a
Seagate ST3146854SS [ST314654SSUN146G] n/a
Hitachi HUS153014VLS300 [HUS1514SBSUN146G] n/a
n/a
XRB-SS1CE-300G15K
[S]
540-7155 [C]
300GB - 15K RPM SAS, Disk Assembly with 1 bracket, and 1 of the following disks
n/a
Seagate ST3300655SS [ST330055SSUN300G] n/a
Hitachi HUS153030VLS300 [HUS1530SBSUN300G] n/a
n/a
XRB-ST1CE-160G7KZ
[S]
540-7112 [C]
160GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Hitachi HDT722516DLA380 [HDS7216SASUN160G] n/a
Seagate ST3160812AS [STA7216SASUN160G] n/a
Hitachi HDT721616PLA380 [HDS7216SBSUN160G] n/a
n/a
XRB-ST1CE-250G7K
[S]
540-6485 [C]
250GB - 7200 RPM SATA, Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST3250824AS [STN7225SASUN250G] n/a
Hitachi HDT722525DLA380 [HDS7225SBSUN250G] n/a
Hitachi HDT725025VLA380 [HDS7225SCSUN250G] n/a
Seagate ST3250820NS [ST32500NSSUN250G] n/a
n/a
XRB-ST1CE-750G7K
[S]
540-7238 [C]
750GB - 7200 RPM SATA Disk Assembly with 1 bracket and 1 of the following disks:
n/a
Seagate ST3750640NS [ST37500NSSUN750G] n/a
Hitachi HUA721075KLA330 [HUA7275SASUN750G] n/a
n/a
NOTE: SAS Disks require SAS controller 371-2253 or 371-3255. Mixing of SAS and SATA disks is not supported.
Ethernet
Option #
Manufacturing
Description
Previous
X7280A-2
[S]
371-0905
[C]
PCI Express Dual Gigabit Ethernet UTP
n/a
X7281A-2
[S]
7056733
[C]
PCI Express Dual Gigabit Ethernet MMF
371-0904
[C]
X7285A
[S]
371-0911
[C]
Low Profile PCI-X Dual Gigabit Ethernet UTP
n/a
X7286A
[S]
371-0912
[C]
Low Profile PCI-X Single Gigabit Ethernet MMF
n/a
n/a
371-0904
[C]
PCI Express Dual Gigabit Ethernet MMF
n/a
Fan
Option #
Manufacturing
Description
Previous
n/a
310-0108 [C]
CPU Fan/Heatsink Kit
n/a
n/a
371-0703 [C]
3-Fan Tray
n/a
n/a
371-2329 [C]
Memory Cooler Kit
n/a
n/a
373-0019 [C]
Fan Board
n/a
Motherboard J16 to Fan Board Cable 422739300002 n/a
Graphics
Option #
Manufacturing
Description
Previous
X4083A-Z
[S]
371-2963
[C]
NVIDIA Quadro FX4600 High-end 3D Graphics Accelerator
n/a
X4084A-Z
[S]
371-2964
[C]
NVIDIA Quadro FX5600 Ultra High-end 3D Graphics Accelerator
n/a
X4100A-Z
[S]
371-3990
[C]
NVIDIA Quadro FX370 Graphics Accelerator
n/a
X4128A-Z
[S]
371-3624
[C]
NVIDIA Quadro FX3700 Graphics Accelerator
n/a
X4129A-Z
[S]
371-3625
[C]
NVIDIA Quadro FX1700 Graphics Accelerator
n/a
X4130A-Z
[S]
371-3626
[C]
NVIDIA Quadro FX570 Graphics Accelerator
n/a
X4172A
[S]
371-1777
[C]
Quadro FX5500 High-end 3D Graphics Accelerator
n/a
X4173A
[S]
371-1778
[C]
NVIDIA Quadro G-Sync
n/a
X4183A-Z
[S]
371-1803
[C]
NVIDIA Quadro NVS285 DDR2 Professional 2D Graphics Accelerator
n/a
X4184A-Z
[S]
371-1802
[C]
NVIDIA Quadro FX560 Entry 3D Graphics Accelerator
n/a
X4185A-Z
[S]
371-1801
[C]
NVIDIA Quadro FX1500 Midrange 3D Graphics Accelerator
n/a
X4186A-Z
[S]
371-1800
[C]
NVIDIA Quadro FX3500 Ultra High-end 3D Graphics Accelerator
n/a
Memory
Option #
Manufacturing
Description
Previous
X5288A-Z
4GB (2 × 2GB) Memory Option
540-7062 [C]
Qty 2 - 2GB DIMMs (4GB Memory Assembly)
n/a
2GB Registered ECC DDR2-667/PC2-5300 DIMM n/a
X5287A-Z
[S]
2GB (2 × 1GB) Memory Option
540-7061 [C]
Qty 2 - 1GB DIMMs (2GB Memory Assembly)
n/a
1GB Registered ECC DDR2-667/PC2-5300 DIMM n/a
X5289A-Z
[S]
8GB (2 × 4GB) Memory Option
540-7063 [C]
Qty 2 - 4GB DIMMs (8GB Memory Assembly)
n/a
4GB Registered ECC DDR2-667/PC5300 DIMM n/a
Power
Option #
Manufacturing
Description
Previous
n/a
300-1800
[F]
1000 Watt AC Input Power Supply
n/a
n/a
300-2127
[F]
1000 Watt AC Input Power Supply
n/a
Removable Media
Option #
Manufacturing
Description
Previous
X8117A
[S]
371-2304
[C]
8x DVD-Writer / 24x CD-Writer
n/a
n/a
n/a
n/a
n/a
X8119A
[S]
371-2305
[C]
8x DVD-ROM / 24x CD-ROM
n/a
n/a
n/a
n/a
n/a
n/a
371-1355
DVD Filler Panel
n/a
SCSI
Option #
Manufacturing
Description
Previous
SG-PCIE8SAS-Z
371-3255
[C]
PCI Express 8-Port SAS Controller
371-2253
[C]
SG-XPCIE2SCSIU320Z
[S]
7050790
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
375-3357
[C]
SGXPCI1SCSILM320-Z
[S]
375-3366
[C]
PCI/PCI-X Single Ultra320 SCSI Adapter
n/a
SGXPCI2SCSILM320-Z
[S]
7050788
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
375-3365
2
[C]
n/a
371-2253
[C]
PCI Express 8-Port SAS Controller
n/a
n/a
375-3357
[C]
Dual-Channel Ultra320 LVD SCSI PCI Express Adapter
n/a
n/a
375-3365
1
[C]
PCI/PCI-X Dual Ultra320 SCSI Adapter
n/a
n/a
7064052
[C]
PCI Express 8-Port SAS Controller
371-3255
[C]
+
1 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .2 Ultra320 SCSI HBA (375-3365-01 REV 52) FCode 1.13 fails to work on all Sun Platforms, replace it with 375-3365-02 REV 50.
See Problem article 1013105.1 .
System Board
Option #
Manufacturing
Description
Previous
n/a
375-3476 3
[F]
Motherboard
n/a
3V Lithium Coin Cell Battery
n/a
3 Motherboard FRU includes alcohol cleaner and thermal grease.
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
Table Legend
[F] = Field Replaceable Unit (FRU)
[C] = Customer Replaceable Unit (CRU)
[A] = Alternate, can be used in system; wasn't used during production
[S] = Supported, but can no longer be ordered with this system
[N] = No longer supported for this system
Price = Price this Part
NS = Not Shown
Code
Manufacturing Part#
Description

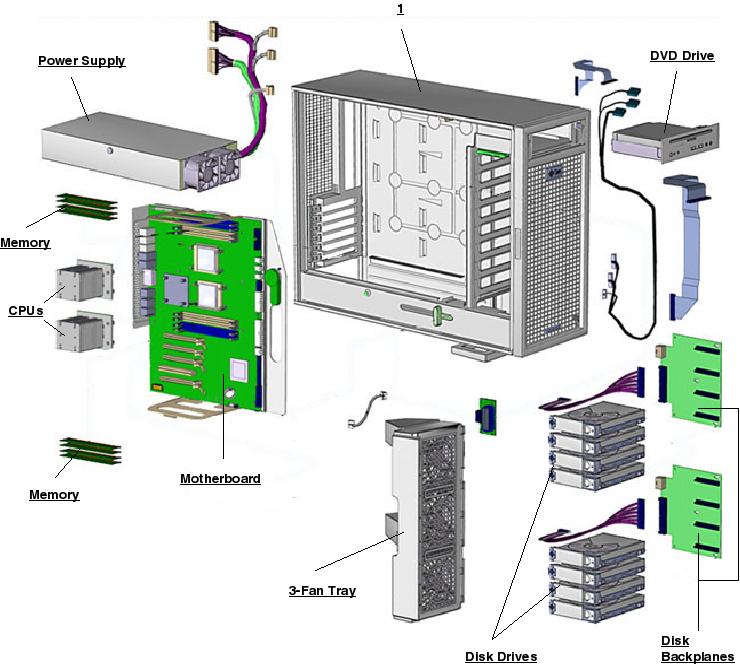

1
380-1524
Base Chassis Assembly
NS
NS
n/a
Disk 0-3 SAS Cable 422755900005
NS
n/a
Disk 4-7 SAS Cable 422755900006
NS
n/a
LED Cable 422755900007
NS
n/a
Upper Disk Bay Cover 34473930013
