Ultra 40 M2 (A83)

375-3476
0MB FRU w/o CPU with Mounting Tray

Ultra 40 M2 Codename: Stuttgart

Notes

1. The minimum Solaris operating system is Solaris 10 1/06 x64.
2. Install the Fan/Heatsink with the Air Flow arrow facing the rear of the chassis.

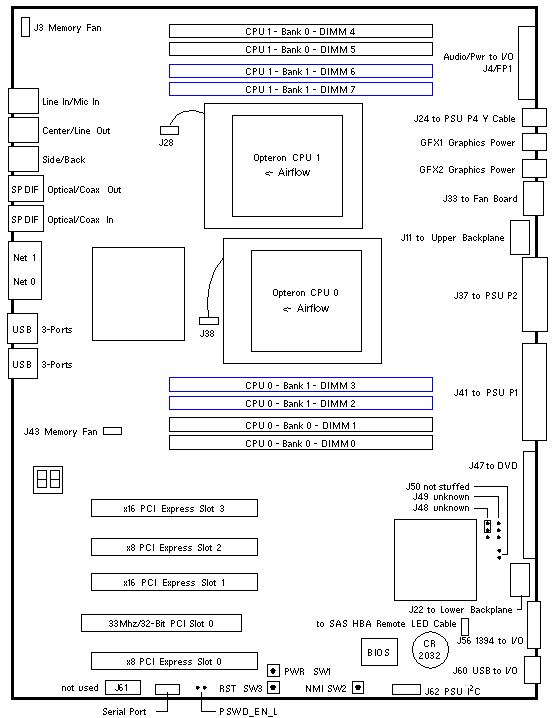

Memory Notes

1. Install the first CPU 0 memory pair in black slots DIMM 0 and DIMM 1.
2. Install the first CPU 1 memory pair in black slots DIMM 4 and DIMM 5.
3. Install the second CPU 0 memory pair in blue slots DIMM 2 and DIMM 3.
4. Install the second CPU 1 memory pair in blue slots DIMM 6 and DIMM 7.
5. The minimum requirement is memory in black slots DIMM 0 and DIMM 1.
6. The minimum memory requirement applies to Single and Dual CPU configurations.

References

1. Sun Ultra 40 M2 Workstation Documentation.
