Seagate ST3500630NS (500.0GB)

3 1/2" 7200 RPM   Serial ATA 3.0Gb/s

Option XTA-ST1CF-500G7K
Option XRB-ST1CE-500G7K
Option XTA-ST1NG-500G7K
Option XTA-ST1NJ-500G7K

390-0355
Barracuda ES

540-6635	540-6645	540-7195	540-7605
ST6140 FRU 1" Bracket 541-1406 XTA-ST1CF-500G7K	Spud Bracket FRU 1" Bracket 540-6562 XRB-ST1CE-500G7K	2500 Series FR Bracket 540-721 XTA-ST1NG-500G7	J4200/J4400 FRU Interposer 570-1181 Tray 570-1182 XTA-ST1NJ-500G7K See Notes

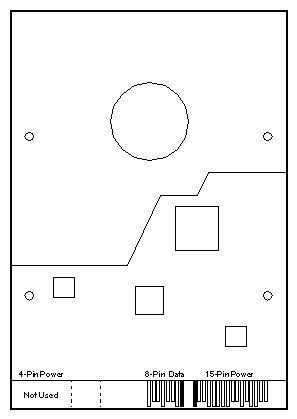

Bottom View

Notes

1. Drive 390-0355 was released and added to 540-6645 in June 2007. (WO_37111)
2. Drive 390-0355 was added to 540-6635 in September 2007. (WO_37814)
3. Drive 390-0355 was added to 540-7195 in March 2008. (WO_38855)
4. Assembly 540-7605 with 390-0355 was released in May 2008. (WO_39168)
5. Drive 390-0355 did not include a World-Wide-Name required for Multipathing.
   Drive 390-0355 was removed from 540-7605 in August 2009. (WO_40319)
6. Drive 390-0355-04 was added back to 540-7605 in April 2010. (WO_41799)
   Drive 390-0355-04 includes firmware 3AZB that supports Multipathing.
   Firmware 3AZB requires Common Array Manager 6.6.
7. The Seagate Model Number on the serial number label is ST3500630NS.
8. The Sun Model Number on the serial number label is ST35000NSSUN500G.
9. The Product in Identify Device data bytes 31-38 is ST35000NSSUN500G.
