Hitachi HUA721075KLA330 (750.0GB)

3 1/2" 7200 RPM Serial ATA 3.0Gb/s

<a href="../../Systems/SupportHeaders/DISK_Htchi_HUA721075KLA330.html">Hmm, you are using a very old browser. Click here to go directly to included content.</a>

See Sun Fire X4540 Notes below

Options XRB-ST1CE-750G7K
Options XTC-ST1CF-750G7KZ
Options XRA-ST1CH-750G7KZ
Options XTA-ST1NG-750G7K
Options XTA-ST1NJ-750G7K

390-0379
GeminiK

540-7244	540-7238	540-7245	540-7556	540-7561
X4500/J4500 FRU 1" Bracket 541-0456 XRA-ST1CH-750G7KZ See Sun Fire X4540 Notes	Spud Bracket FRU 1" Bracket 540-6562 XRB-ST1CE-750G7K	6140/6540 FRU 1" Bracket 541-1406 XTC-ST1CF-750G7KZ	J4200/J4400 FRU Interposer 570-1181 Tray 570-1182 XTA-ST1NJ-750G7K	2500 Series FRU Bracket 540-7216 XTA-ST1NG-750G7K

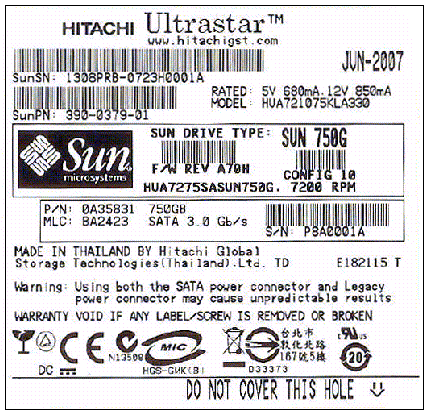

Top Cover Label

Notes

Drive 390-0379 was released in October 2007. (WO_38004)
Assembly 540-7244 with 390-0379 was released in October 2007. (WO_37692)
Drive 390-0379 was added to 540-7245 in November 2007. (WO_38241)
Drive 390-0379 was added to 540-7238 in December 2007. (WO_38348)
Drive 390-0379 was added to 540-7561 in January 2008. (WO_38544)
Assembly 540-7556 with 390-0379 was released in May 2008. (WO_39268)
The Hitachi Model Number on the serial number label is HUA721075KLA330.
The Sun Model Number on the serial number label is HUA7275SASUN750G.
The Product in Identify Device data bytes 31-38 is HUA7275SASUN750G.

Sun Fire X4540 Notes

750GB assembly 540-7244 is supported on Sun Fire X4540 when it is a migration from Sun Fire X4500.
See Sun Fire X4500-to-X4540 Migration User's Guide, 820-6559.
