Seagate ST3750640NS (750.0GB)

3 1/2" 7200 RPM   Serial ATA 3.0Gb/s

Option XTA-ST1NG-750G7K
Option XRB-ST1CE-750G7K
Option XTC-ST1CF-750G7KZ
Option XTA-ST1NJ-750G7K

390-0356
Barracuda ES

540-7238	540-7245	540-7556	540-7561
Spud Bracket FRU 1" Bracket 540-6562 XRB-ST1CE-750G7K	ST6140 FRU 1" Bracket 541-1406 XTC-ST1CF-750G7KZ	J4200/J4400 FRU Interposer 570-1181 Tray 570-1182 XTA-ST1NJ-750G7K See Notes	ST2500 Series FRU Bracket 541-7216 XTA-ST1NG-750G7K

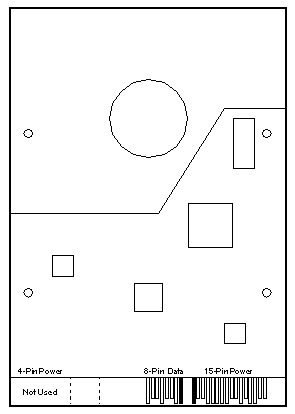

Bottom View

Notes

1. Drive 390-0356 was released and added to assembly 540-7238 in May 2007. (WO_36820)
2. Assembly 540-7245 with 390-0356 as released in May 2007. (WO_35630)
3. Assembly 540-7561 with 390-0356 as released in October 2007. (WO_38017)
4. Assembly 540-7556 with 390-0356 was released in May 2008. (WO_39168)
5. Drive 390-0356 did not include a World-Wide-Name required for Multipathing.
   Drive 390-0356 was removed from 540-7556 in August 2009. (WO_40319)
6. Drive 390-0356-04 was added back to 540-7556 in April 2010. (WO_41799)
   Drive 390-0356-04 includes firmware 3AZB that supports Multipathing.
   Firmware 3AZB requires Common Array Manager 6.6.
7. The Seagate Model Number on the serial number label is ST3750640NS.
8. The Sun Model Number on the serial number label is ST37500NSSUN750G.
9. The Product in Identify Device data bytes 31-38 is ST37500NSSUN750G.
